Home >> Pontiac >> 1998 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Tank >> C2

C2

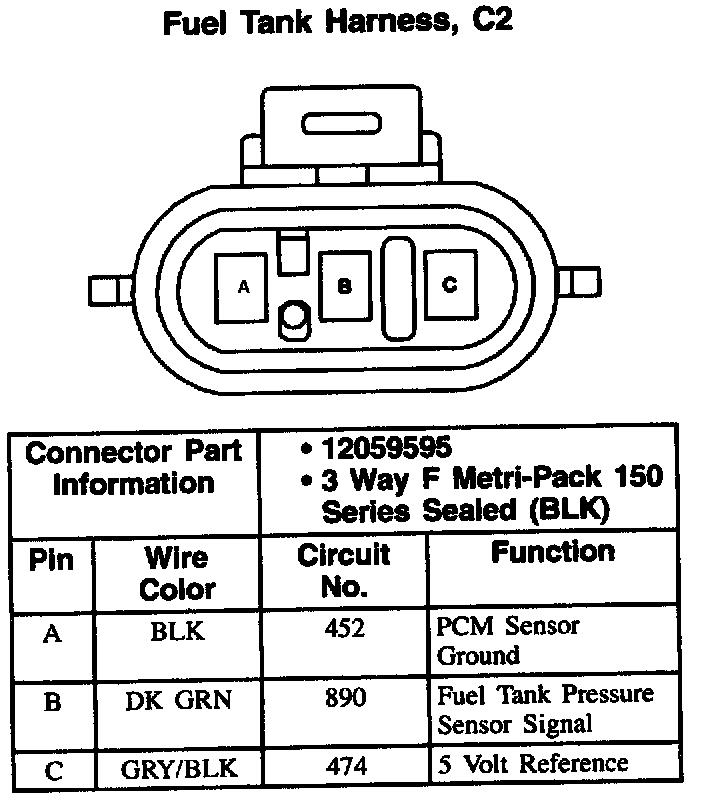

Fuel Tank Harness: C2:
