Door Switch

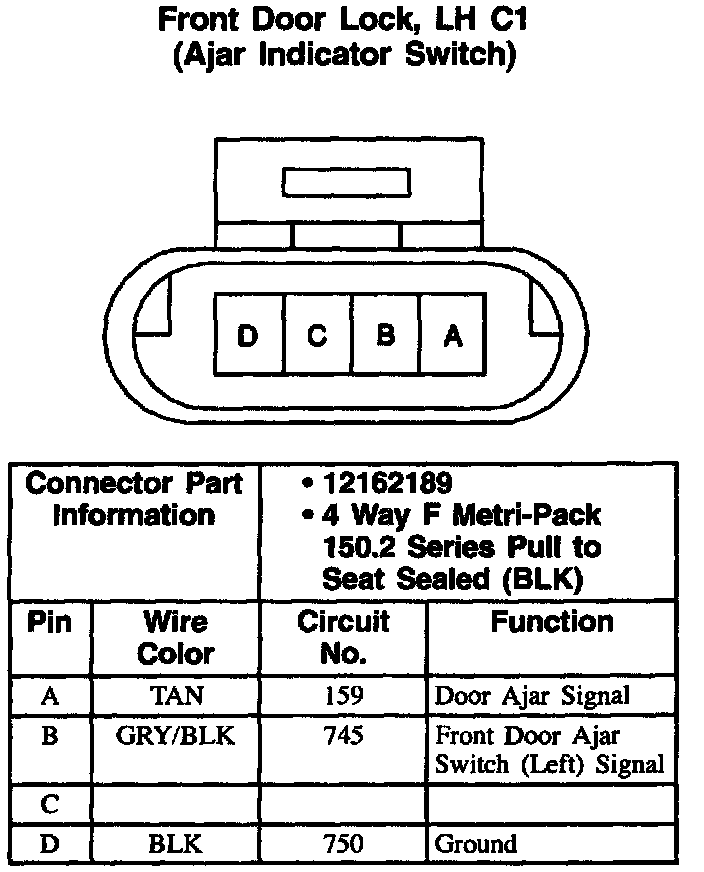

Front Door Lock, LH: C1 (Ajar Indicator Switch):



Front Door Lock, RH: C1 (Ajar Indicator Switch):

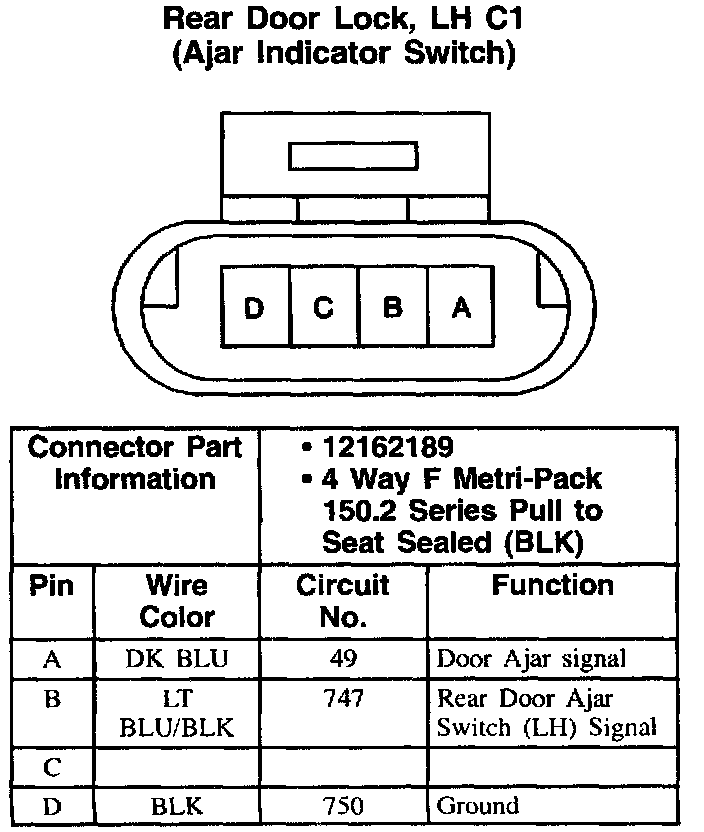

Rear Door Lock, LH: C1 (Ajar Indicator Switch):

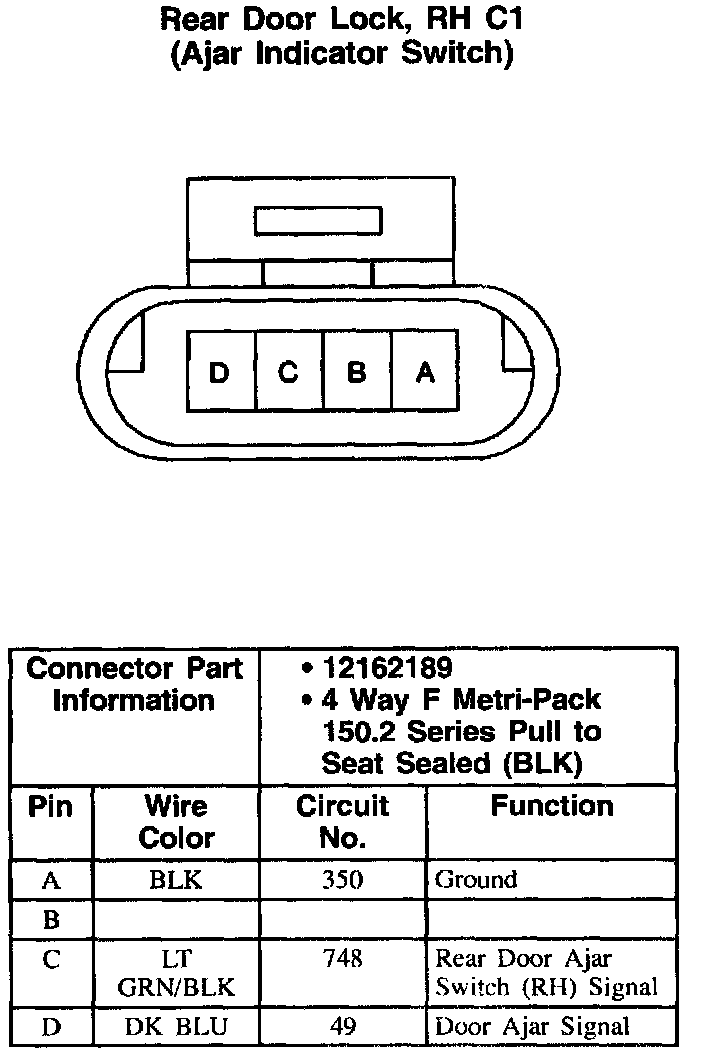

Rear Door Lock, RH: C1 (Ajar Indicator Switch):
