Pontiac
>>
1998
>>
Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Right Front Door Lock Actuator
Right Front Door Lock Actuator

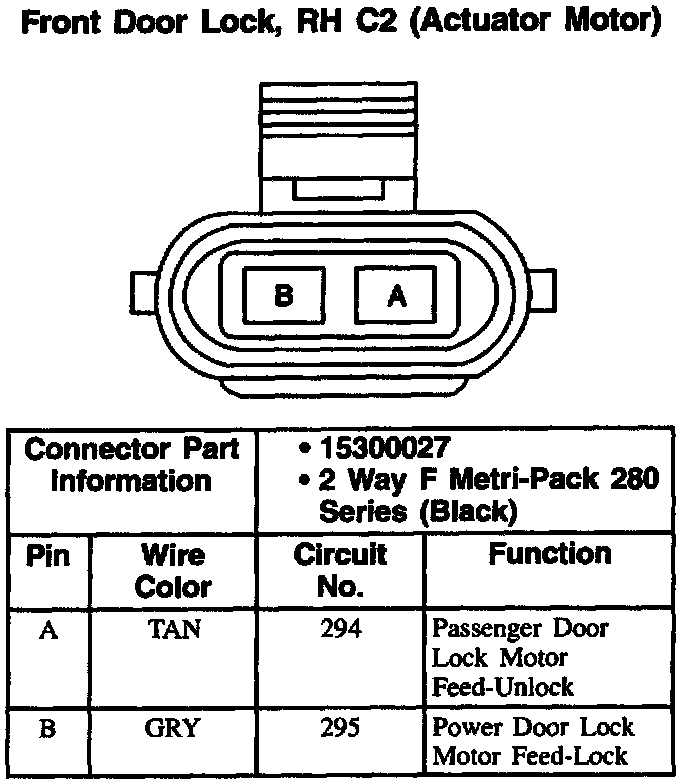

Front Door Lock, RH: C2 (Actuator Motor):
