Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
System Diagram
System Diagram

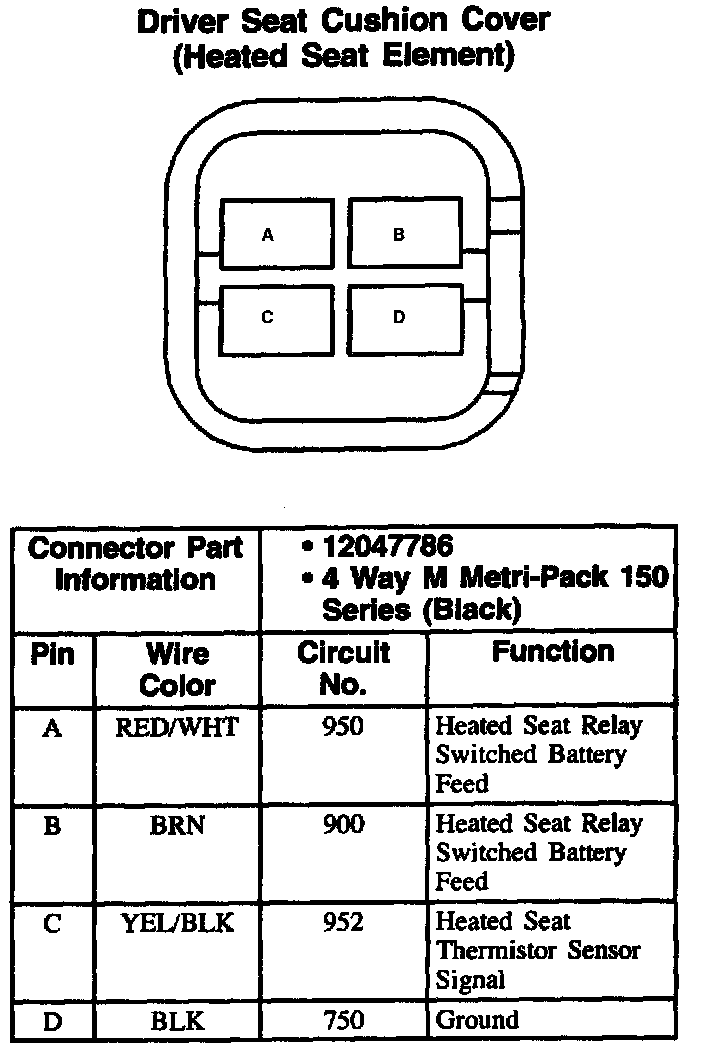

Driver Seat Cushion Cover (Heated Seat Element):
