Electrical Diagrams

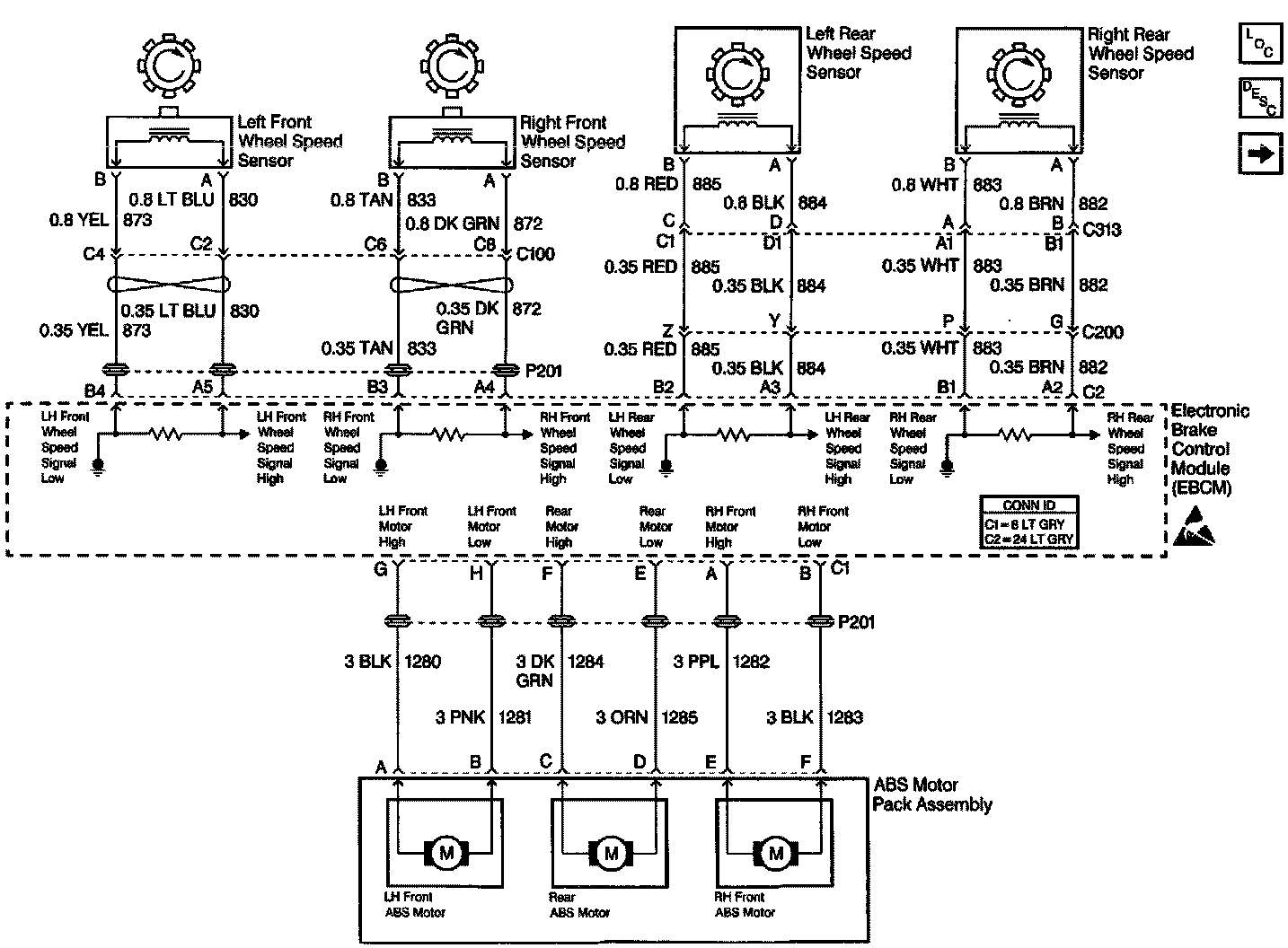

Antilock Brake Systems Motor Pack And Speed Sensors:

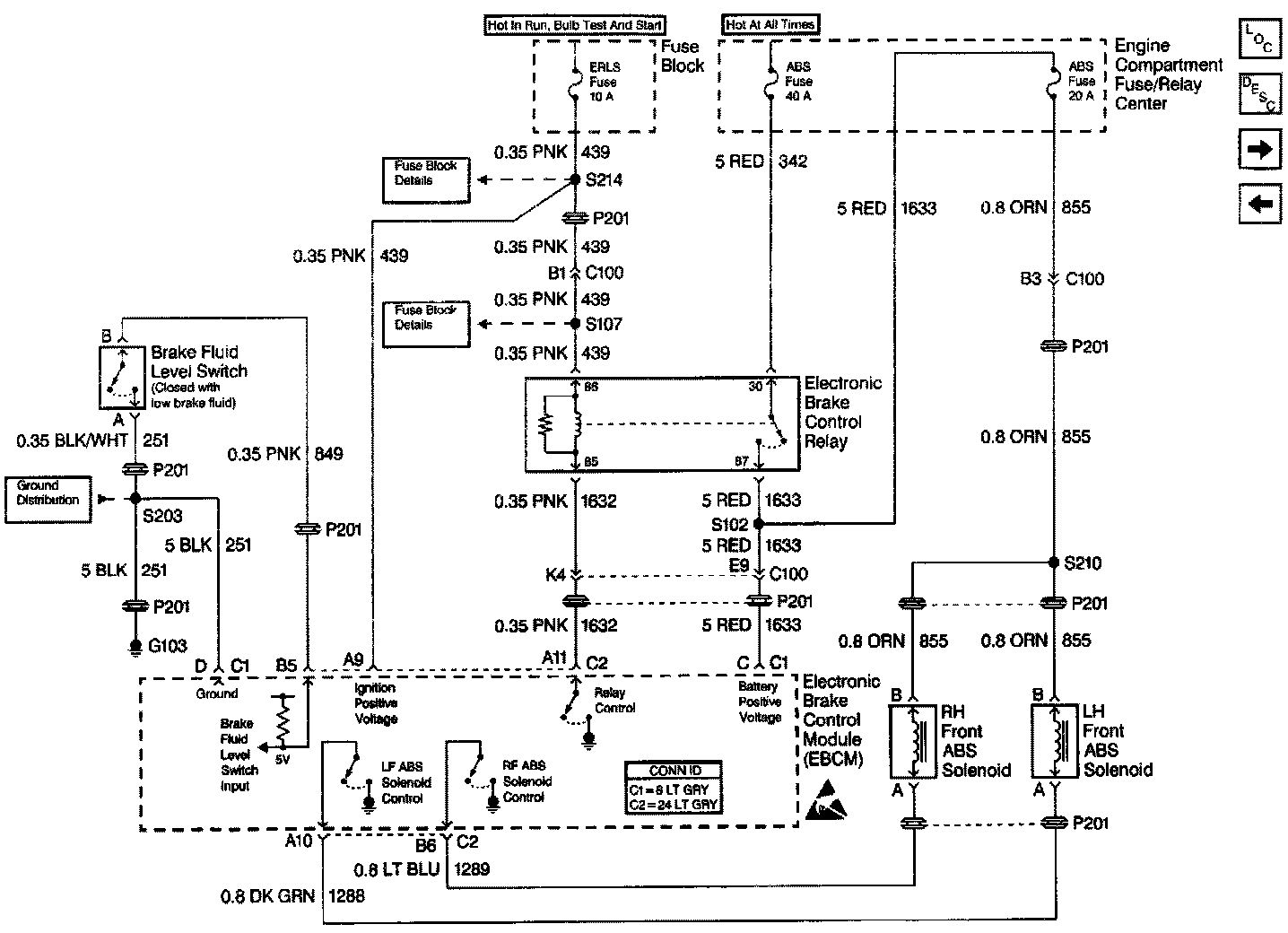

Antilock Brakes System: Relay And Solenoids:

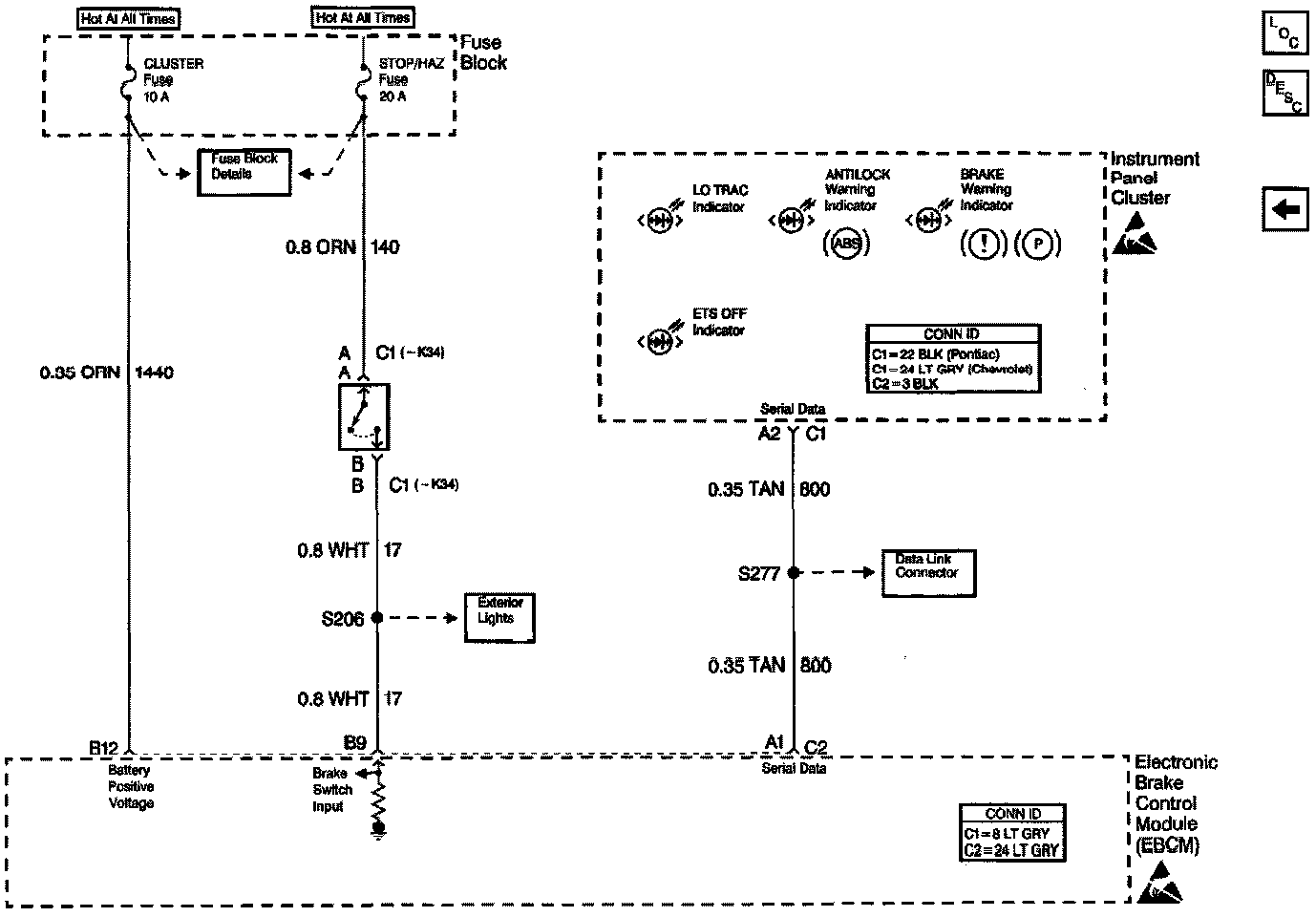

Antilock Brake Systems: IPC, EBCM And Brake Switch:
