Dash Panel Extension

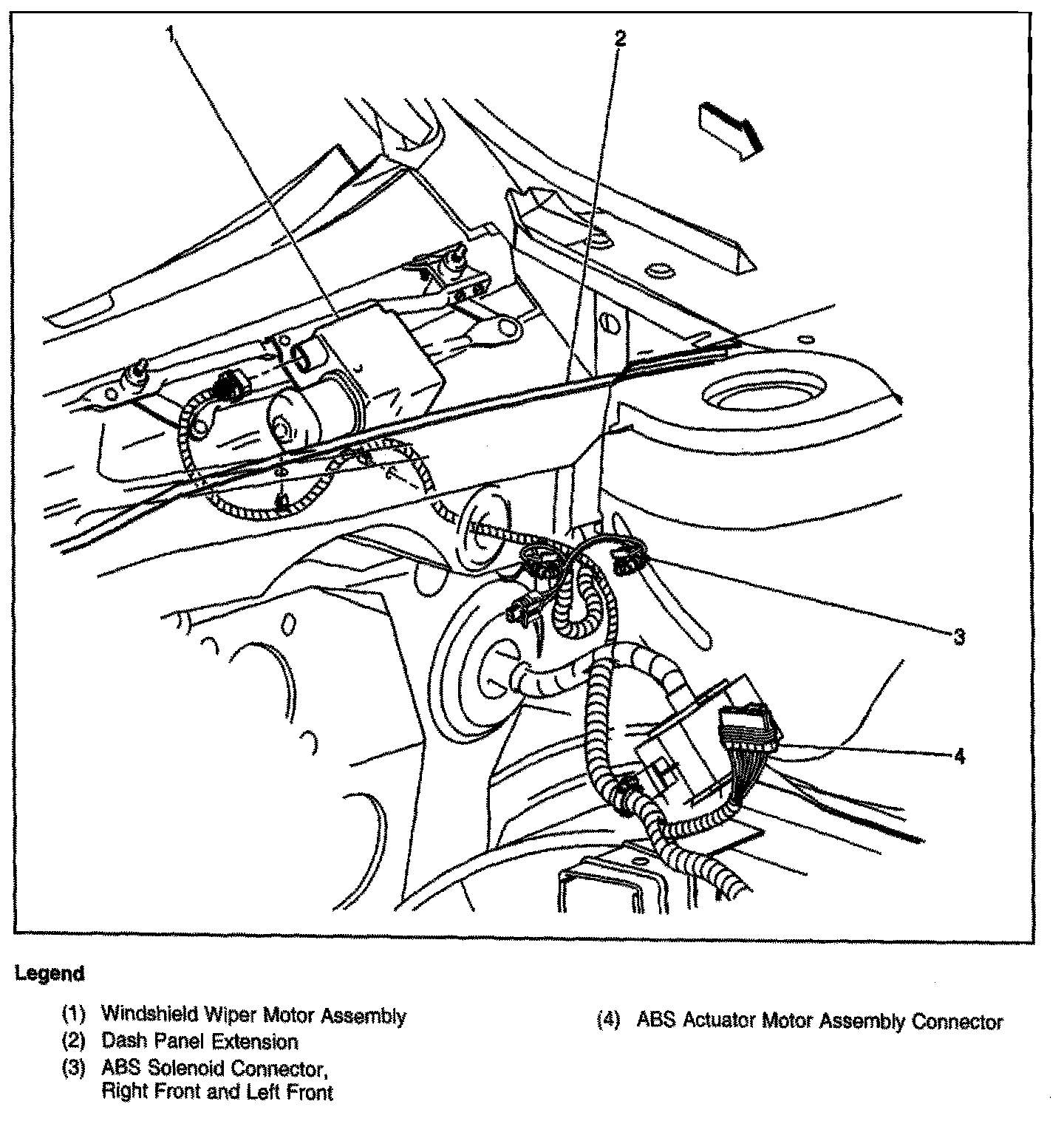

LF And RF ABS Solenoid And ABS Actuator Motor Assembly Connectors:

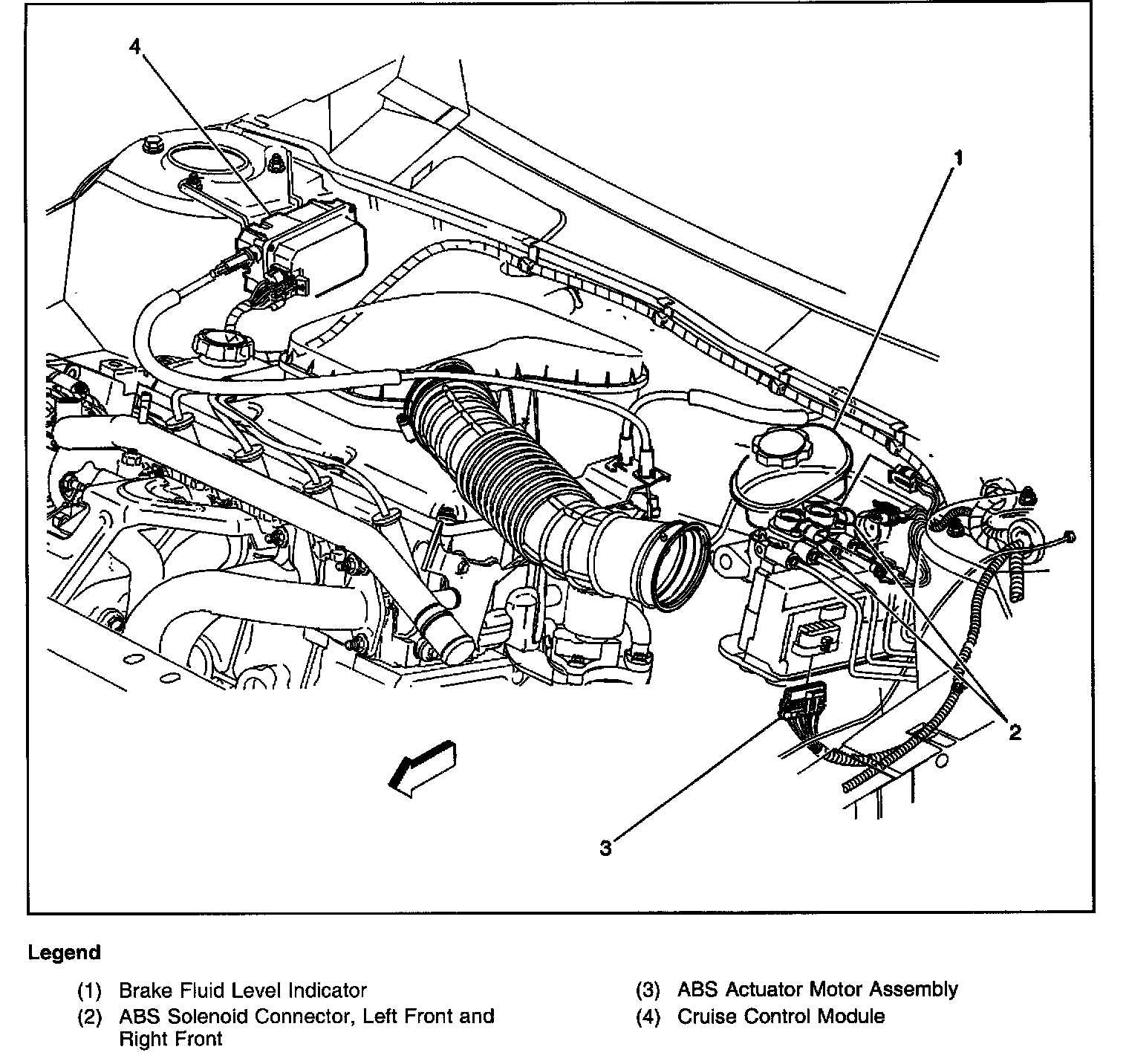

Brake Fluid Level Indicator And Cruise Control Module:
