Pontiac
>>
1998
>>
Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Right Rear Door Lock Actuator
Right Rear Door Lock Actuator

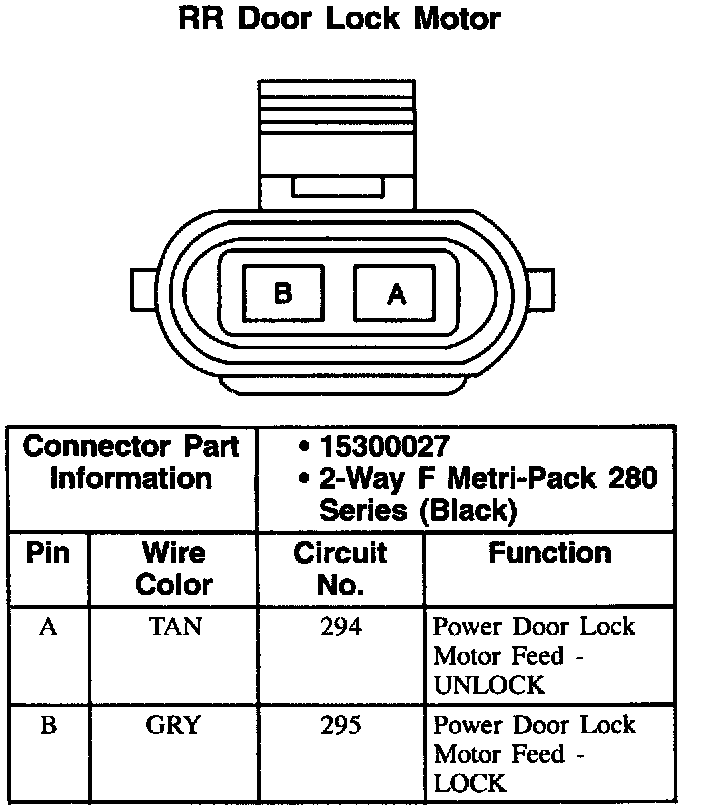

RR Door Lock Motor:
