4T40-E Automatic Transaxle

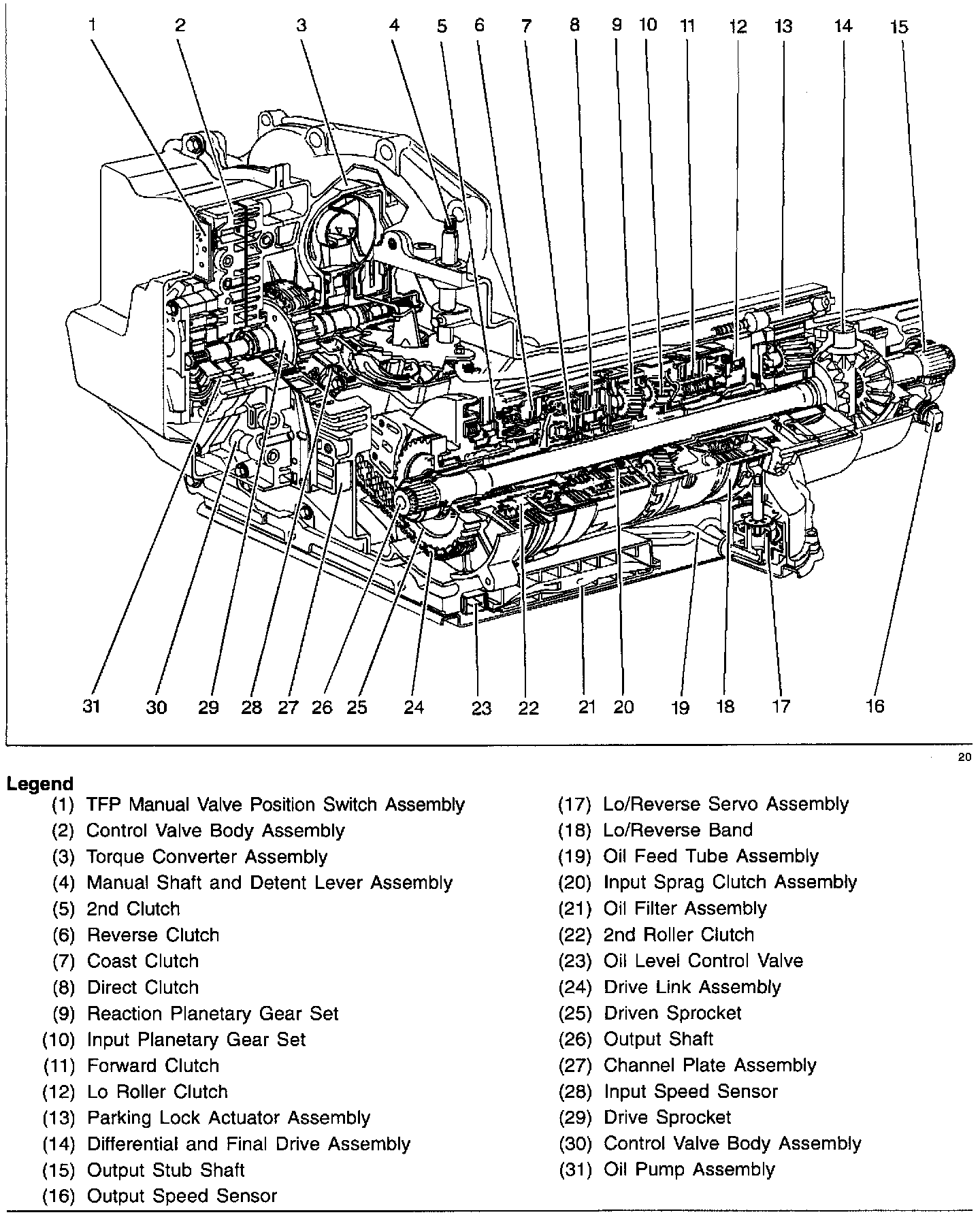

COMPONENT LOCATOR VIEW

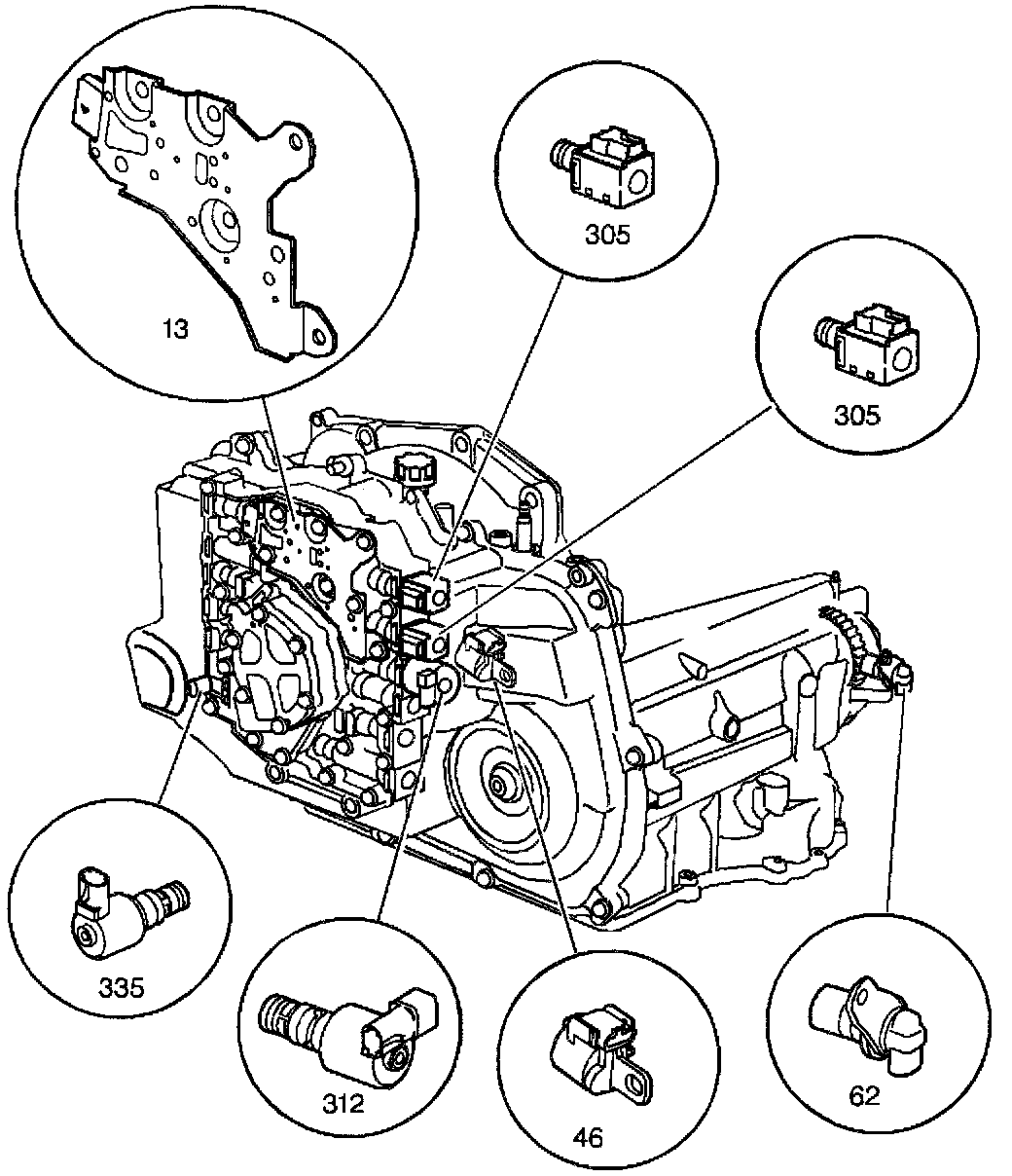

ELECTRONIC COMPONENT LOCATIONS

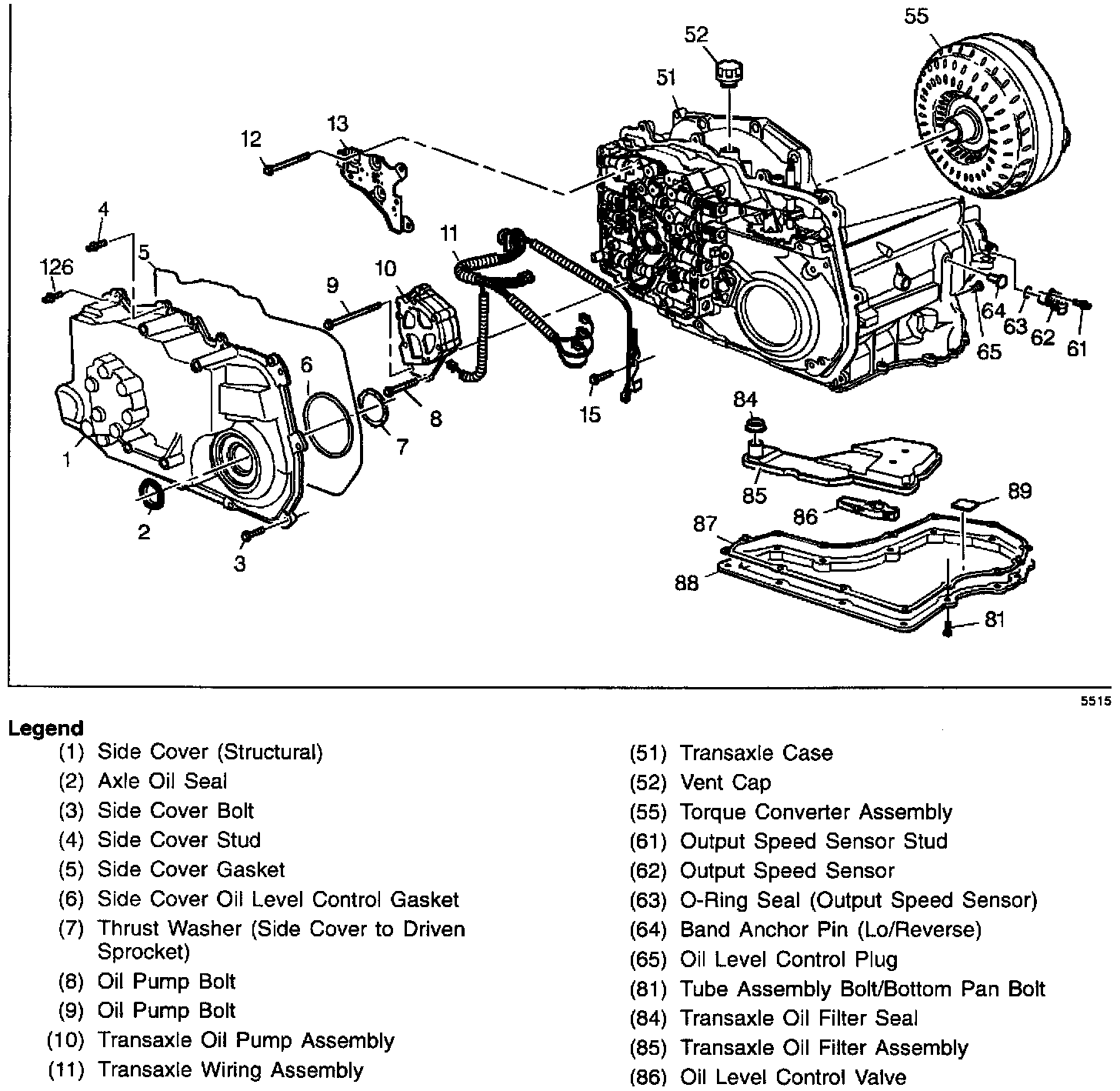

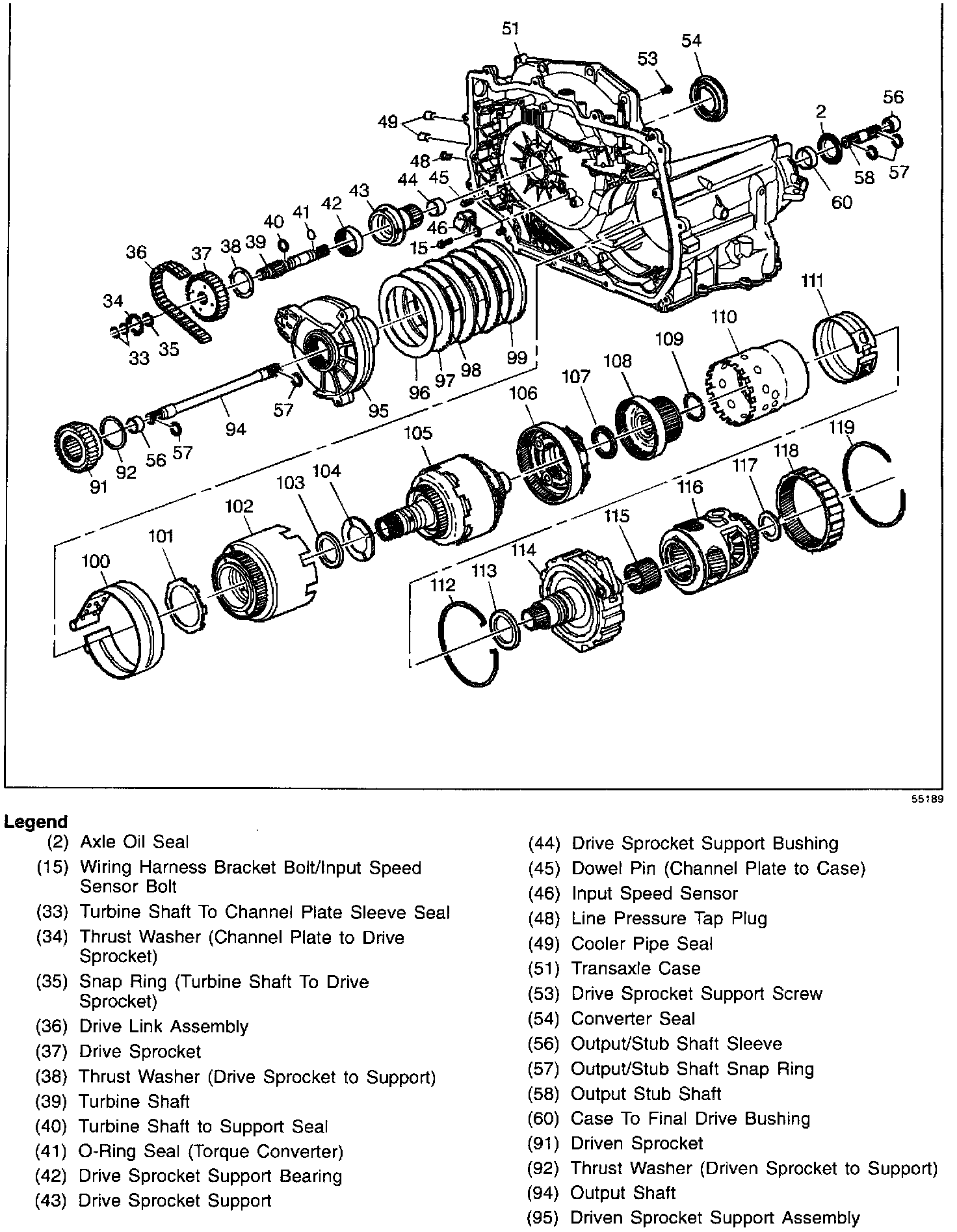

CASE AND ASSOCIATED PARTS 1 OF 3

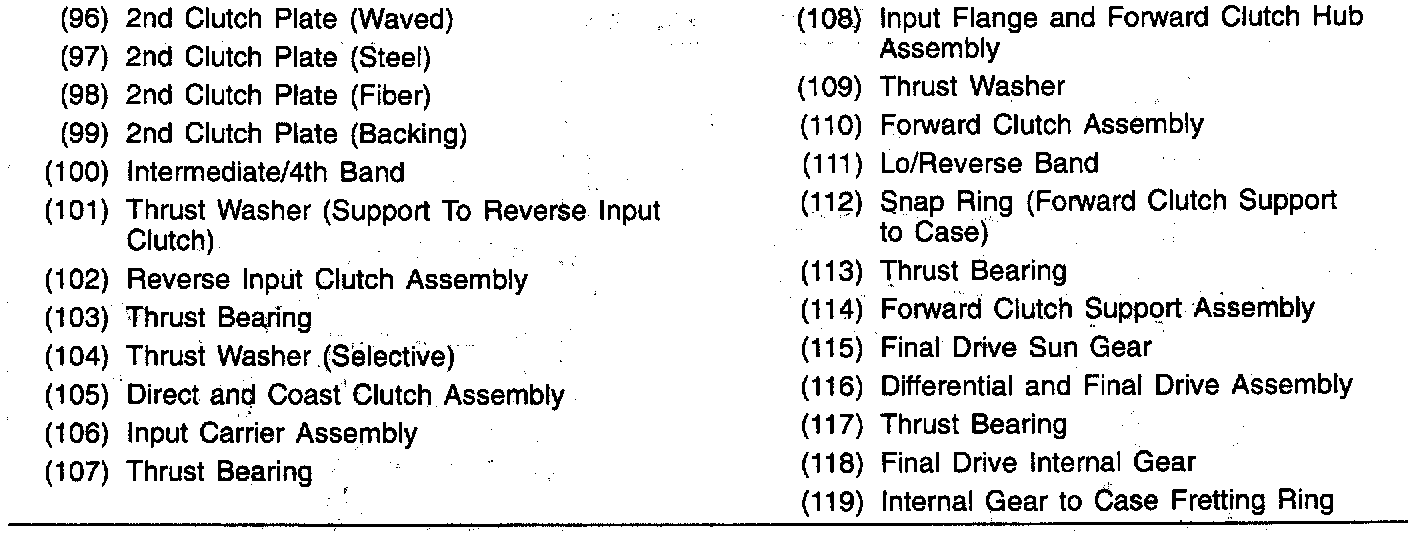

CASE AND ASSOCIATED PARTS 2 OF 3
CASE AND ASSOCIATED PARTS 3 OF 3

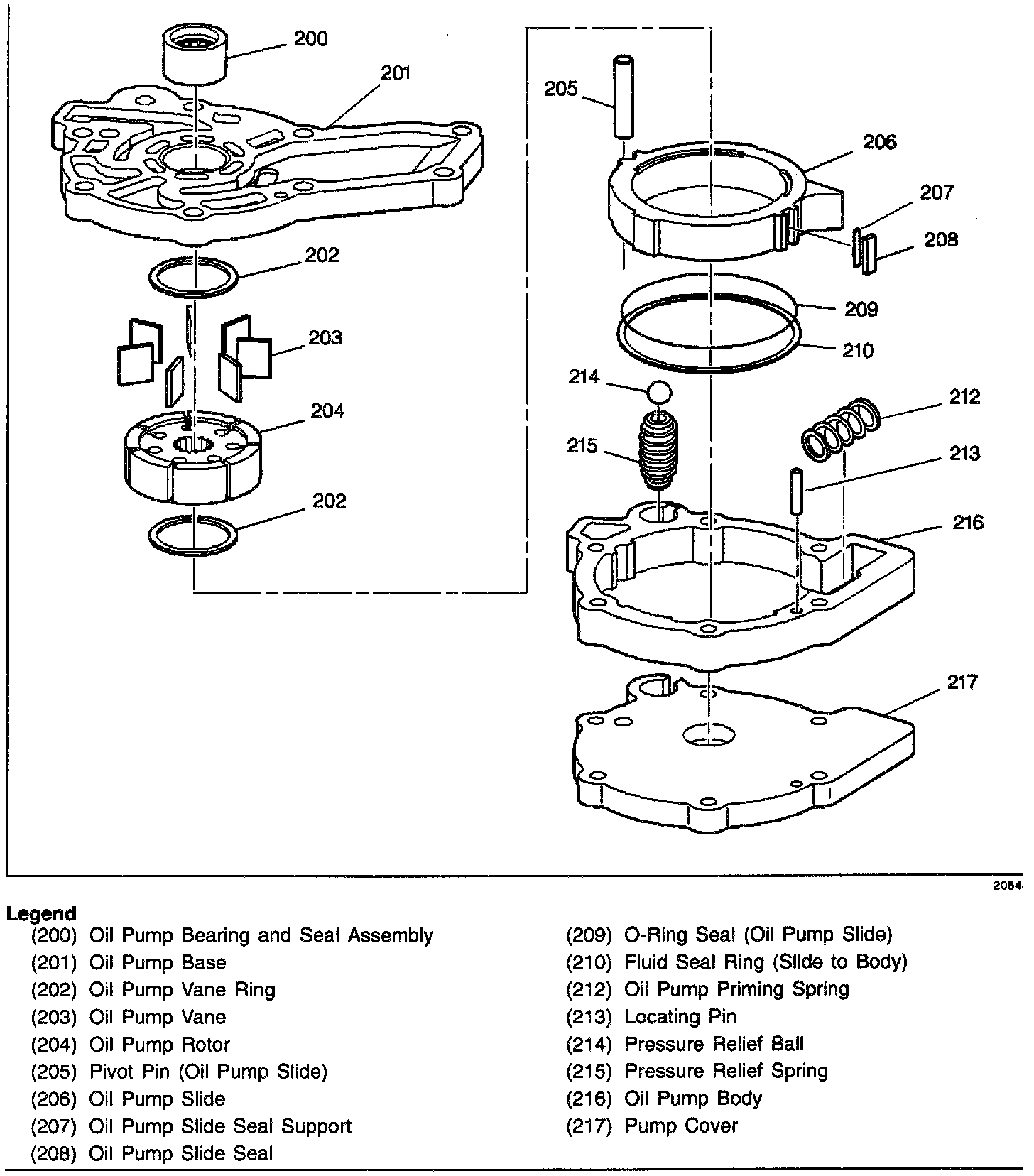

OIL PUMP ASSEMBLY
CONTROL VALVE BODY ASSEMBLY

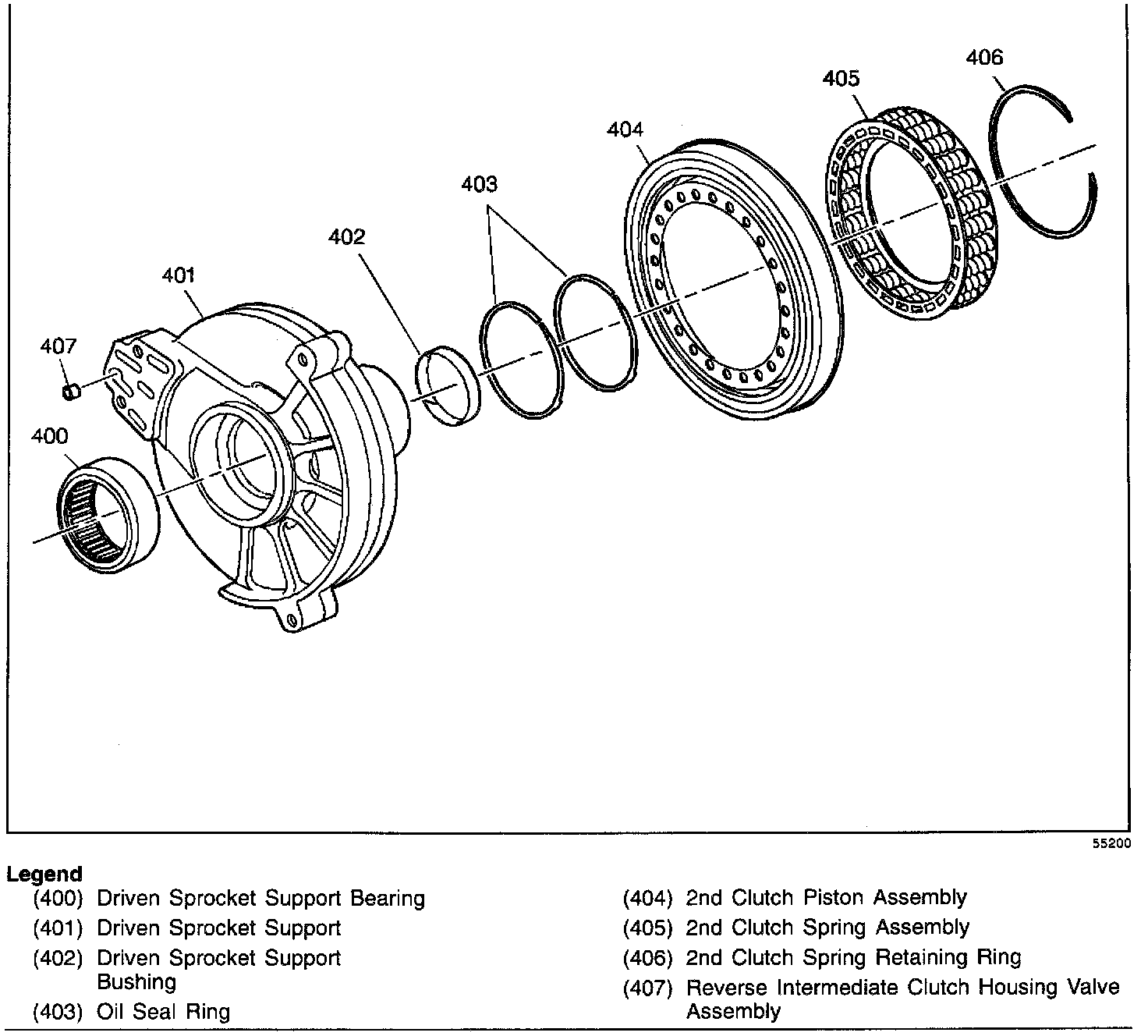

DRIVEN SPROCKET SUPPORT ASSEMBLY AND 2ND CLUTCH

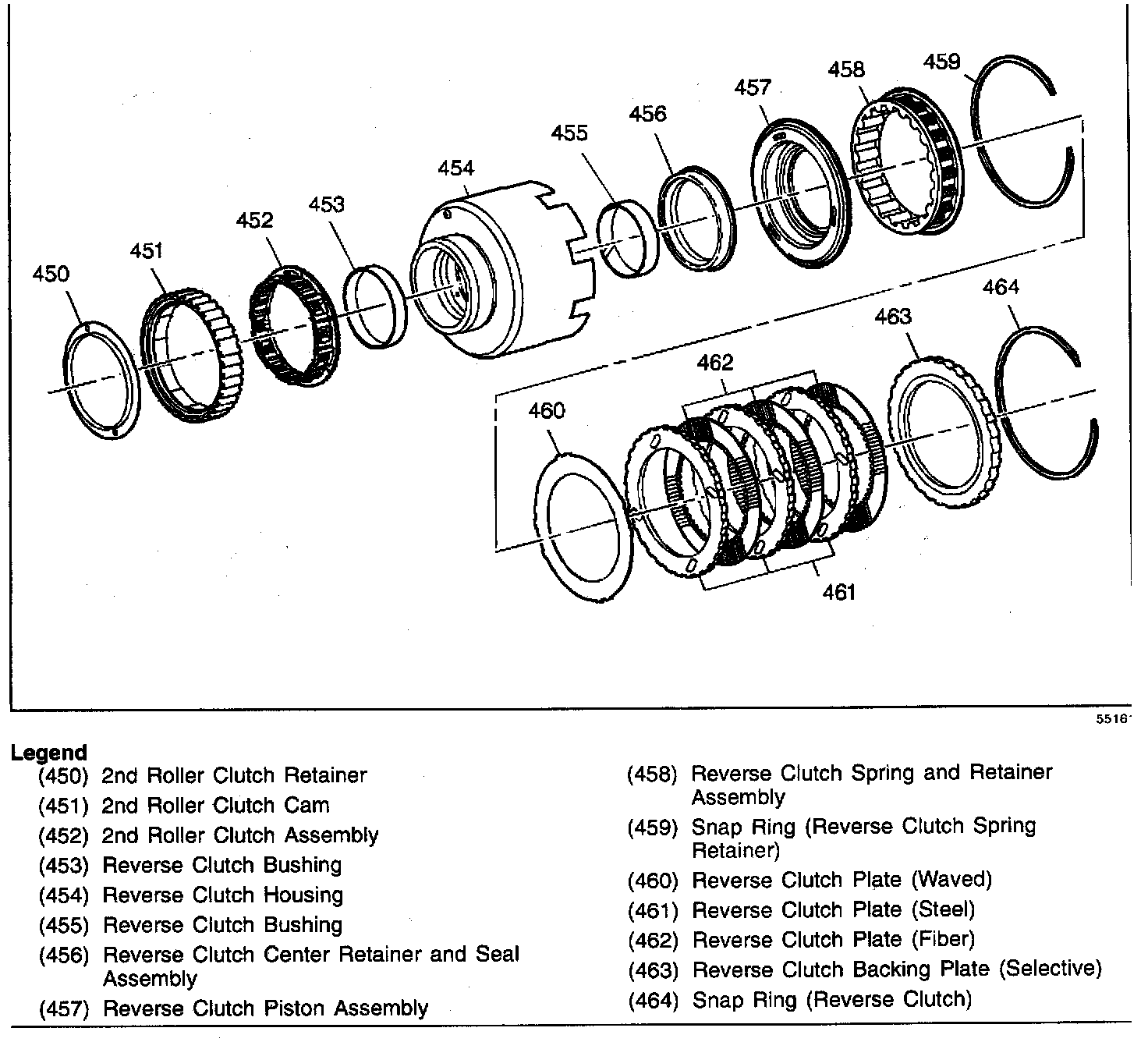

REVERSE INPUT CLUTCH ASSEMBLY

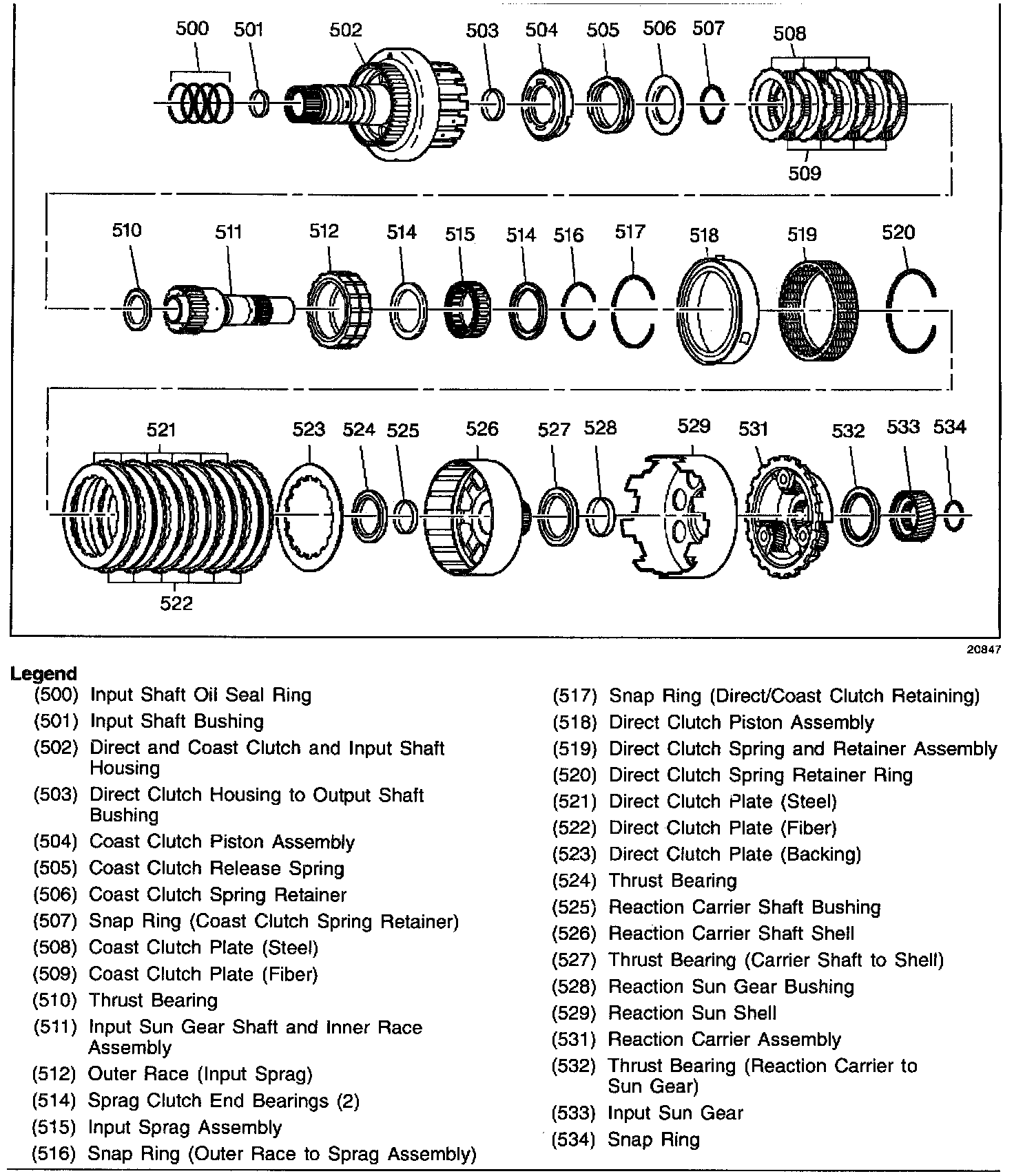

DIRECT AND COAST CLUTCH ASSEMBLIES

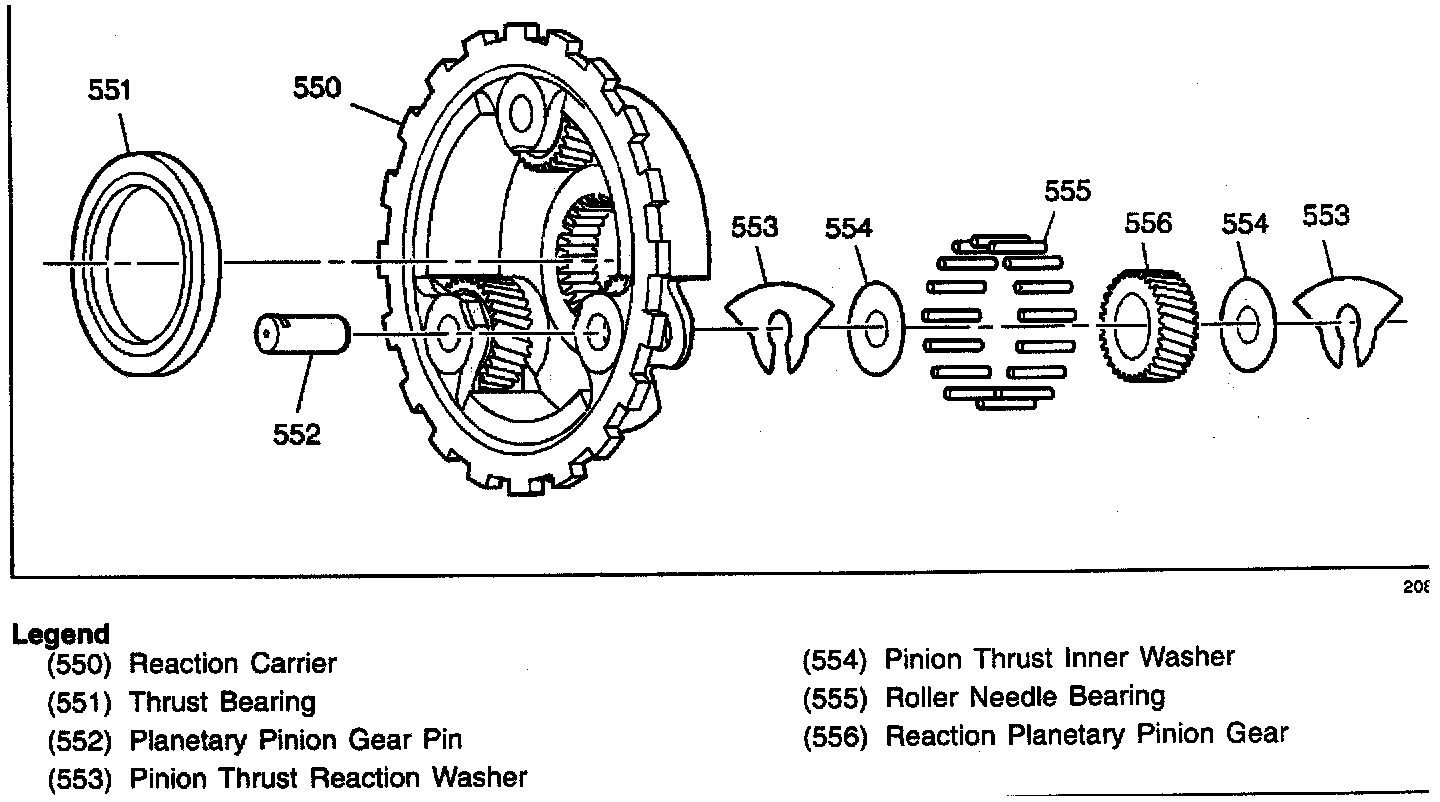

REACTION CARRIER ASSEMBLY

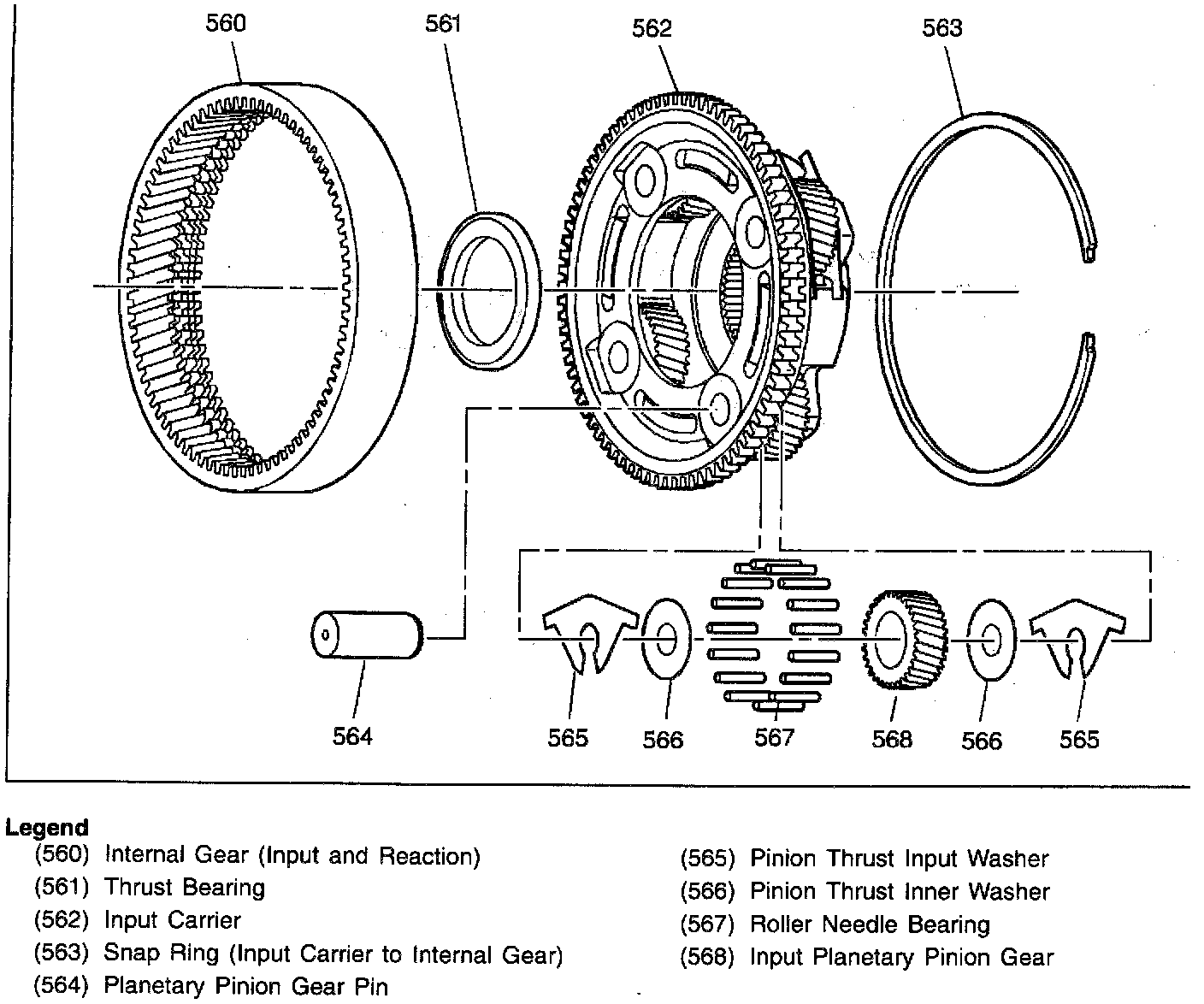

INPUT CARRIER ASSEMBLY
INPUT INTERNAL GEAR AND FORWARD CLUTCH HUB
FORWARD CLUTCH ASSEMBLY
FORWARD CLUTCH SUPPORT ASSEMBLY
FINAL DRIVE AND DIFFERENTIAL ASSEMBLY

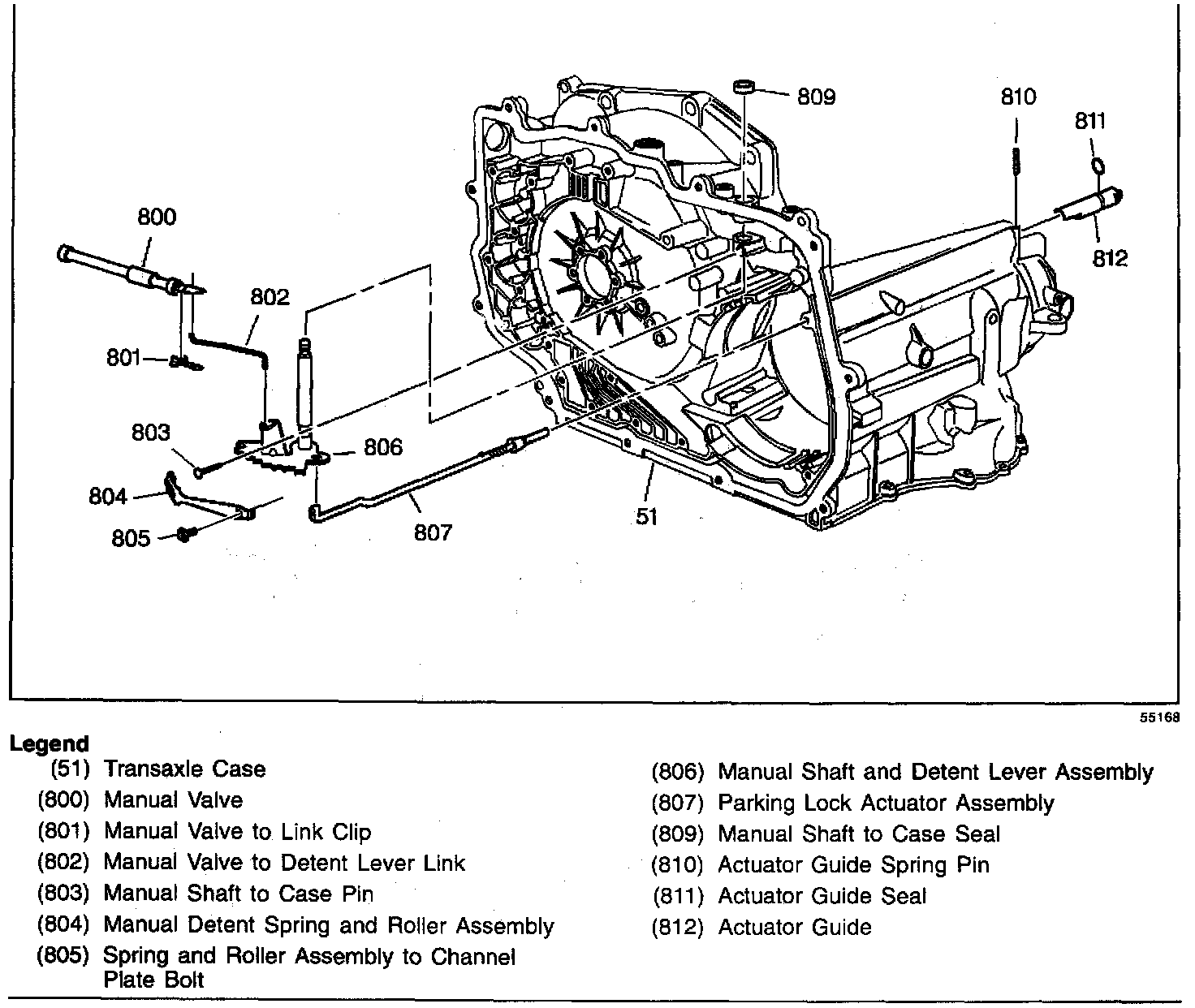

MANUAL SHAFT, PARKING PAWL AND ACTUATOR ASSEMBLY
BUSHING, BEARING AND WASHER LOCATIONS

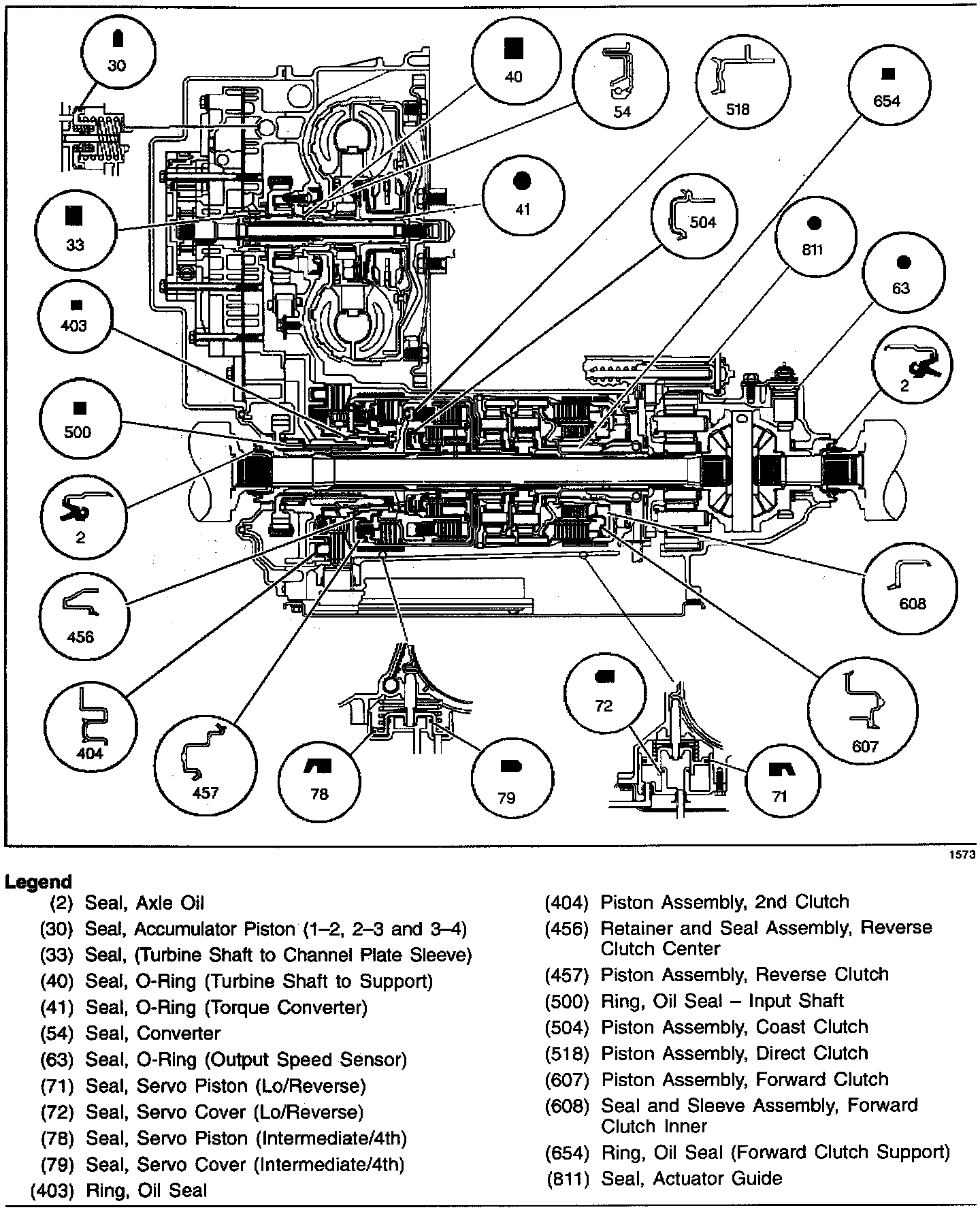

SEAL LOCATIONS
LEAK INSPECTION POINTS

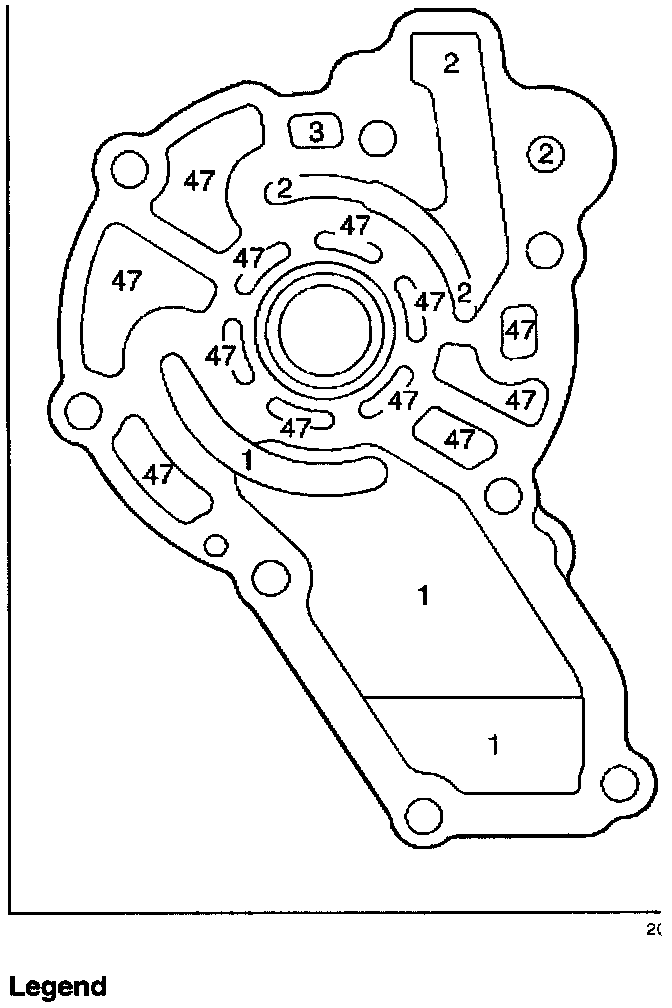

OIL PUMP BASE FLUID PASSAGES-CONTROL VALVE BODY SIDE
CONTROL VALVE BODY FLUID PASSAGES-OIL PUMP BASE SIDE
CONTROL VALVE BODY FLUID PASSAGES-CHANNEL PLATE SIDE
CONTROL VALVE BODY TO SPACER PLATE GASKET
SPACER PLATE
SPACER PLATE TO CHANNEL PLATE GASKET

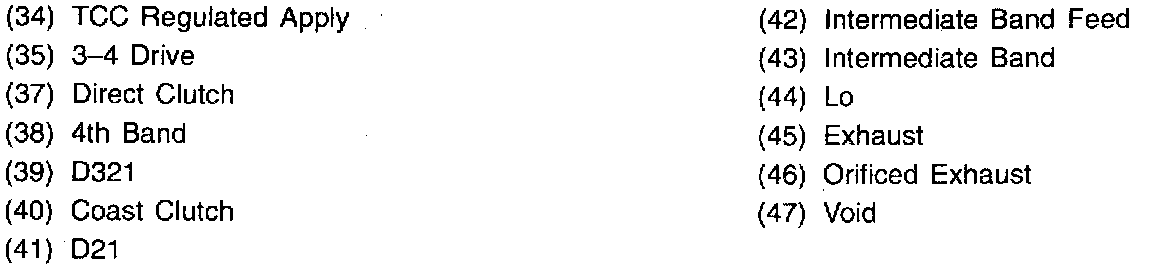

CHANNEL PLATE FLUID PASSAGES-CONTROL VALVE BODY SIDE

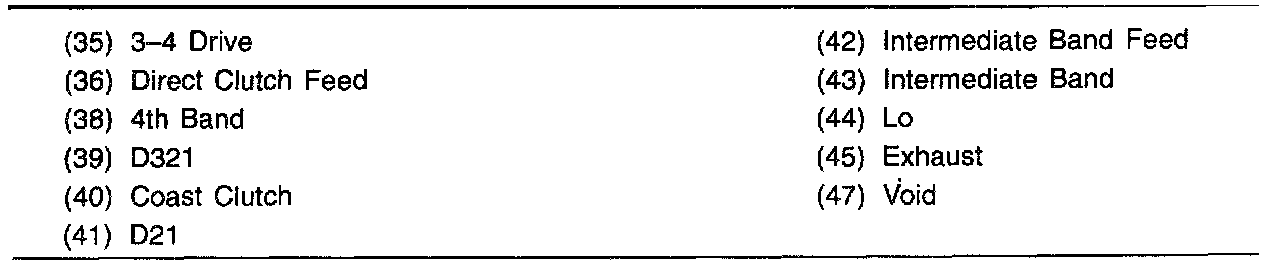

CHANNEL PLATE FLUID PASSAGES-CASE SIDE

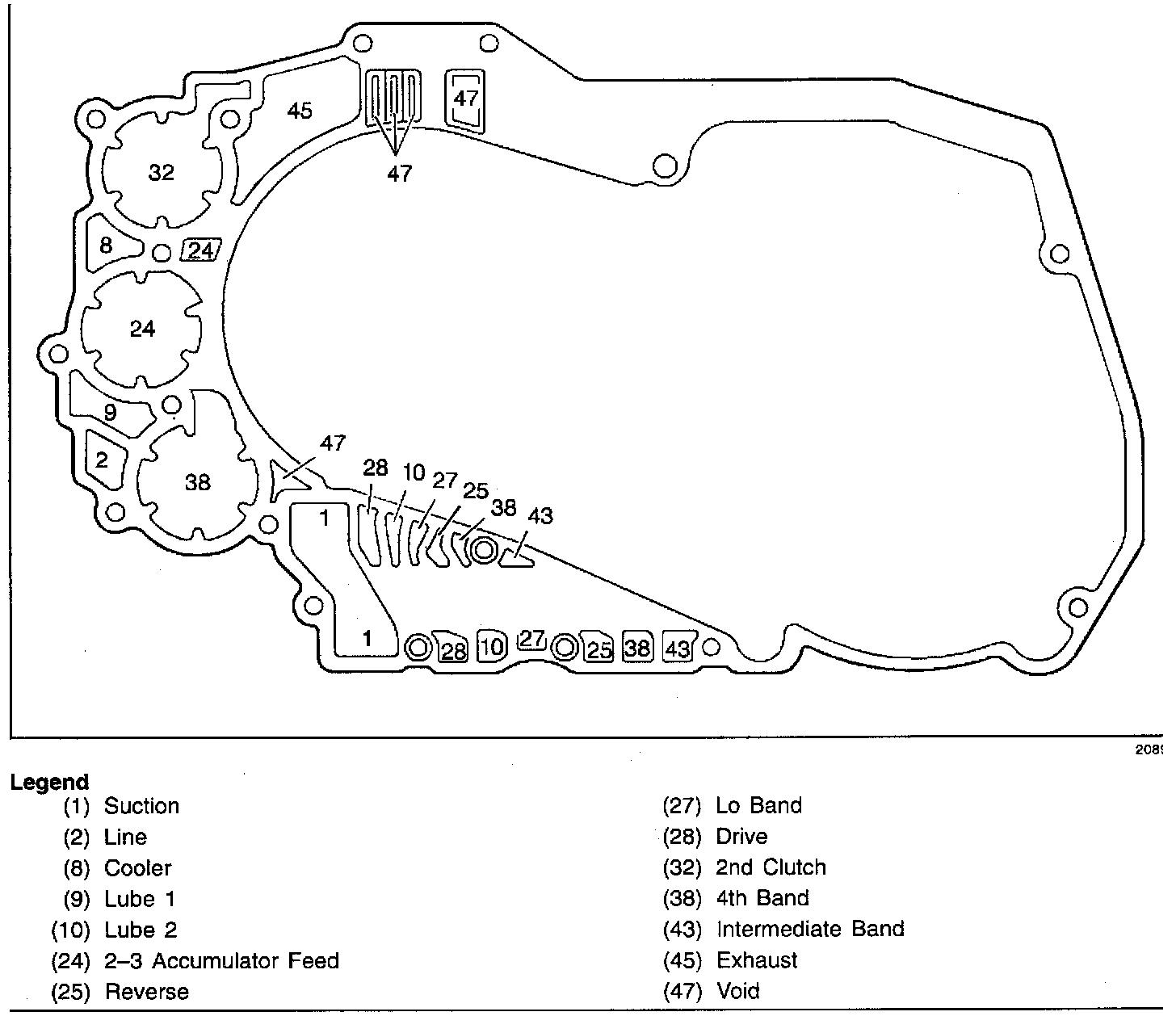

CHANNEL PLATE TO CASE GASKET

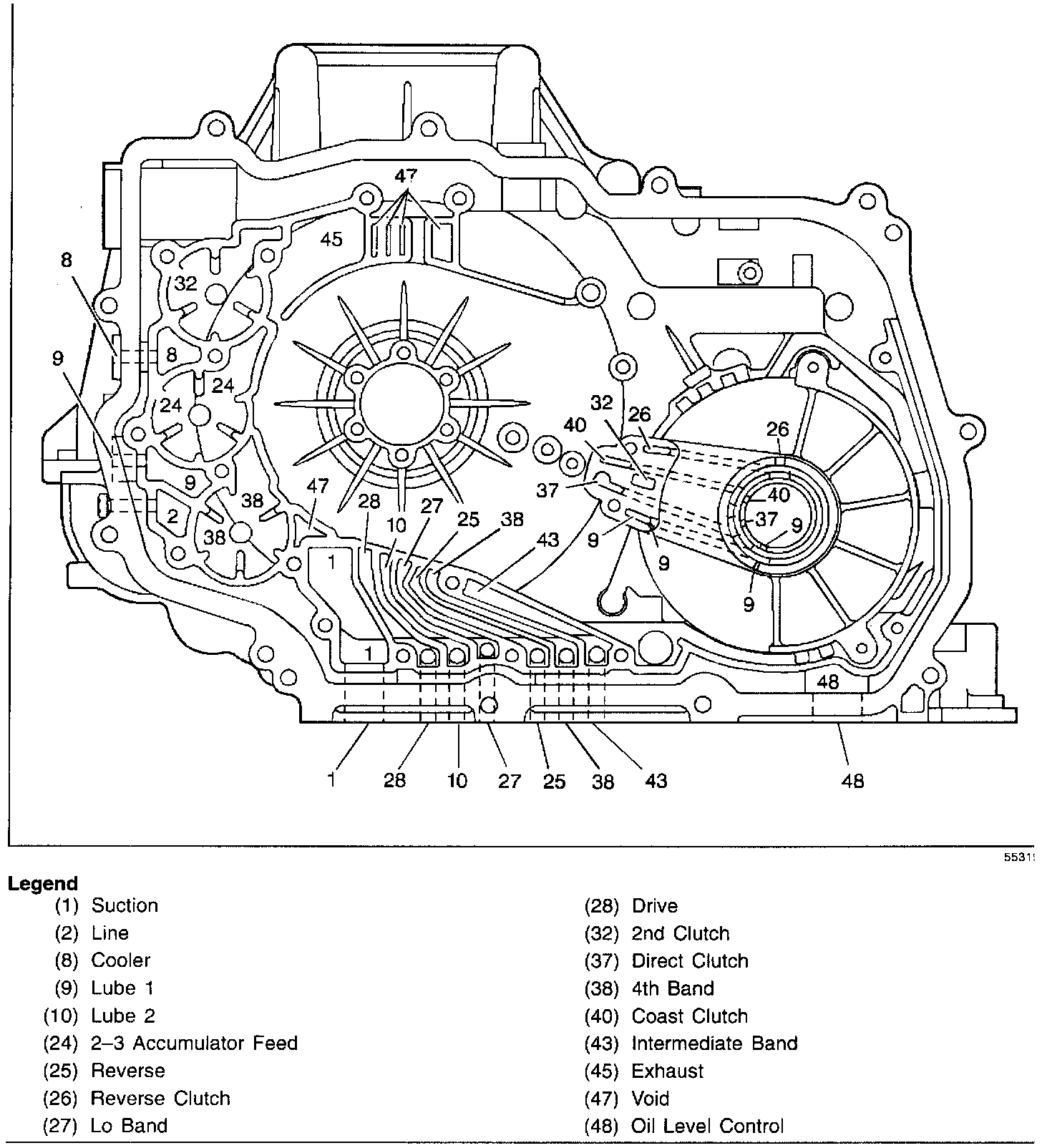

CASE AND DRIVEN SPROCKET SUPPORT FLUID PASSAGES-CHANNEL PLATE SIDE
CASE FLUID PASSAGES-BOTTOM
