Control Assembly: Service and Repair

Remove or Disconnect

1. Negative battery cable.
2. Instrument panel trim plate. Refer to Trim Plate in instrument Panel, Gauges and Console.

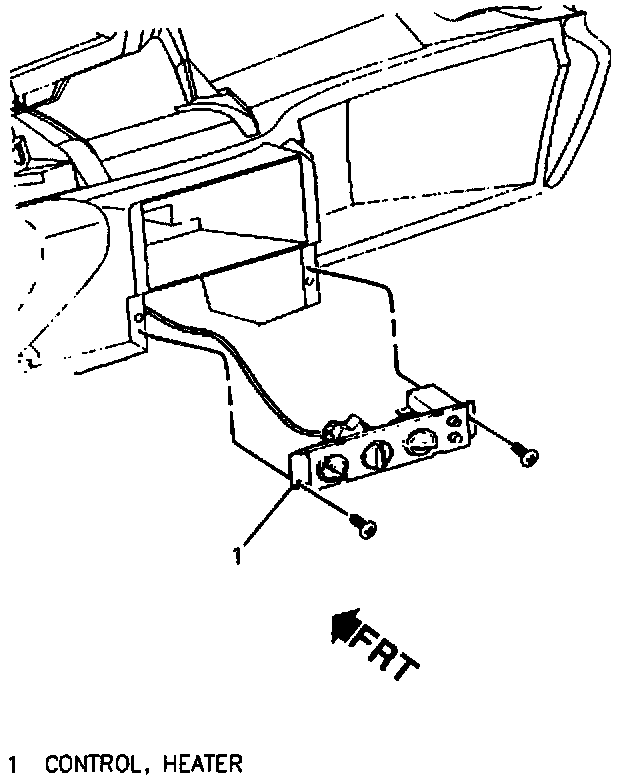

3. Heater and A/C control retaining screws and pull heater and A/C control away from the instrument panel.
4. Electrical and vacuum connections.
5. Temperature control cable from heater and A/C control.

Install or Connect

1. Temperature control cable to heater and A/C control.
2. Electrical and vacuum connections.
3. Heater and A/C control and retaining screws to instrument panel.

Tighten
^ Screws to 2 Nm (18 lb. in.).

4. Instrument Panel trim plate.
5. Negative battery cable.

Tighten
^ Bolt to 16 Nm (12 lb. ft.).
