Hinge Pillar Tie Bar (Cross Car Beam) Replacement

Cross Vehicle Beam Replacement






REMOVAL PROCEDURE

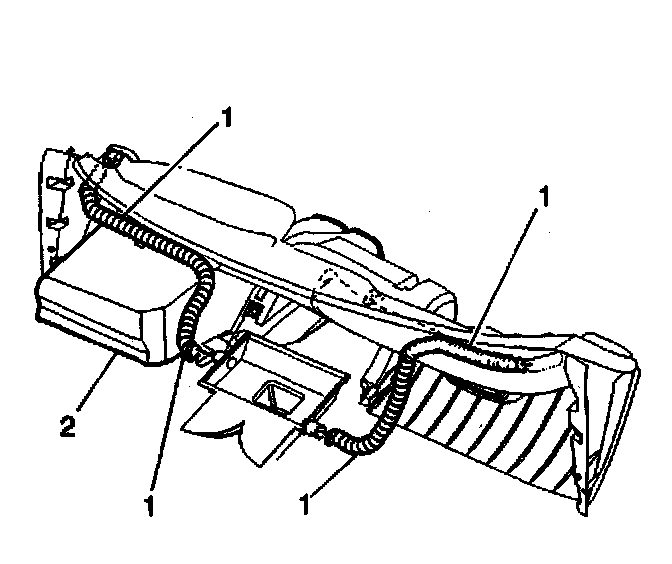

1. Remove the instrument panel.
2. Disconnect the wiring harness from the tie bar.
3. Remove the bolts (2).
4. Remove the tie bar (1) from the front of the dash.

INSTALLATION PROCEDURE
1. Install the tie bar (1) to the front of the dash.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts (2) and the studs (3).

Tighten
Tighten the bolts and the studs to 10 Nm (89 lb in).

3. Connect the wiring harness to the tie bar.
4. Install the instrument panel.
