Instrument Cluster C2
Instrument Cluster C2

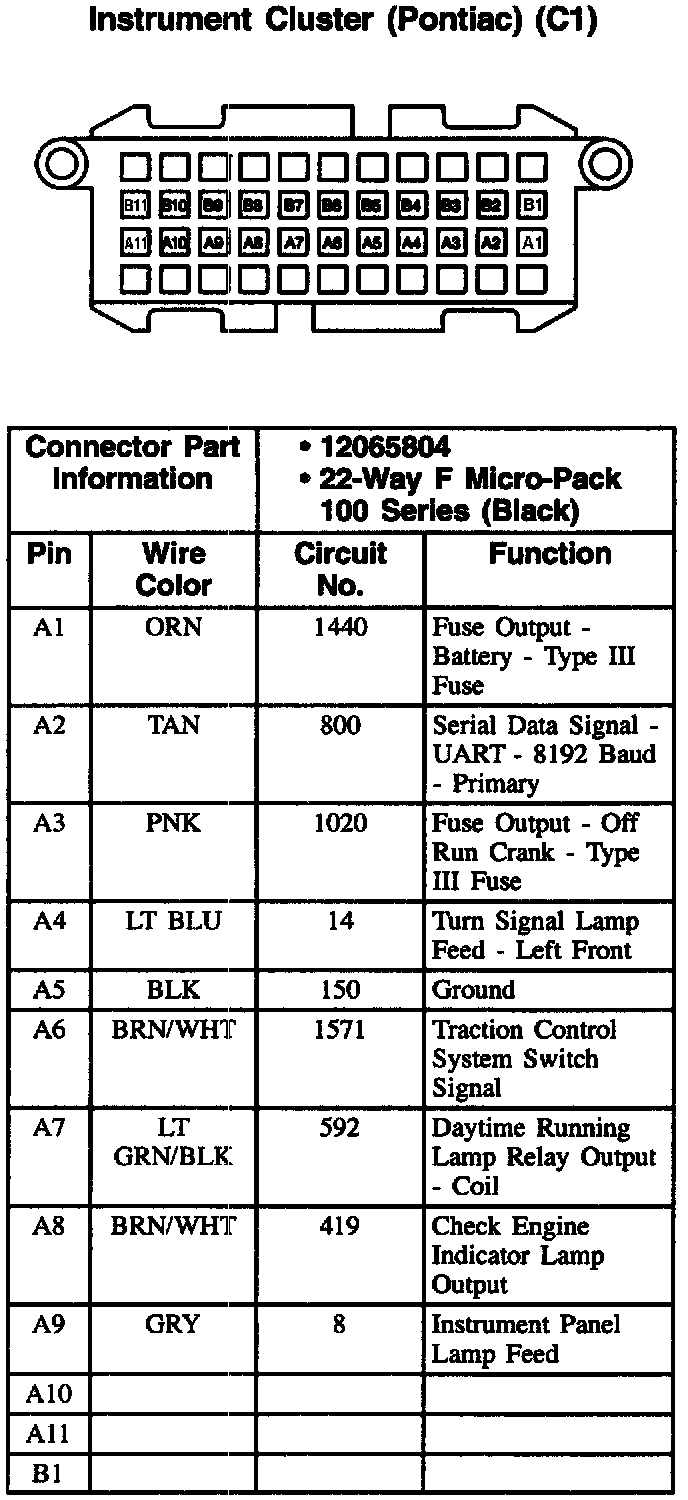

Instrument Cluster (C2) (Part 1 Of 2):

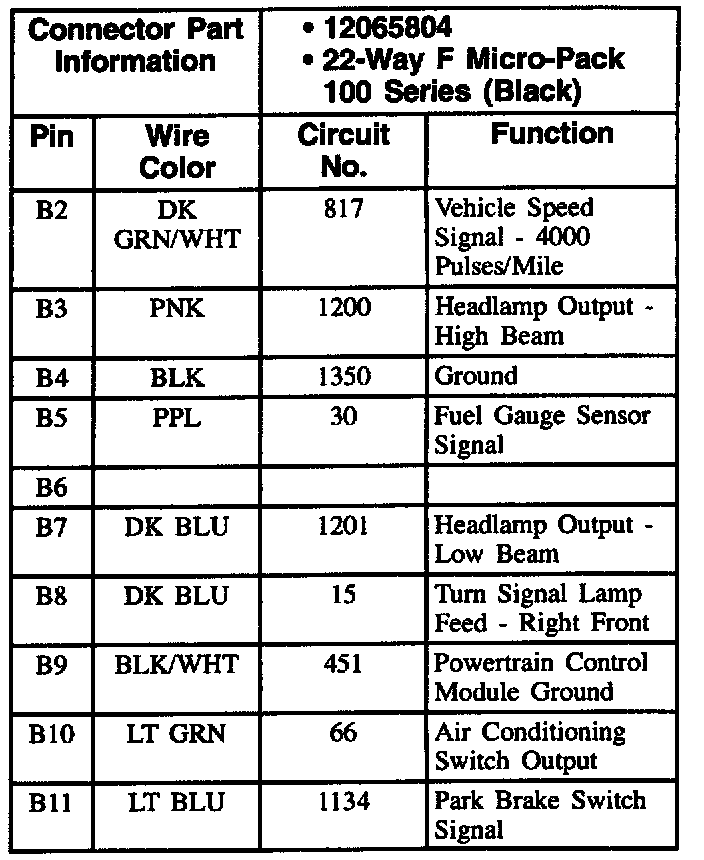

Instrument Cluster (C2) (Part 2 Of 2):
Instrument Cluster (C2):
