Instrument Cluster

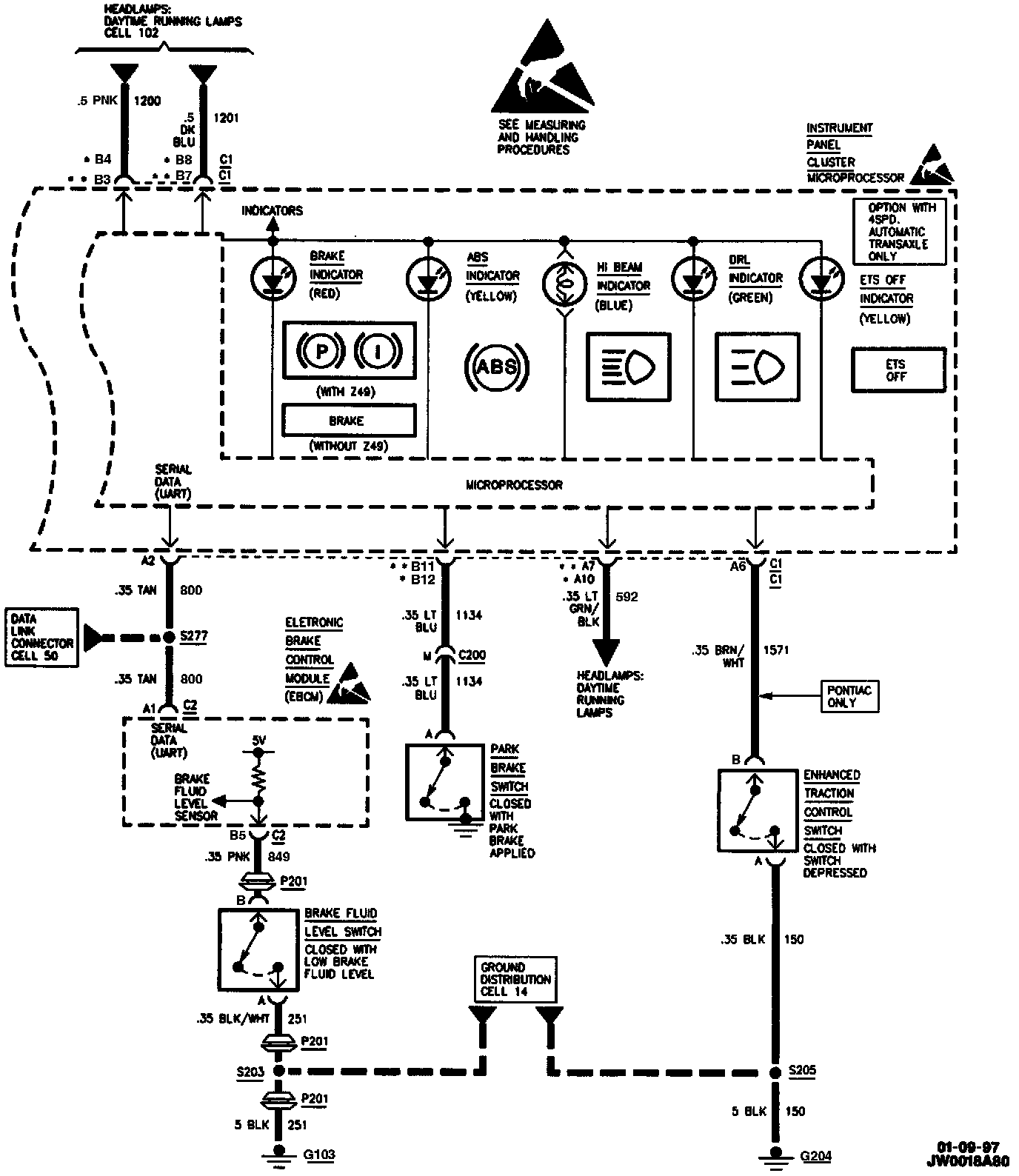

Instrument Cluster (Part 1 Of 6):

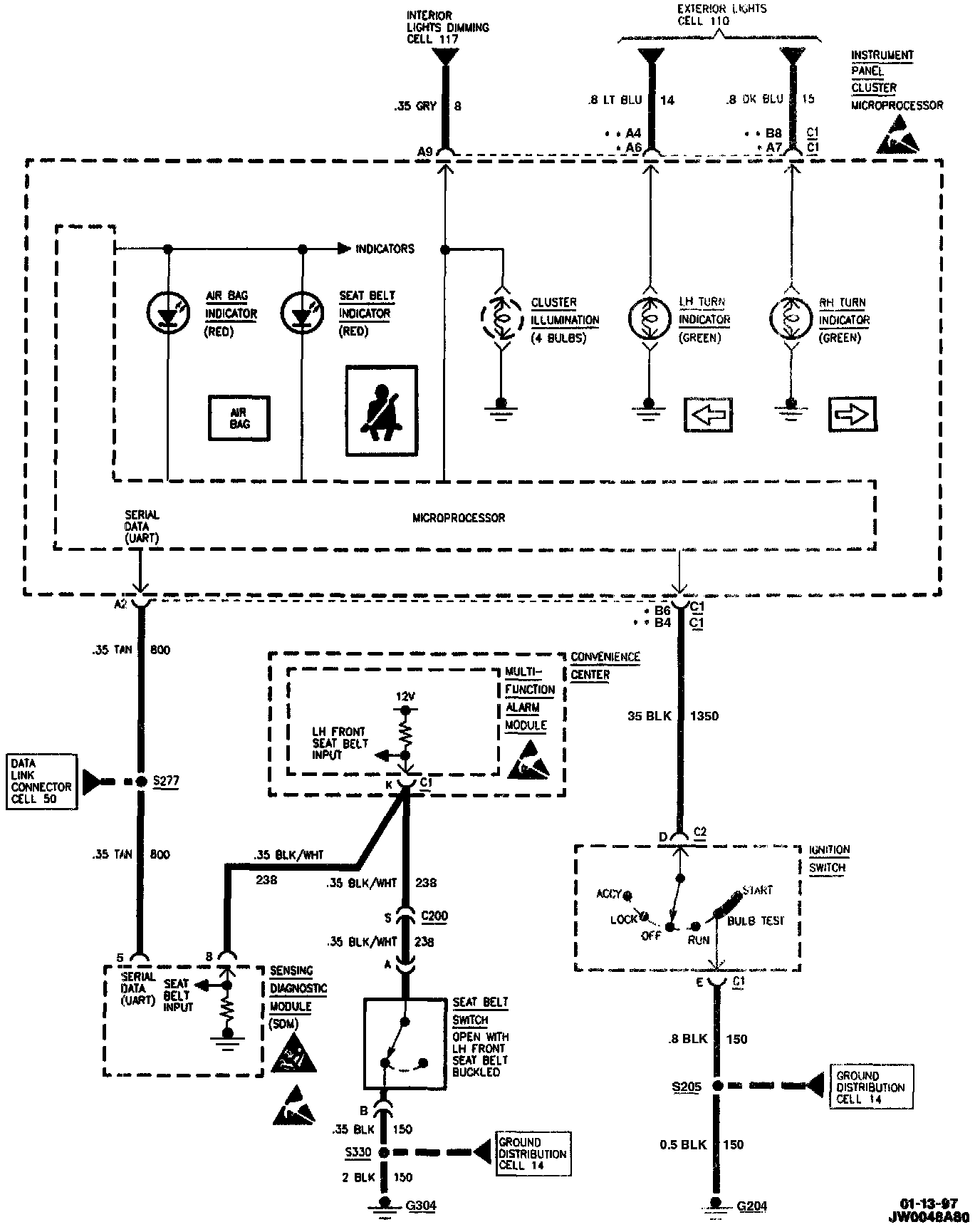

Instrument Cluster (Part 2 Of 6):

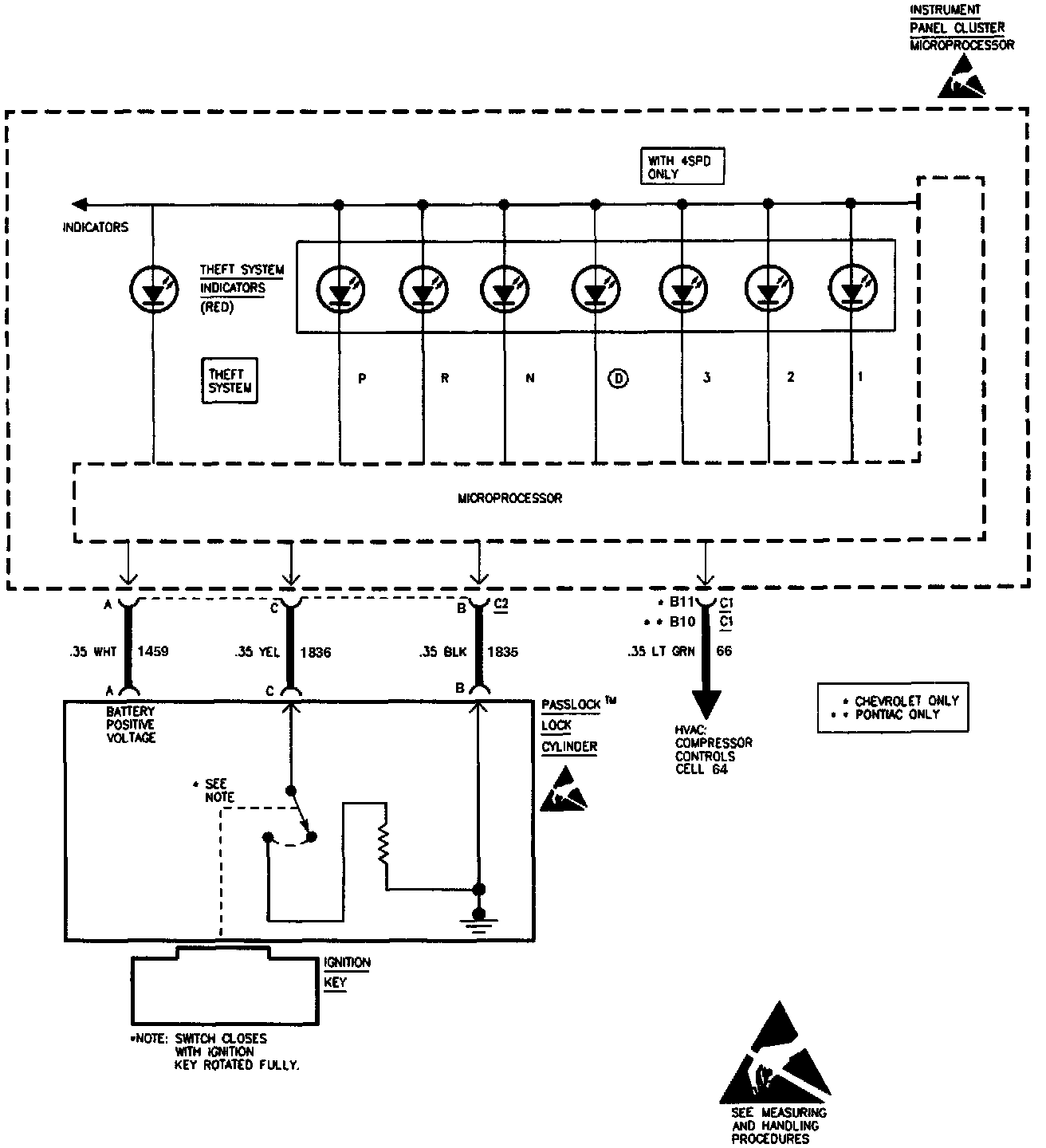

Instrument Cluster (Part 3 Of 6):

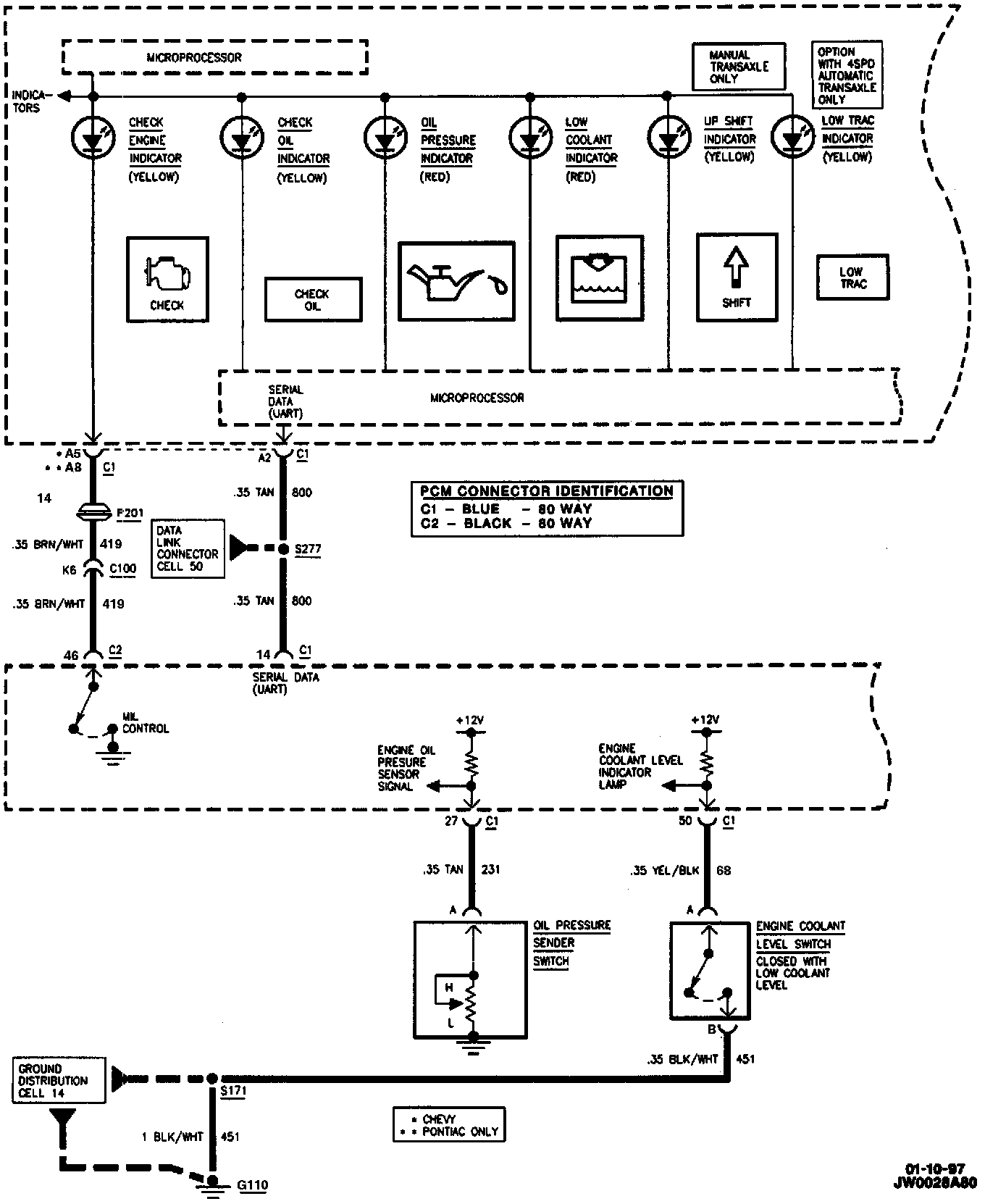

Instrument Cluster (Part 4 Of 6):

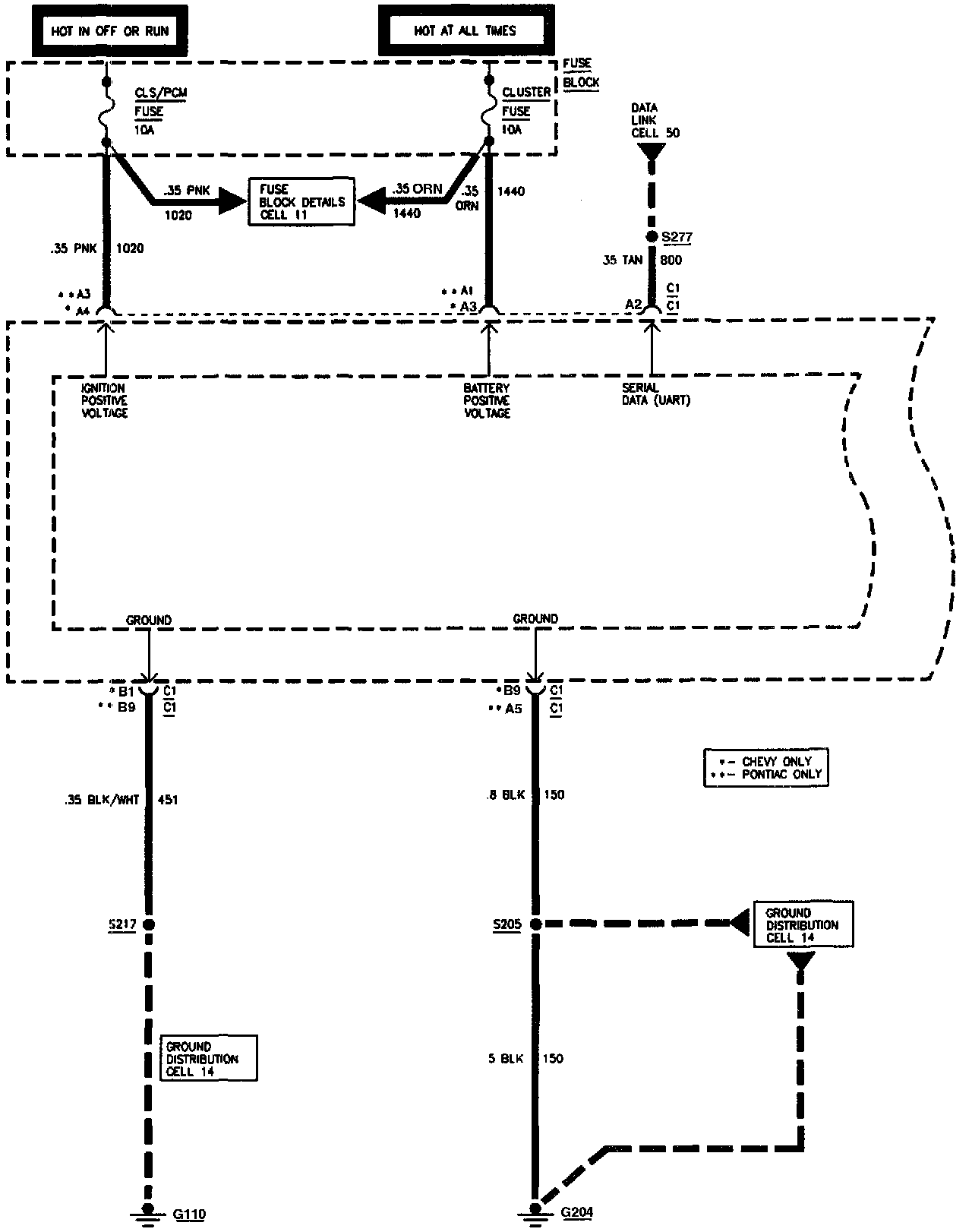

Instrument Cluster (Part 5 Of 6):




Instrument Cluster (Part 6 Of 6):
