Sedan

REMOVAL PROCEDURE

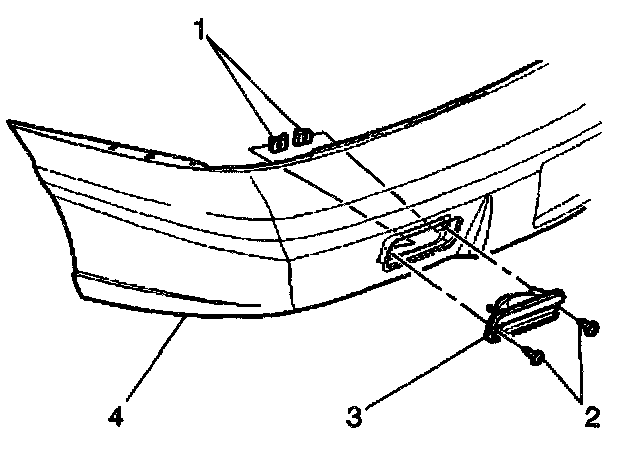

1. Remove the screws (2) from the back-up lamp assembly (3).
2. Remove the lamp assembly (3) from the rear fascia (4).
3. Disconnect the electrical connector.
4. Turn the back-up lamp bulb 1/4 turn counter-clockwise in order to remove the bulb from the back-up lamp assembly (3).

INSTALLATION PROCEDURE
1. Turn the back-up lamp bulb 1/4 turn clockwise in order to install the bulb into the back-up lamp assembly (3).
2. Connect the electrical connector.
3. Install the back-up lamp assembly (3) to the rear fascia (4).


NOTE: Refer to Fastener Notice in Cautions and Notices.


4. Install the screws (2) to the back-up lamp assembly (3).

Tighten
Tighten the screws to 2 N.m (18 lb in).
