Mirror Replacement - Power Mirror

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the trim panel.
3. Remove the water deflector.

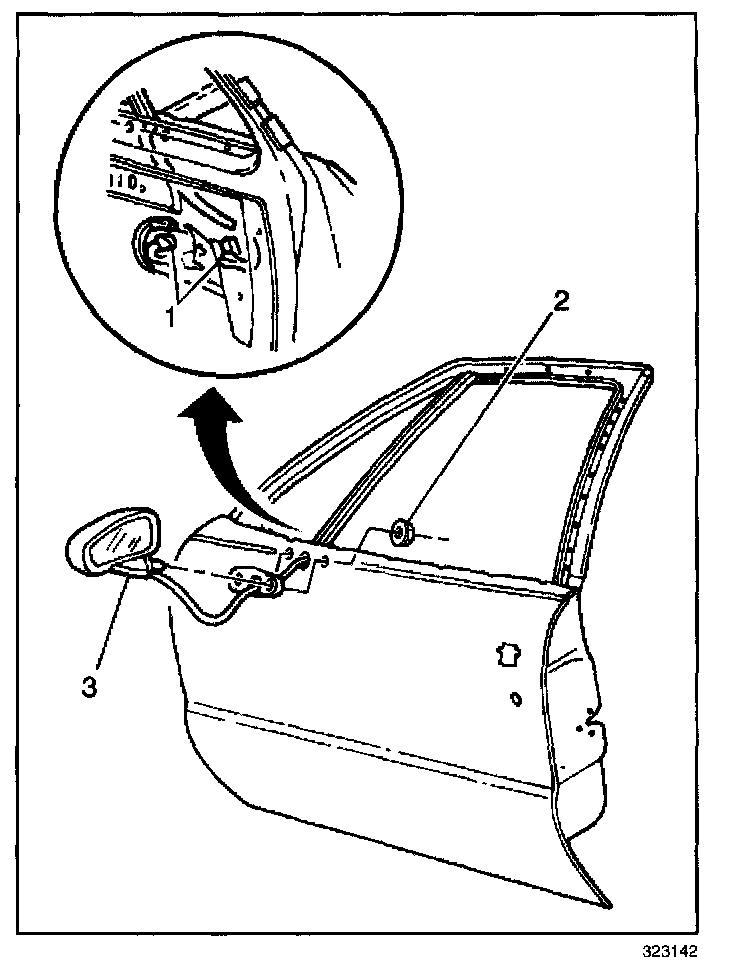

4. Disconnect the wire connectors (1).
5. Remove the fasteners (2).
6. Remove the mirror assembly (3).

INSTALLATION PROCEDURE




1. Install the mirror assembly (3) to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the fasteners (2).

Tighten
Tighten the fasteners to 6 N.m (54 lb in).

3. Connect the wire connectors (1).
4. Install the water deflector.
5. Install the trim panel.
6. Connect the negative battery cable.
