Instrument Cluster Breakout

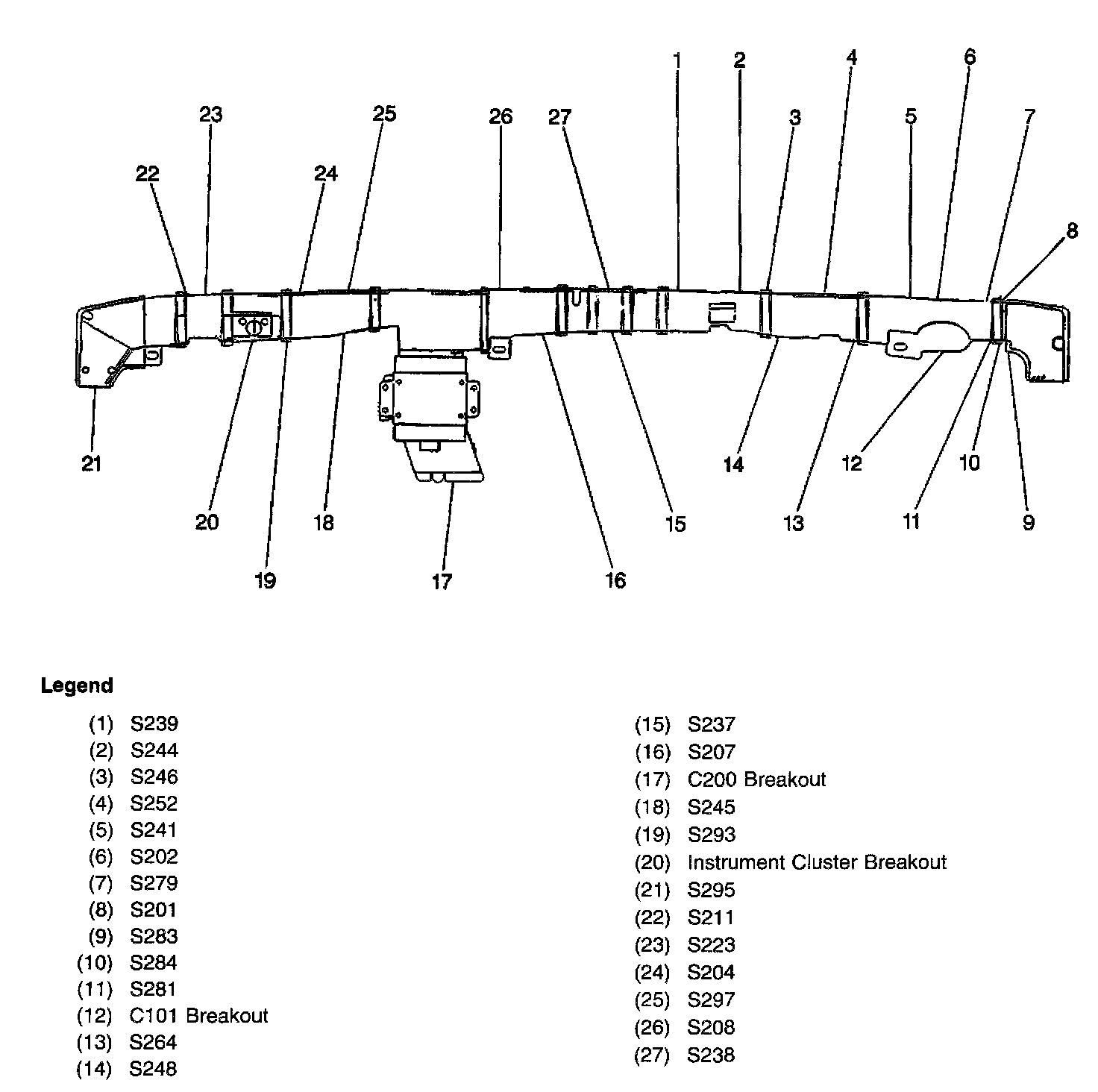

Instrument Cluster Breakout
Passenger Compartment, Behind The Instrument Panel:
