Home >> Pontiac >> 1999 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components >> Motors >> Power Window Motor, Rear

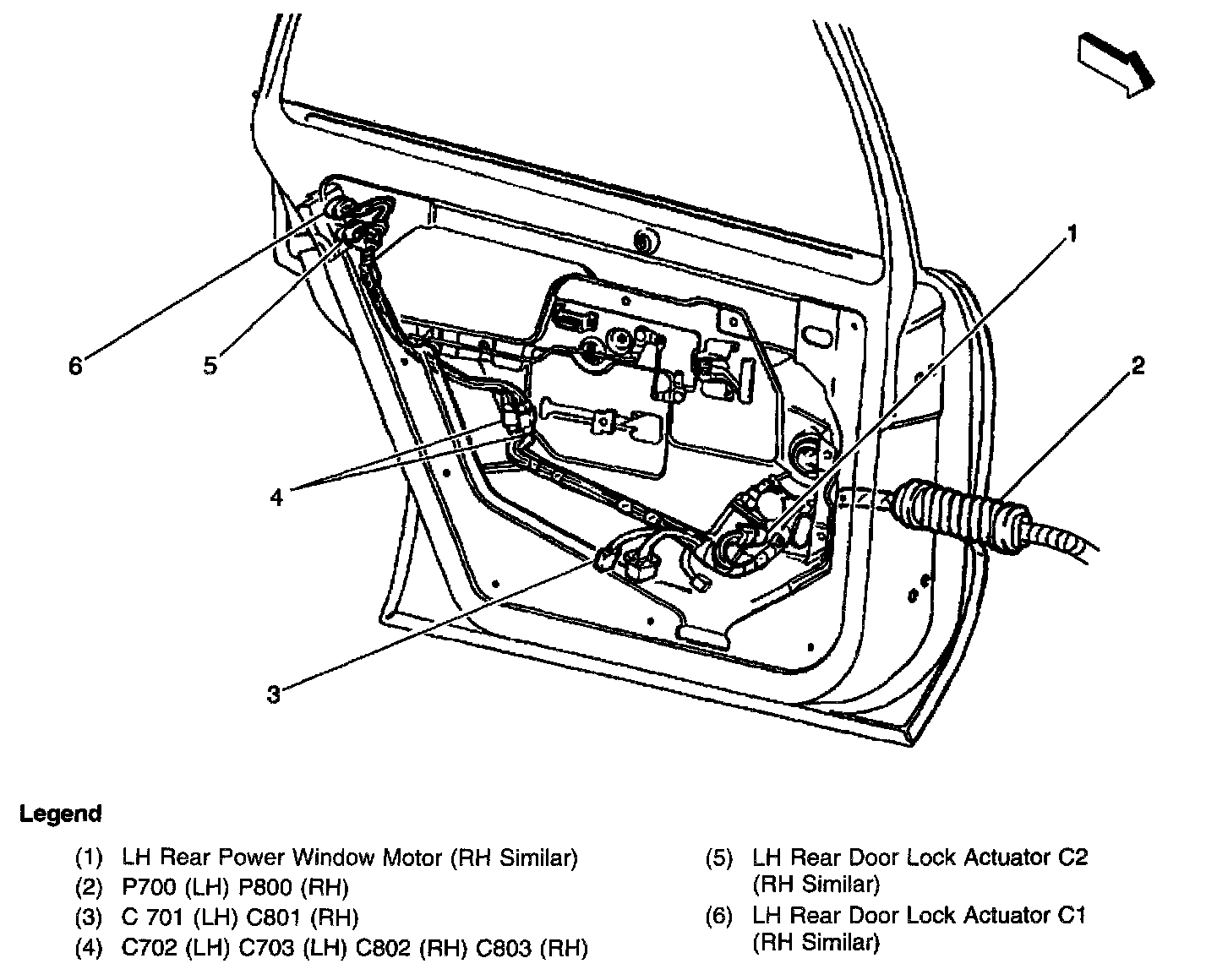

Power Window Motor, Rear

Left Hand Rear Door, Behind The Door Trim:
