A/C Compressor Clutch Relay
A/C Compressor Clutch Relay

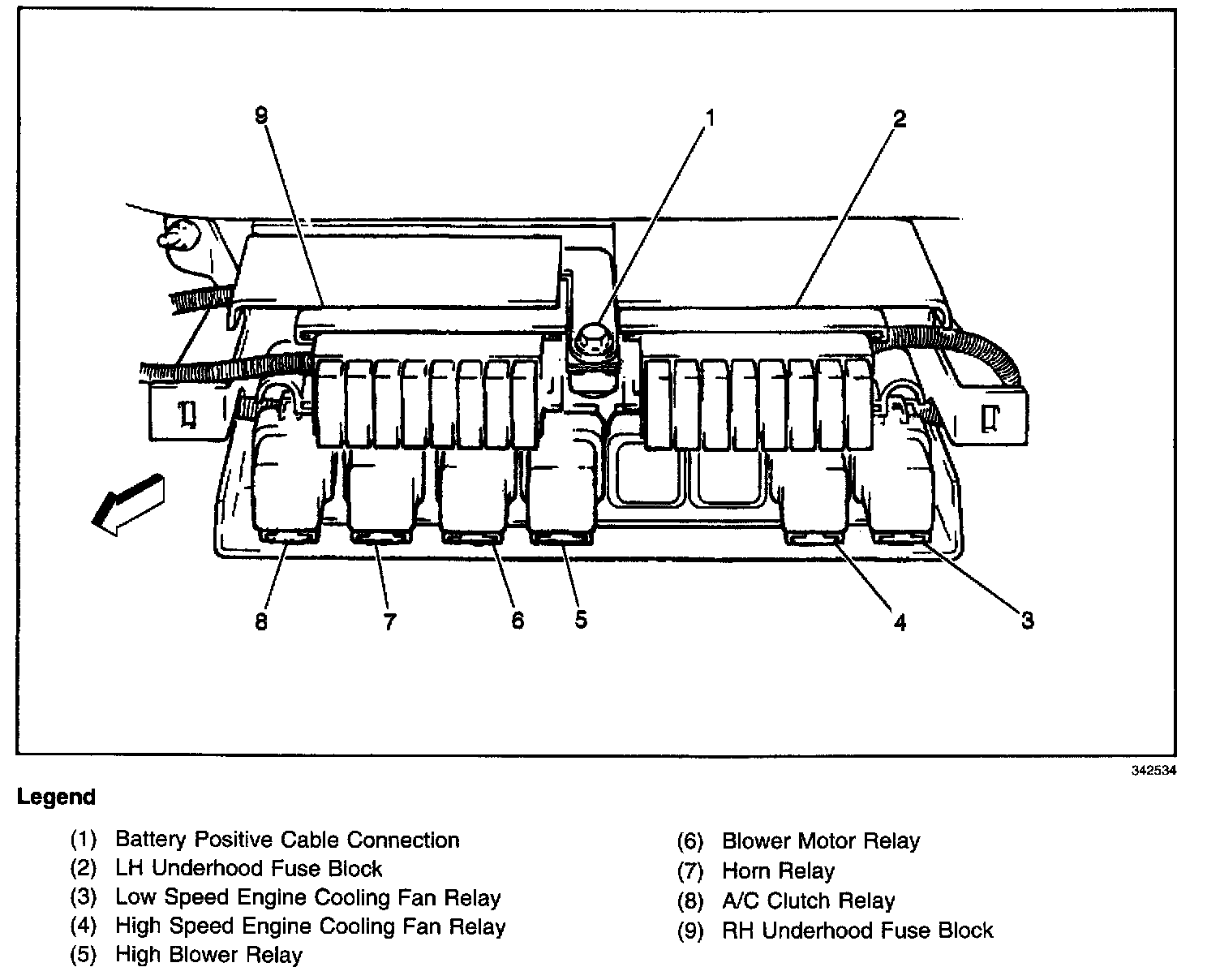

Rear Of The Engine Compartment:
In the center rear of the engine compartment, below the right hand underhood fuse block
