Camshaft Position (CMP) Sensor (Hidden)
Camshaft Position (CMP) Sensor (Hidden)

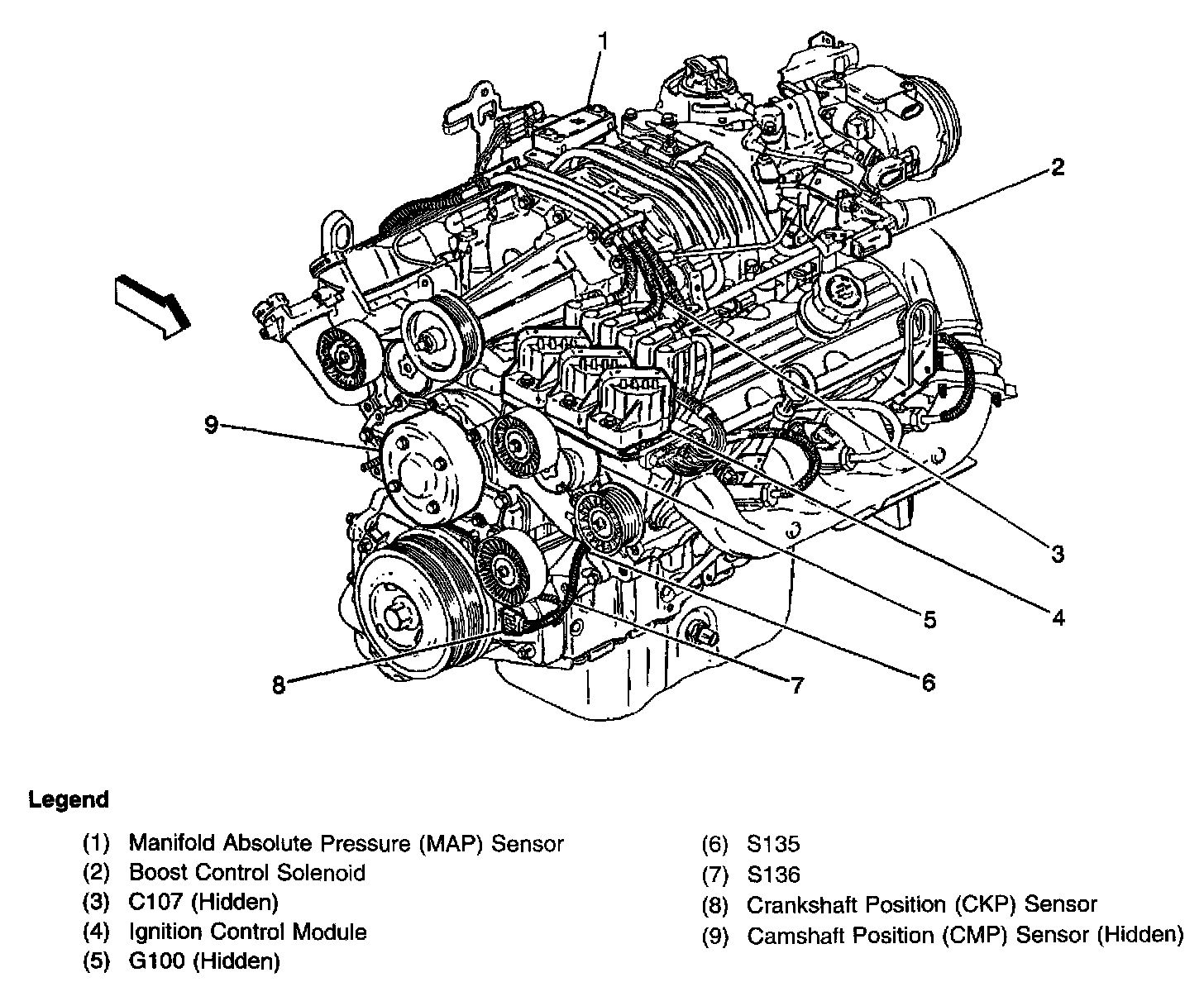

Engine Right Side (L36):

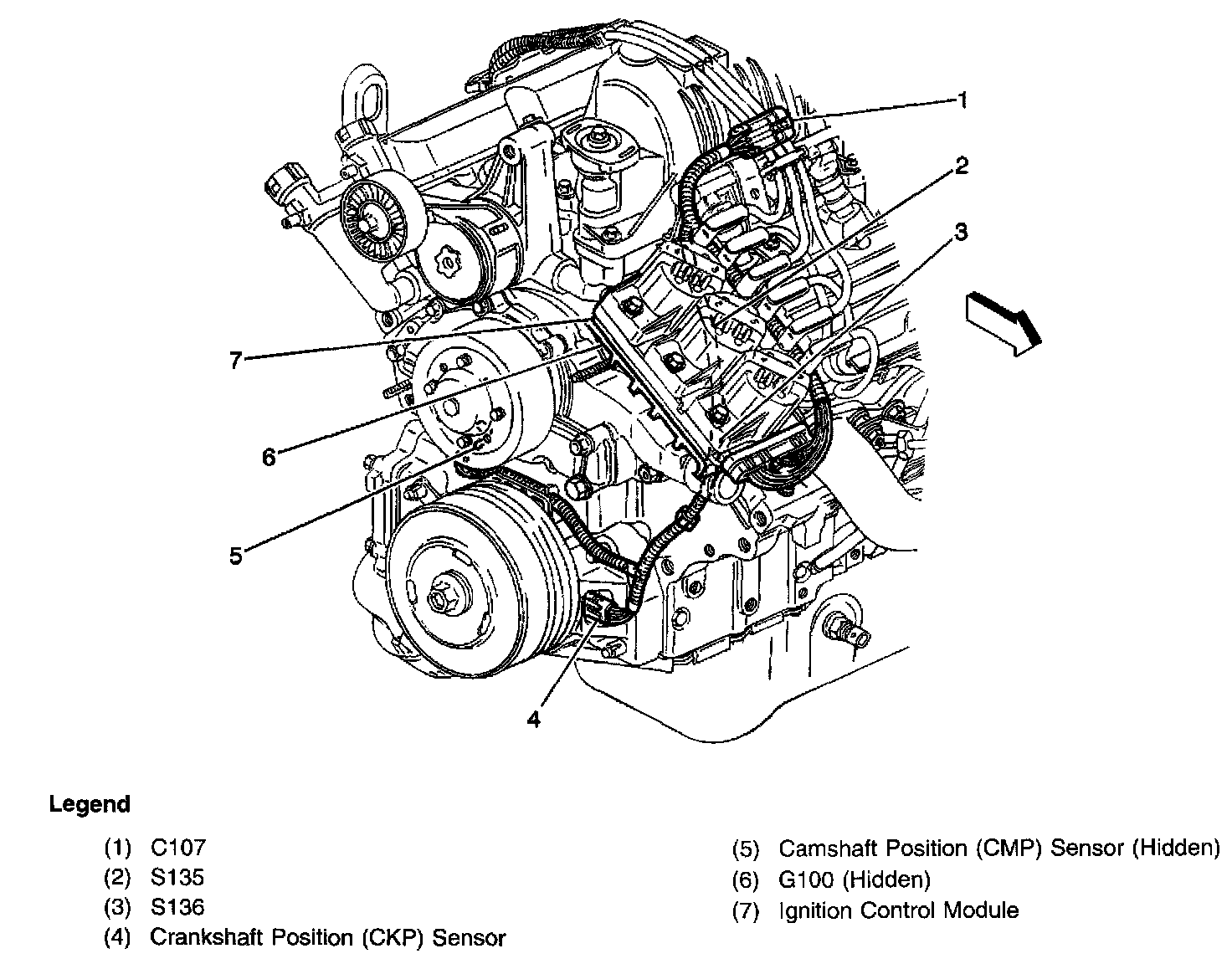

Engine, Right Side (L67):
