Home >> Pontiac >> 1999 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components >> Sensors >> Wheel Speed Sensor, Front

Wheel Speed Sensor, Front

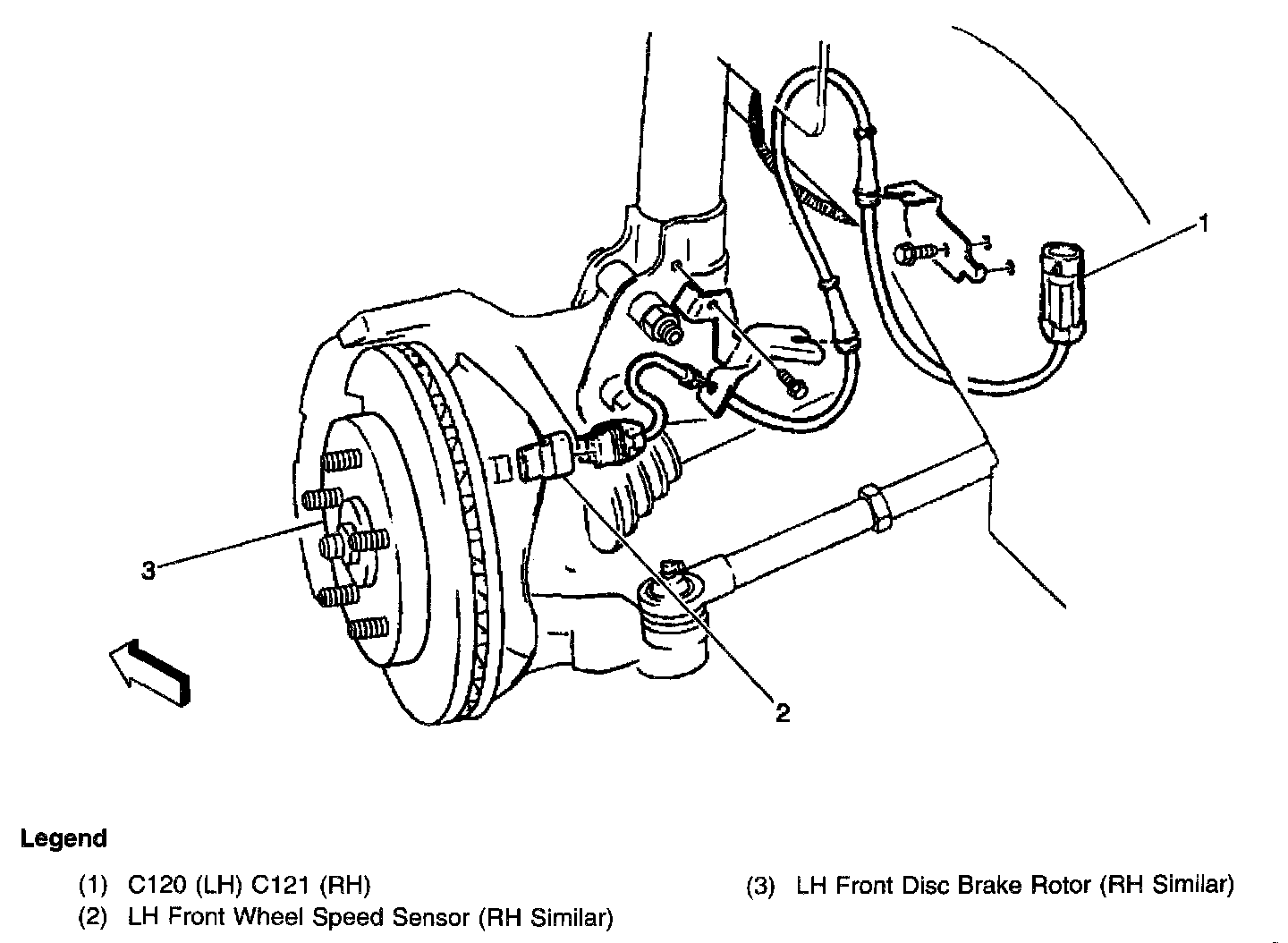

Wheel Opening, Left Front:
