Engine Oil Pressure Switch

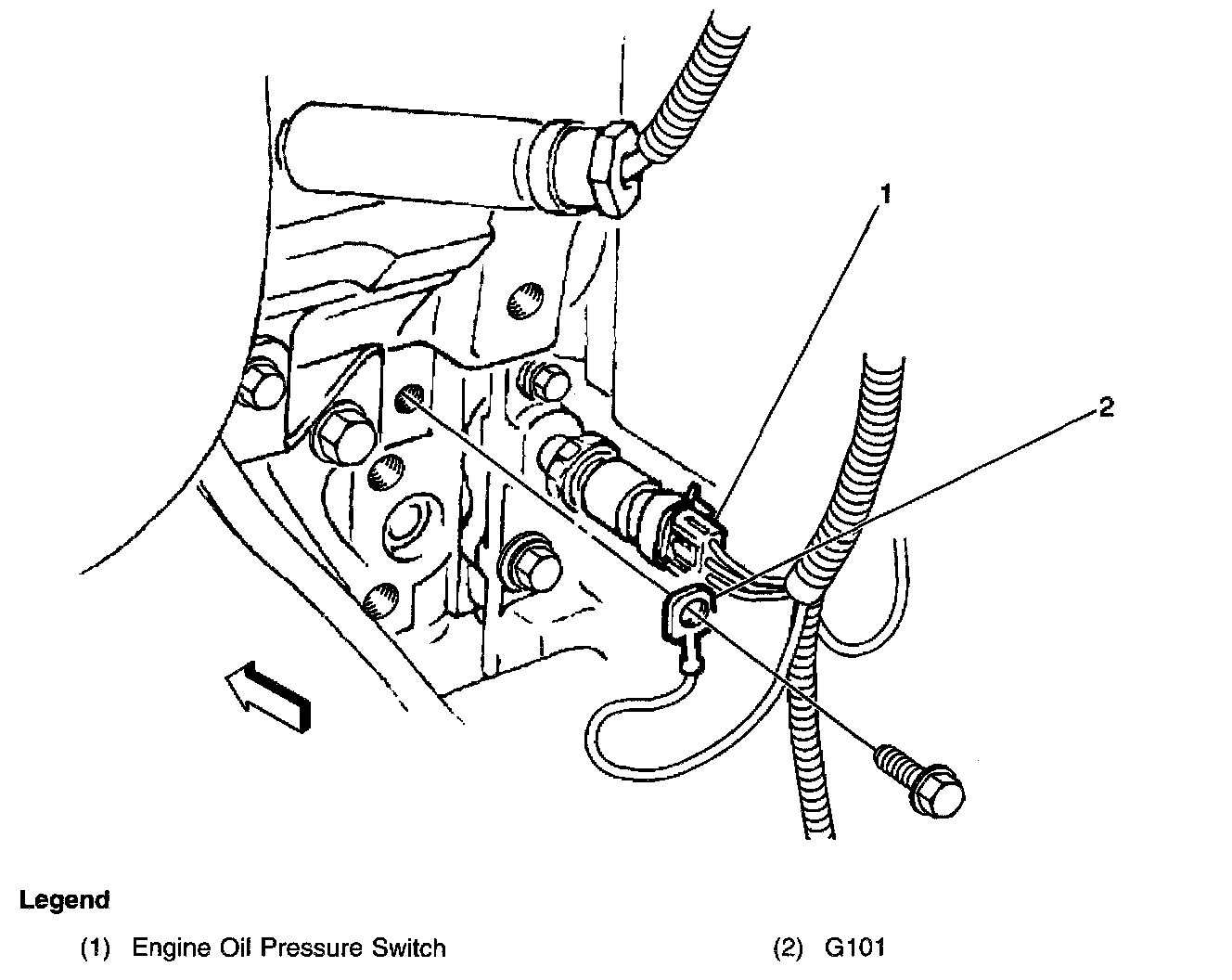

Left Hand Rear Of The Engine:
On the right rear corner of the engine, below the power steering pump
