Home >> Pontiac >> 1999 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Blower Motor Relay >> Blower Motor High-Speed Relay Connector

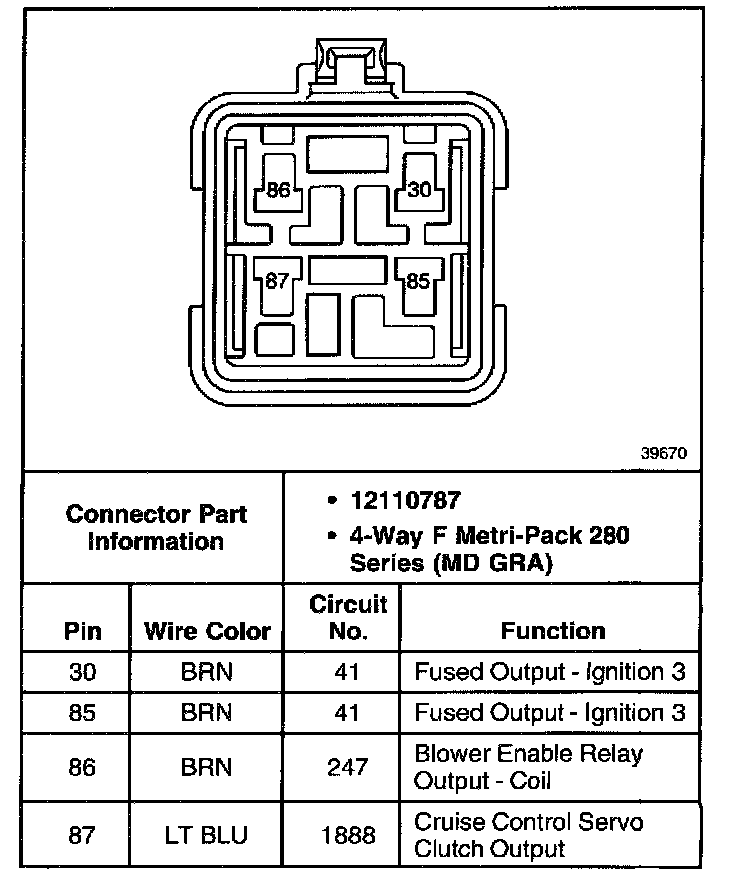

Blower Motor High-Speed Relay Connector

Blower Motor High-Speed Relay:
