C200
C200

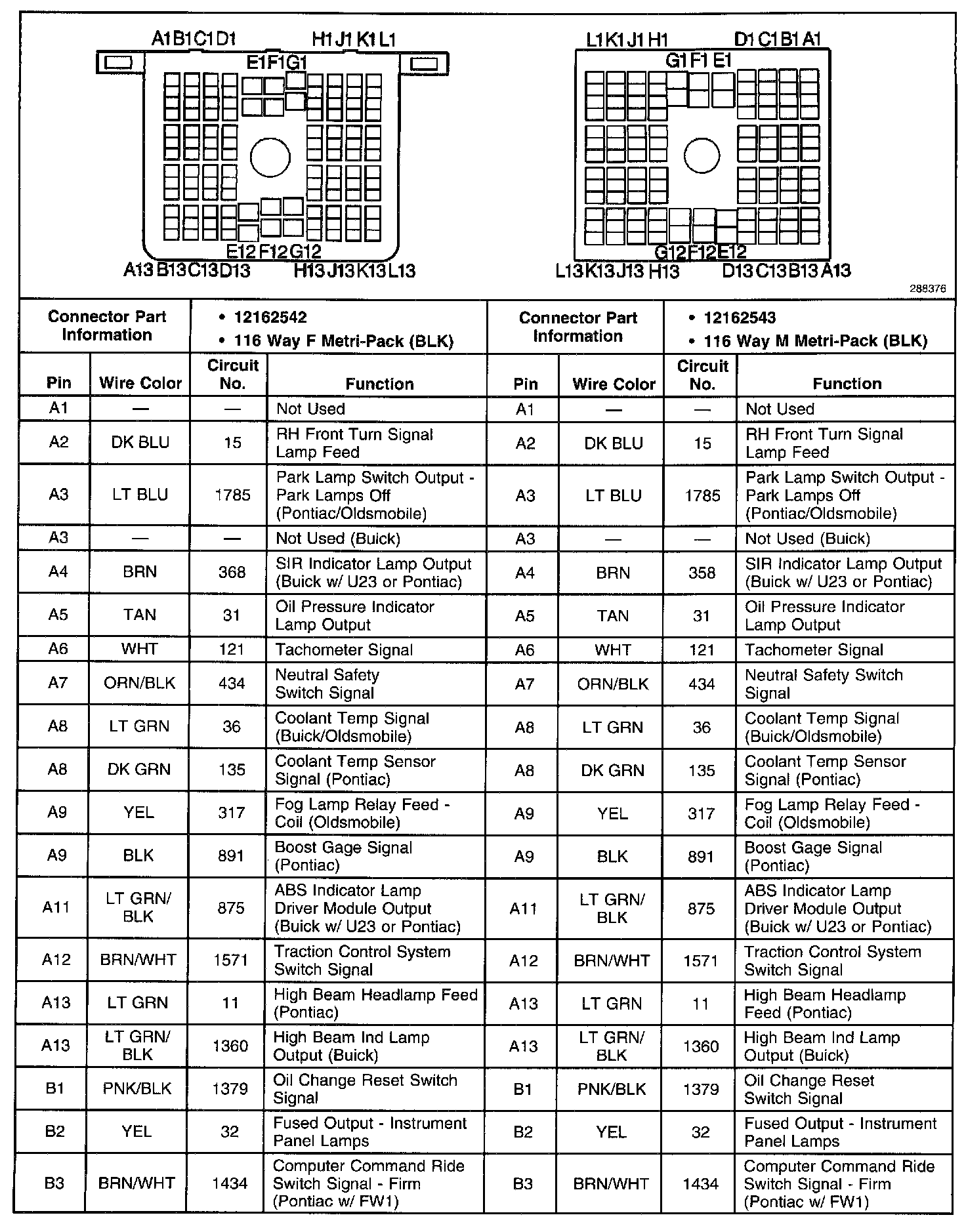

C200 (Part 1 Of 6):

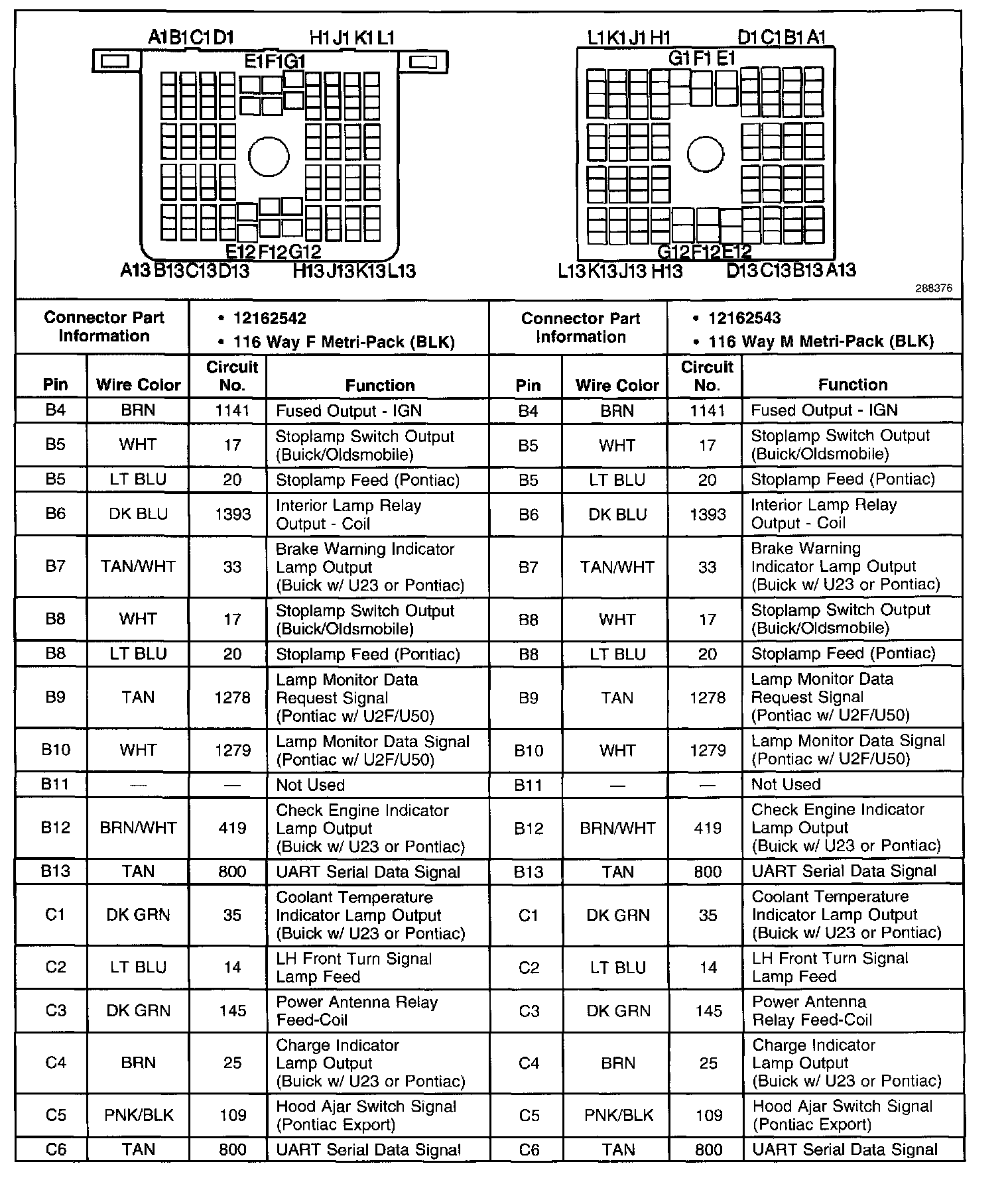

C200 (Part 2 Of 6):

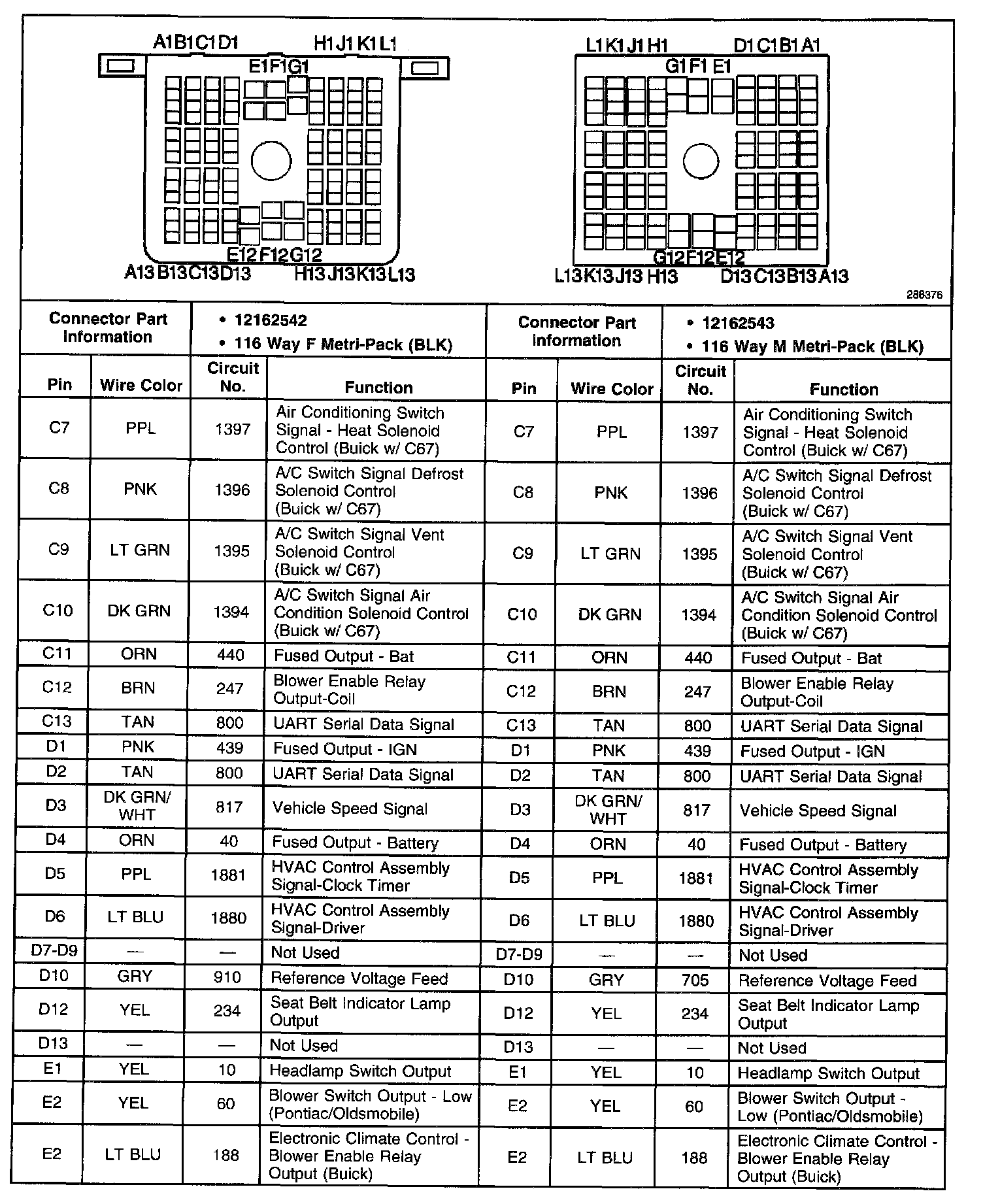

C200 (Part 3 Of 6):

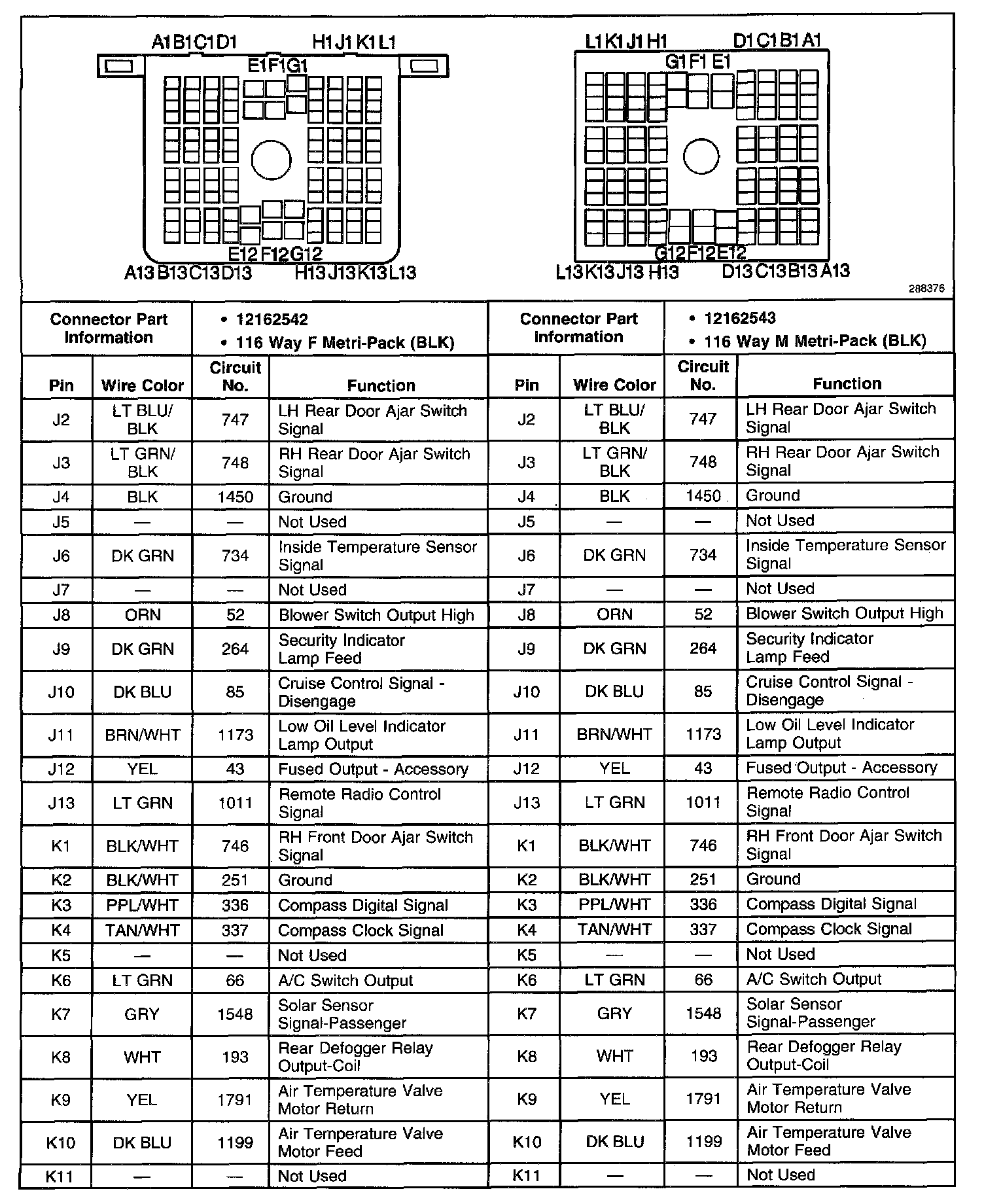

C200 (Part 4 Of 6):

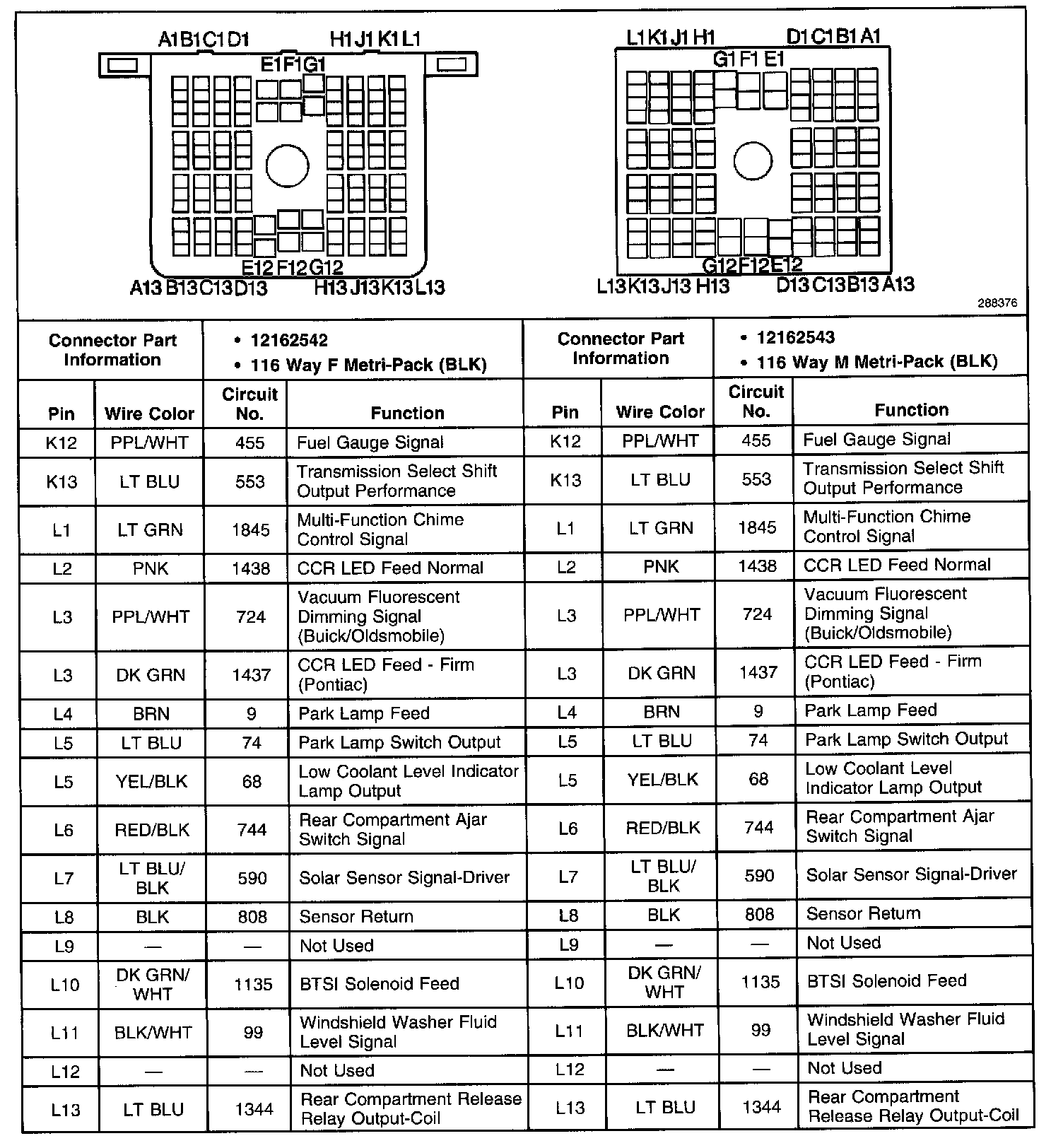

C200 (Part 5 Of 6):
C200 (Part 6 Of 6):
