Home
>>
Pontiac
>>
1999
>>
Bonneville V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C402 (RH)
C402 (RH)

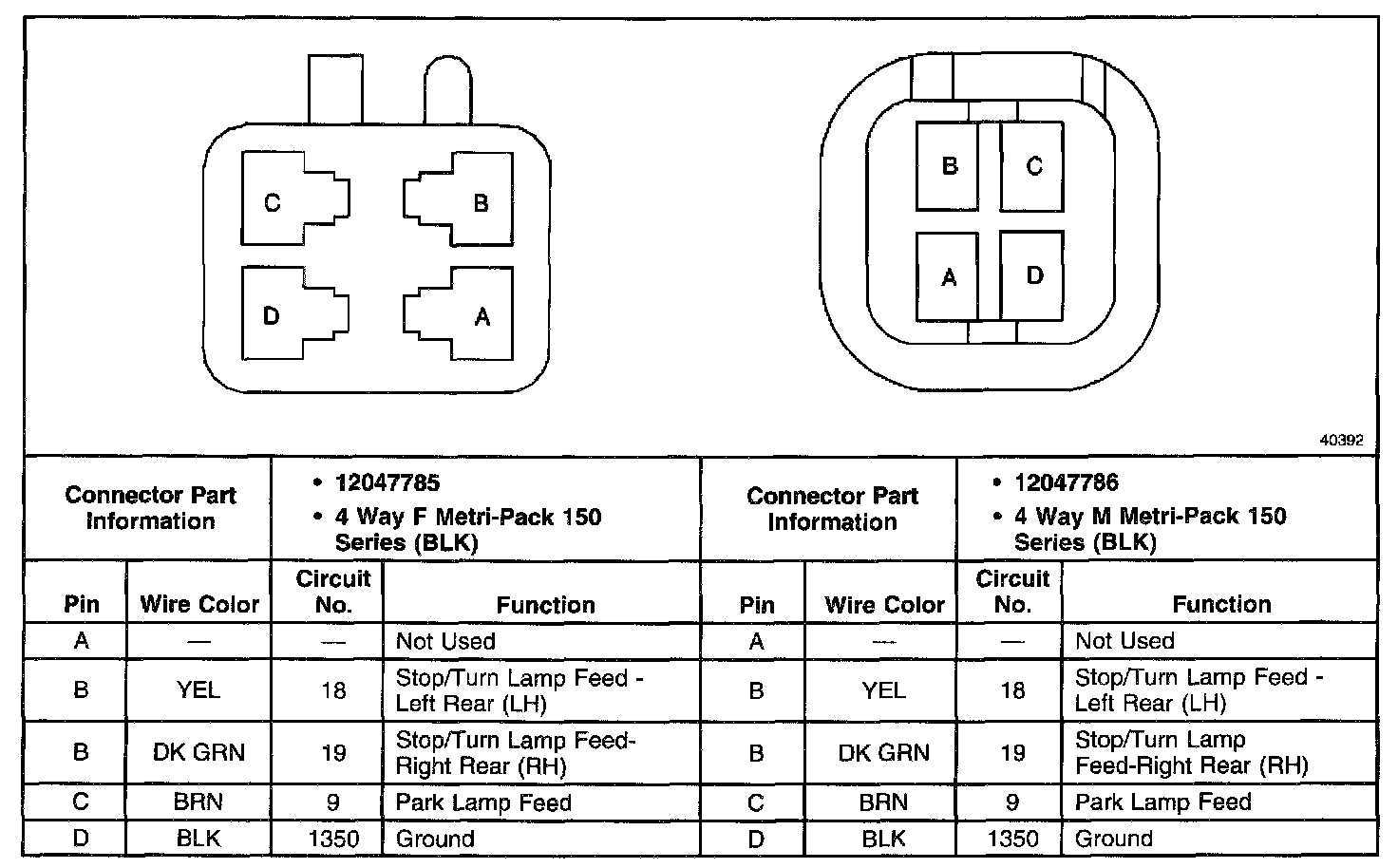

C400 (LH), C402 (RH):
