Bonneville V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C411 (RH)
C411 (RH)

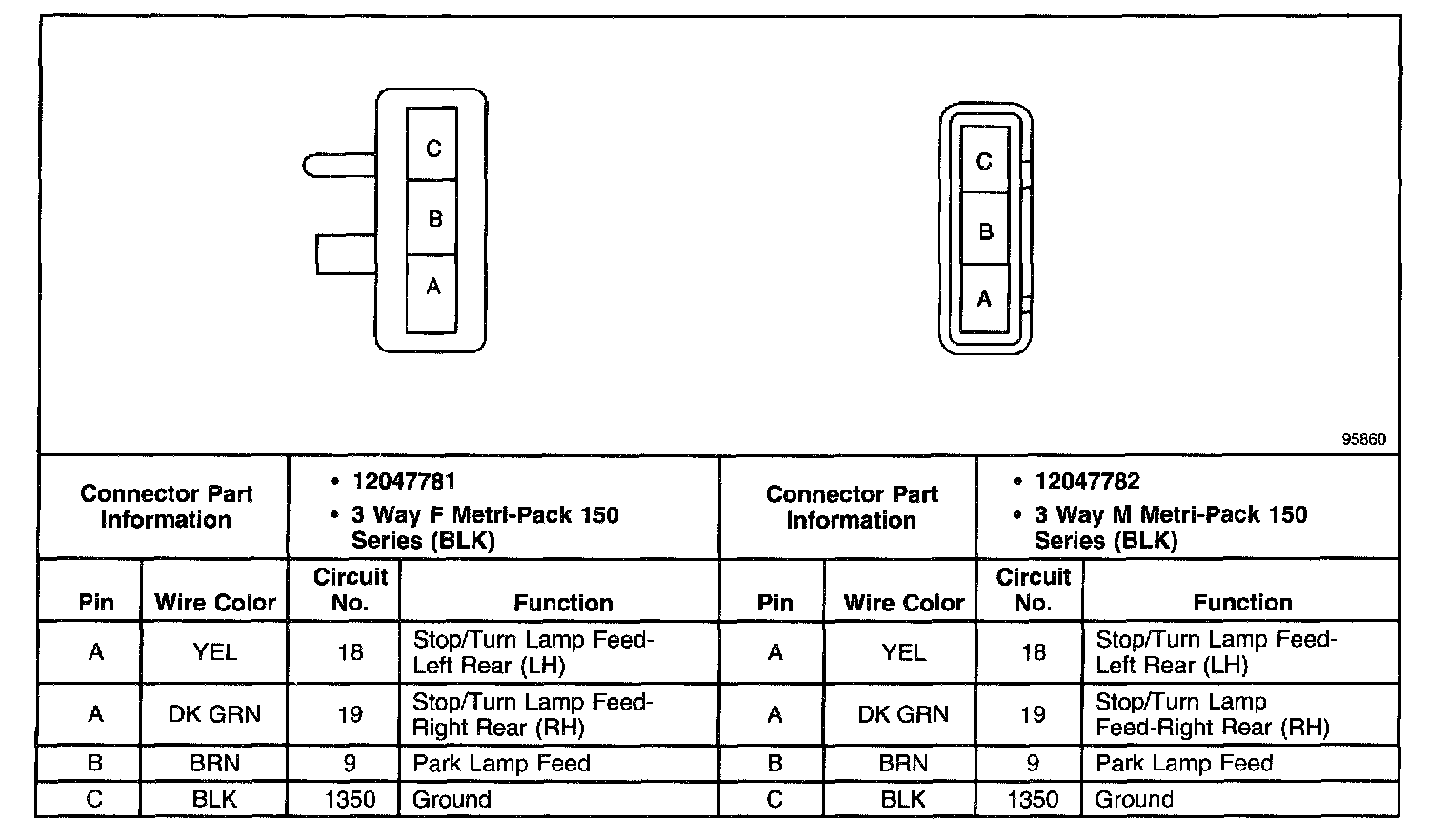

C410 (LH), C411 (RH):
