Home >> Pontiac >> 1999 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Radio C2

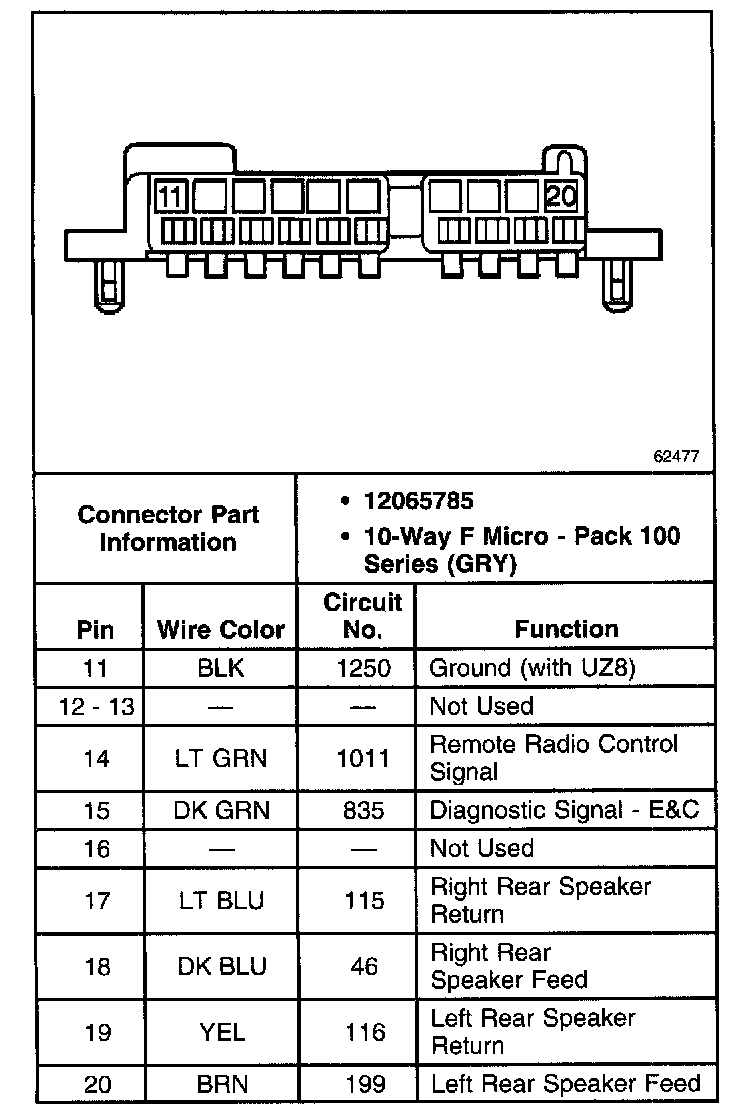

Radio C2

Radio C2 (Pontiac):
