A/T Internal Connector End Views
Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side
1-2, 3-4 Shift Solenoid (1-2, 3-4 SS) Valve Connector, Wiring Harness Side
2-3 Shift Solenoid (2-3 SS) Valve Connector, Wiring Harness Side
Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side
Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

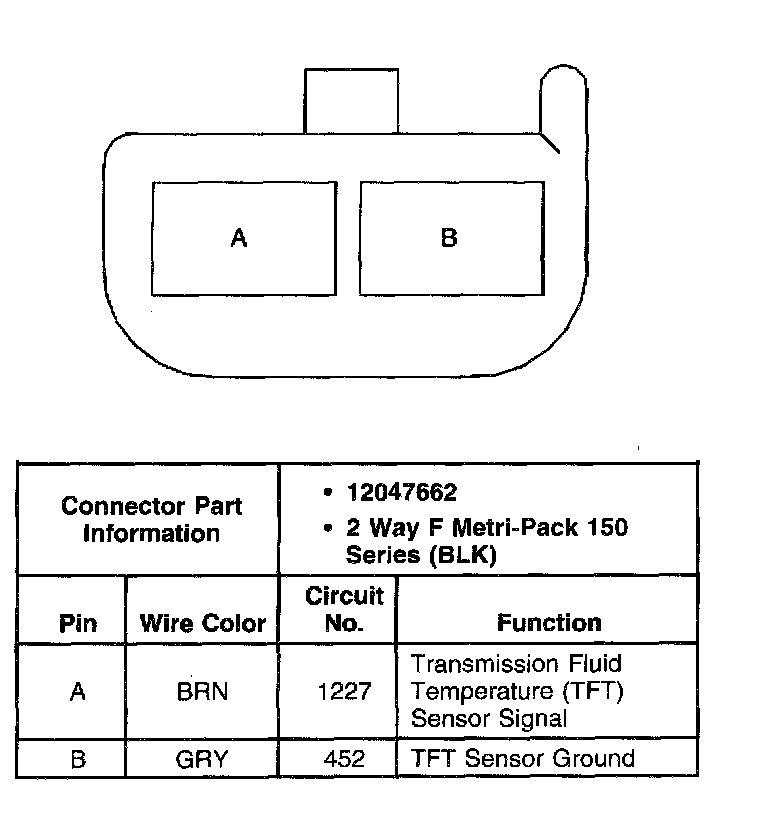

Transmission Fluid Temperature (TFT) Sensor Connector, Wiring Harness Side

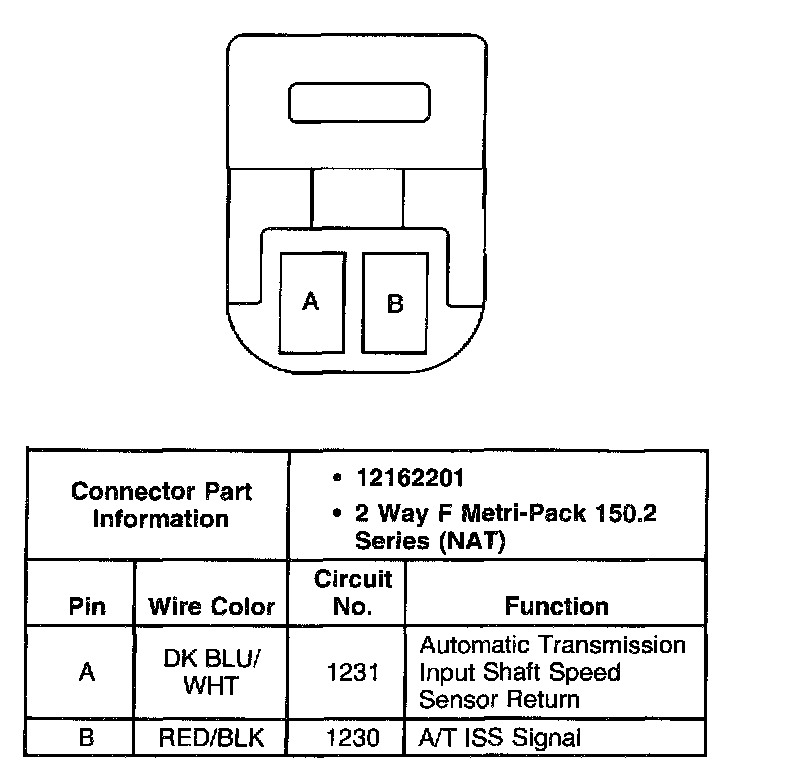

Input Speed Sensor Connector, Wiring Harness Side
