Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1999
>>
Bonneville V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
>>
Park/Turn Lamp, RH Front
Park/Turn Lamp, RH Front

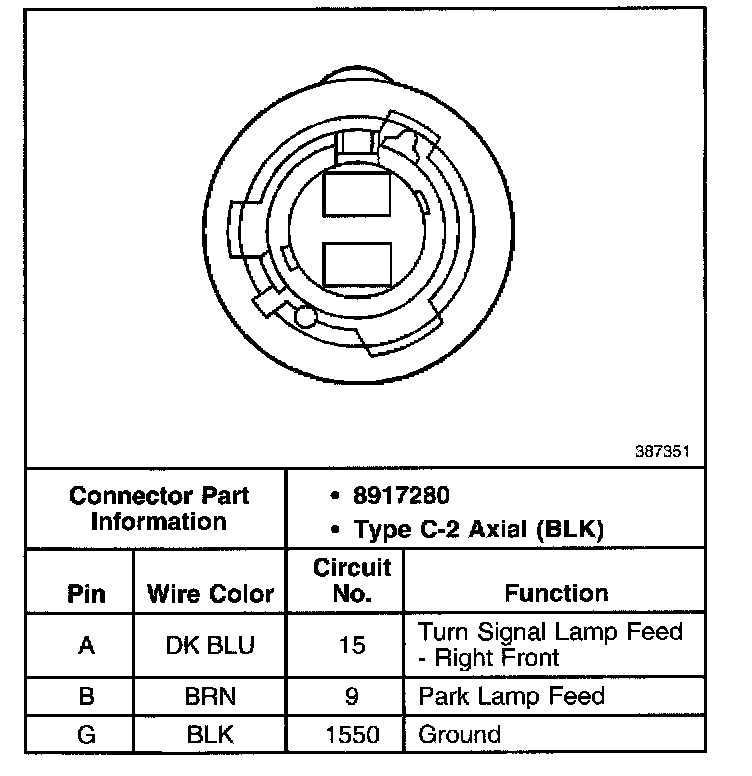

RH Front Park/Turn Lamp:

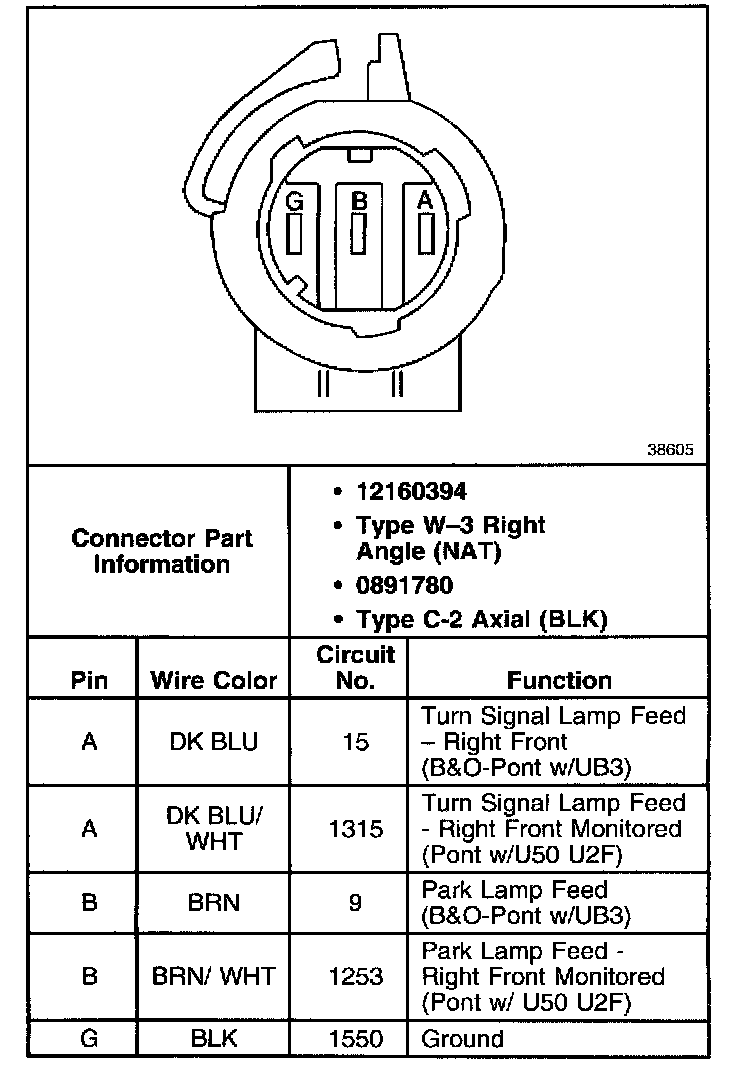

RH Front Park/Turn Lamp:
