Home >> Pontiac >> 1999 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessory Delay Module >> Window Switches

Window Switches

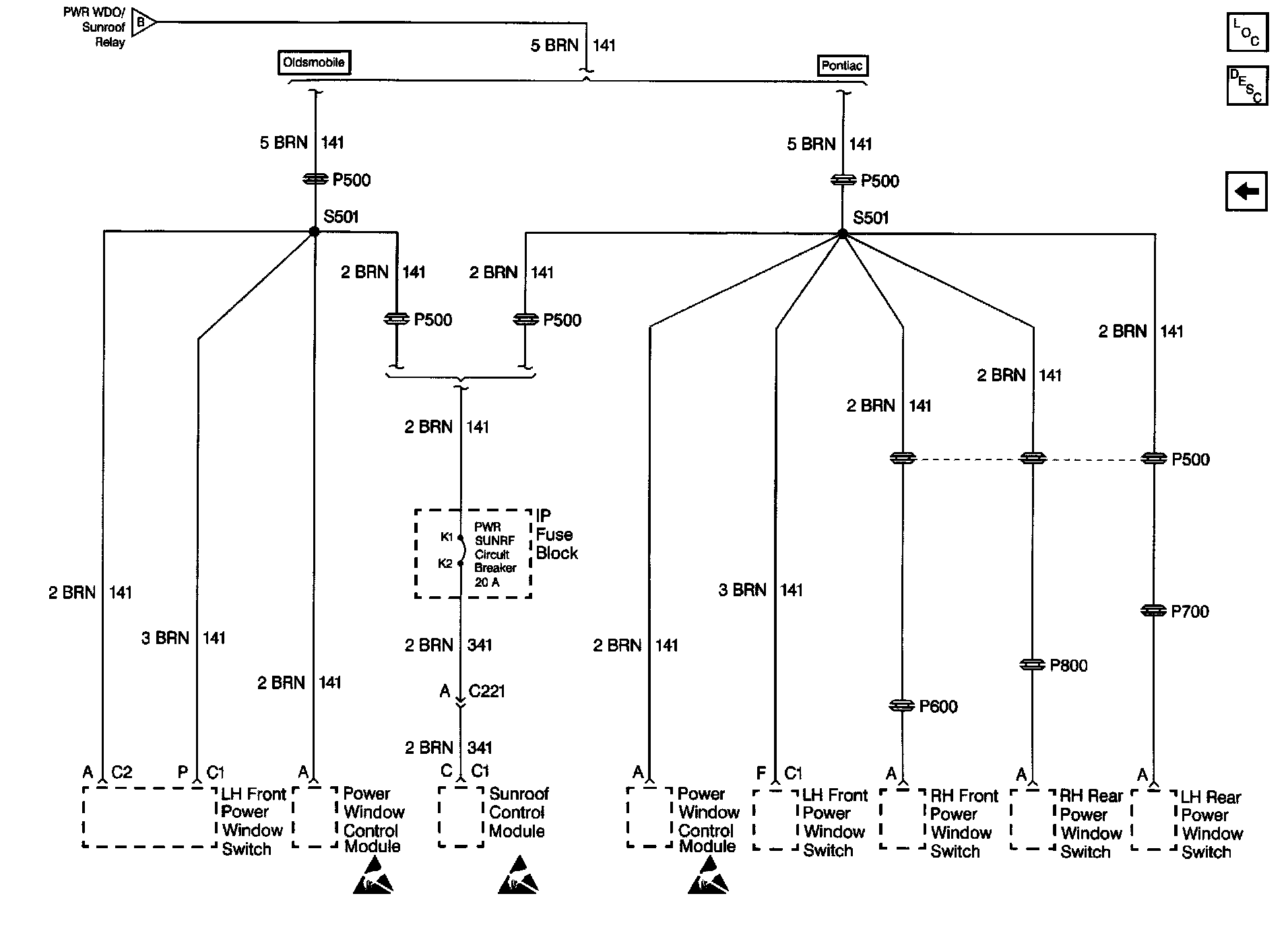

Retained Accessory Power (RAP) Schematics (Pontiac/Oldsmobile): Window Switches:
