Home >> Pontiac >> 1999 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> ABS/TCS Switch, Uart, PCM, & Traction Control Switch

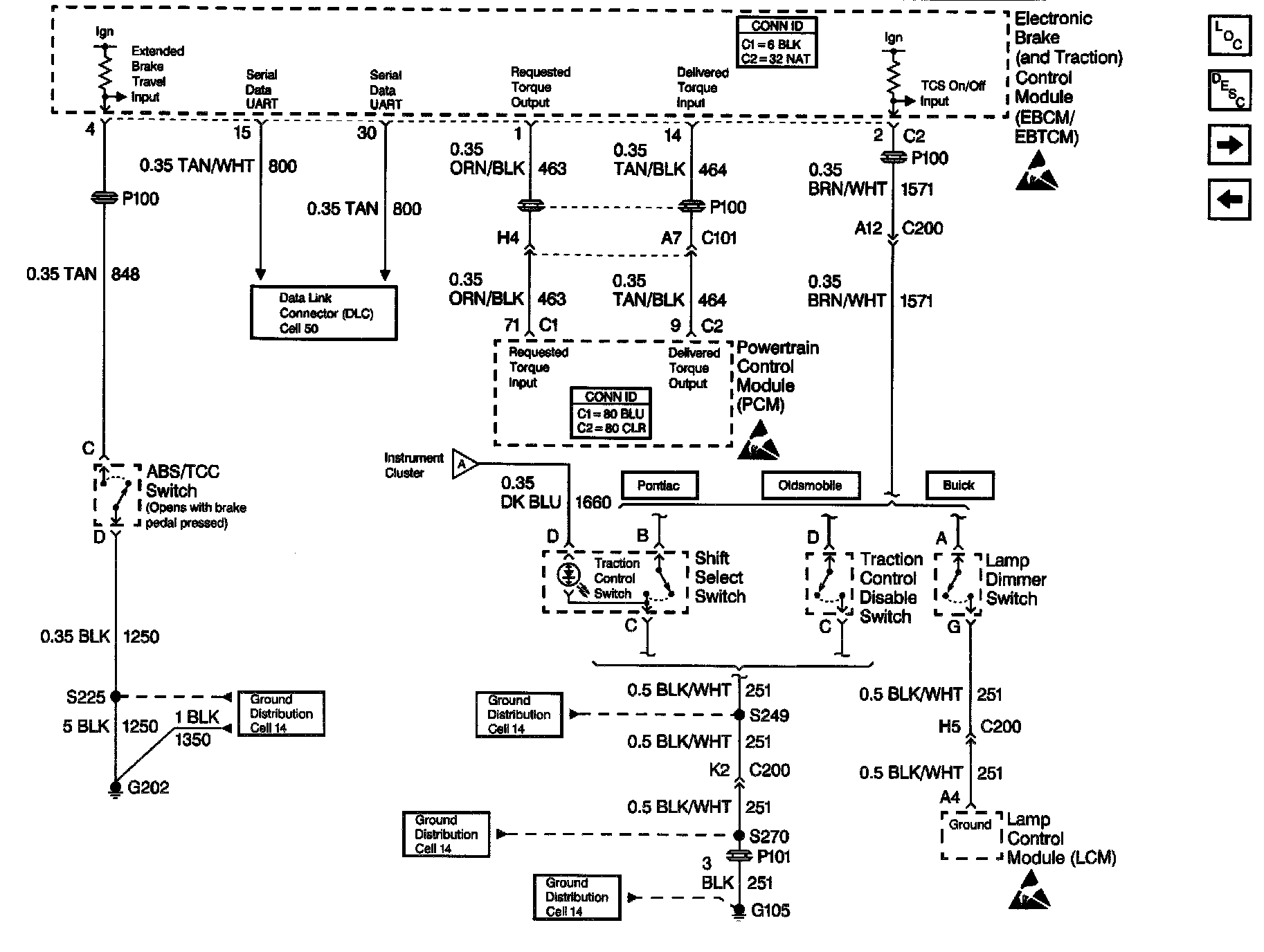

ABS/TCS Switch, Uart, PCM, & Traction Control Switch
