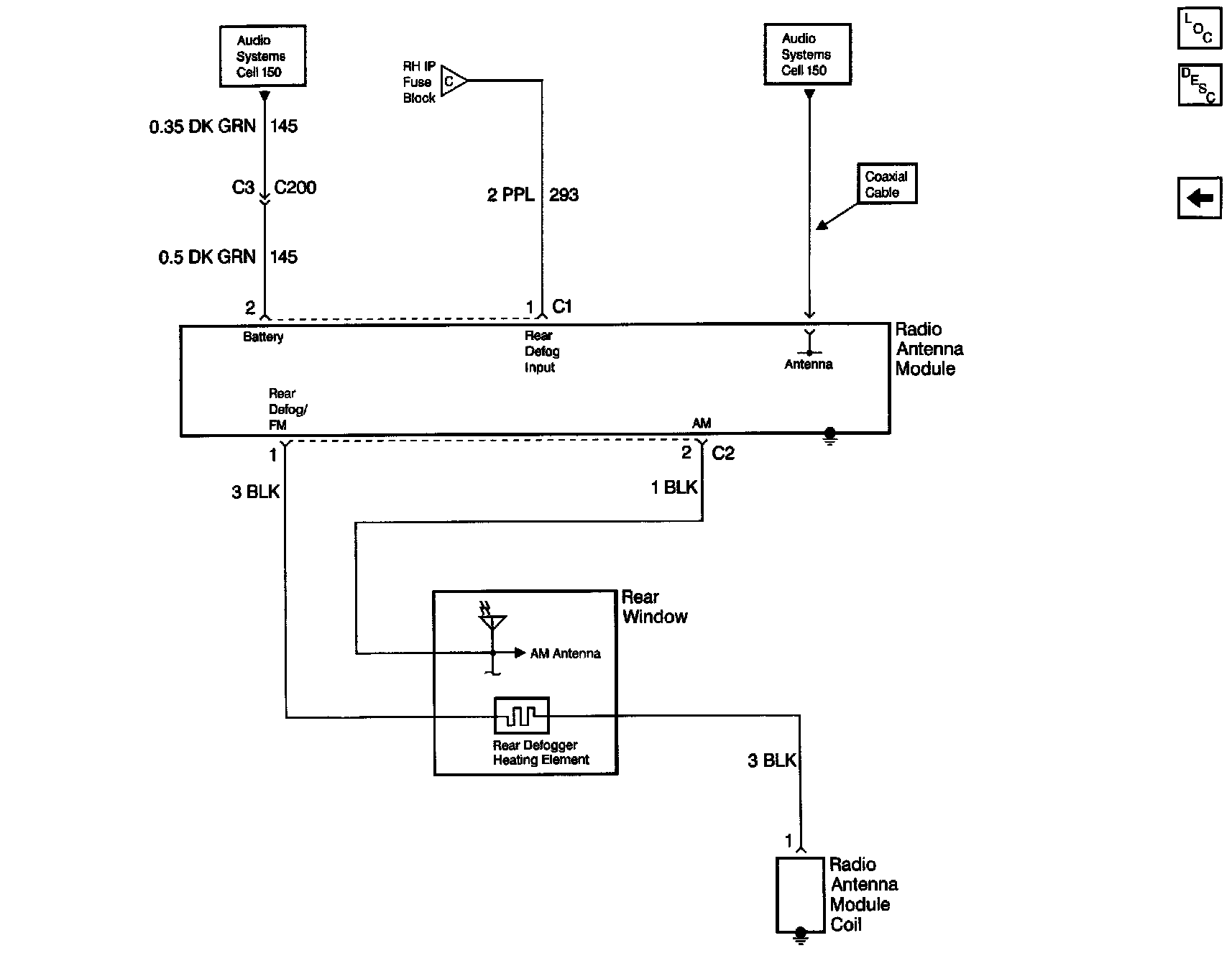

Defogger Schematics

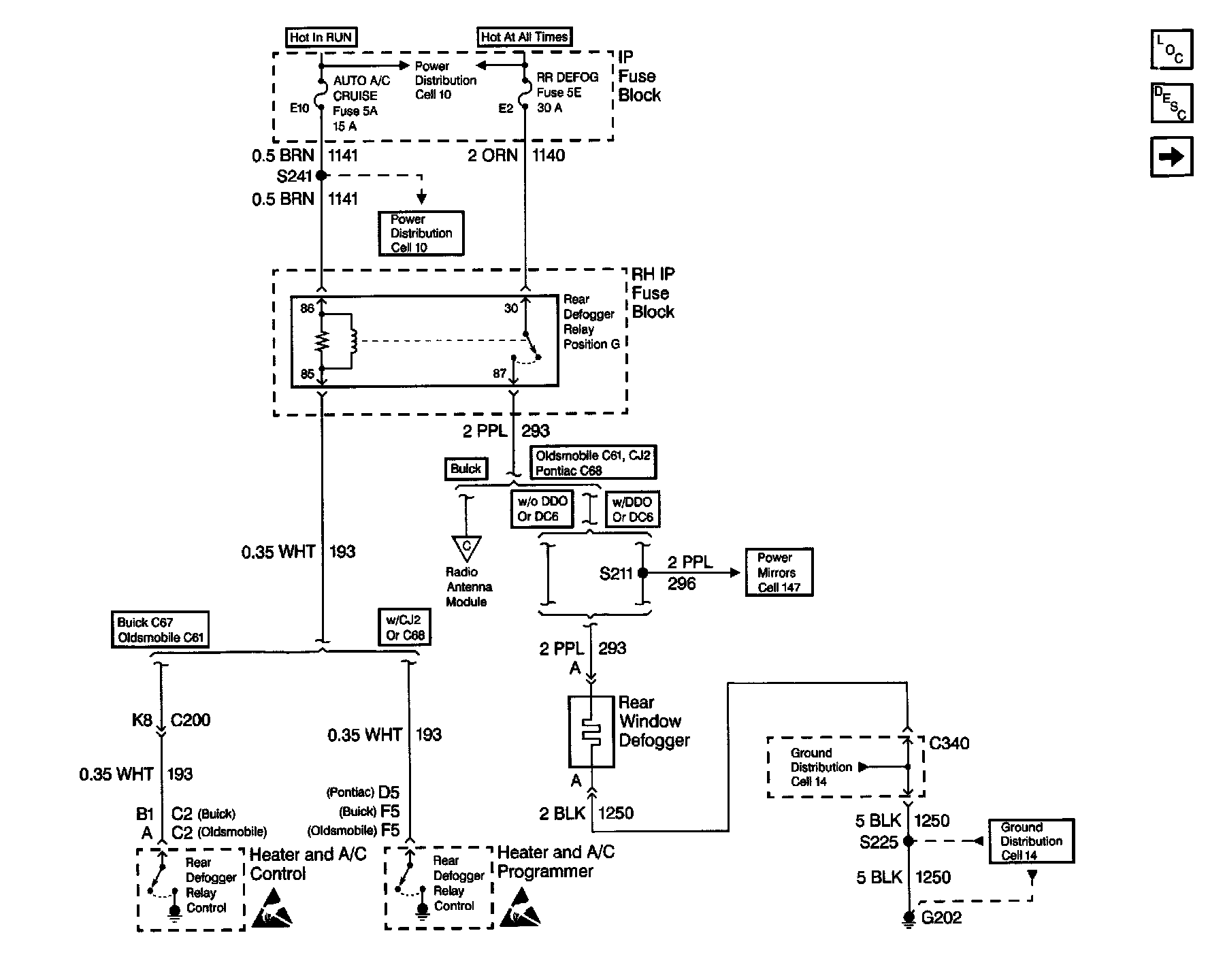

Defogger Schematics: Rear Defogger Relay:

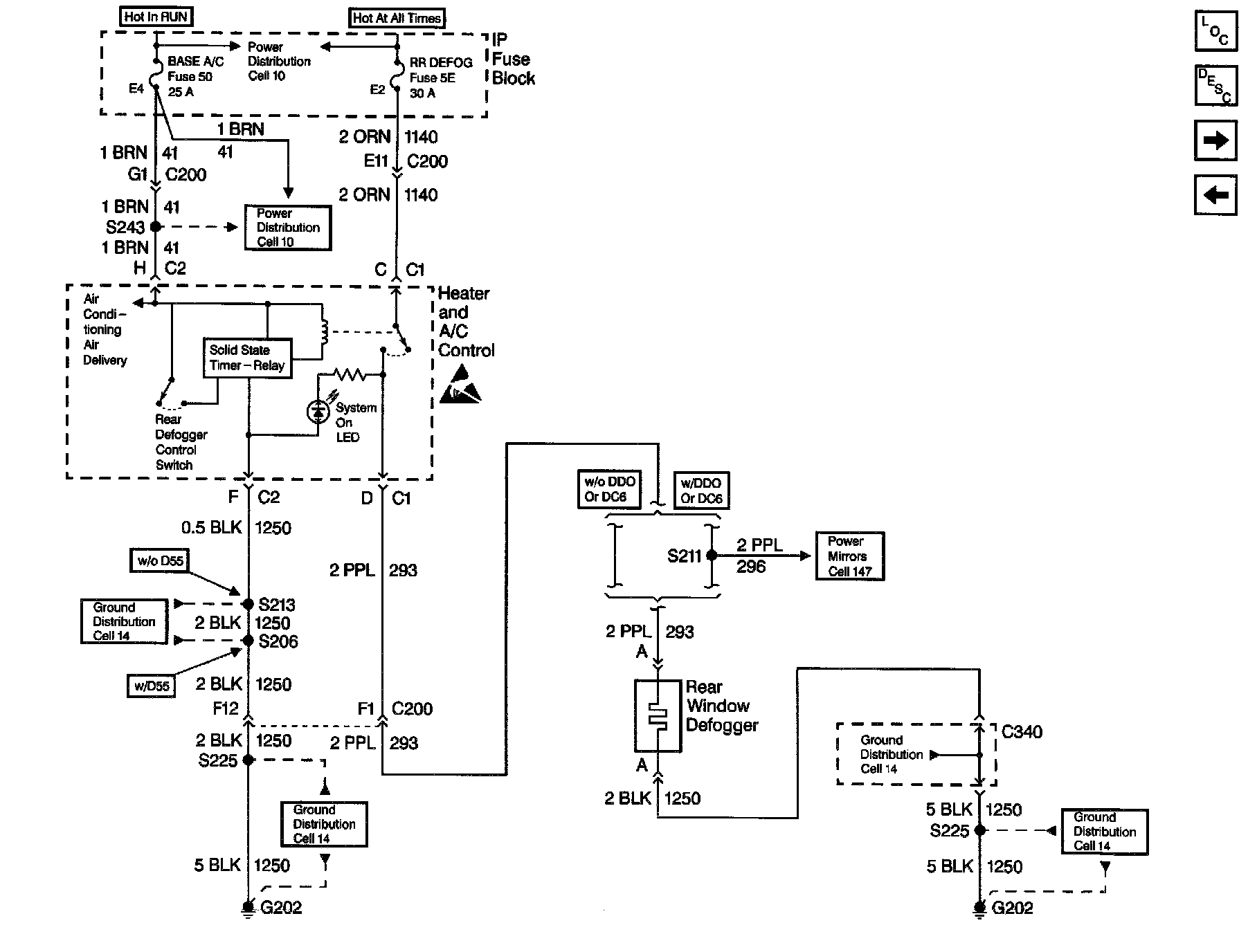

Defogger Schematics: Rear Defogger Switch:



Defogger Schematics: Rear Defogger Switch:
