IGN OFF/UNLOCK
IGN OFF/UNLOCK
Power Distribution Schematics: IGN SW Fuse (Part 2 Of 2):

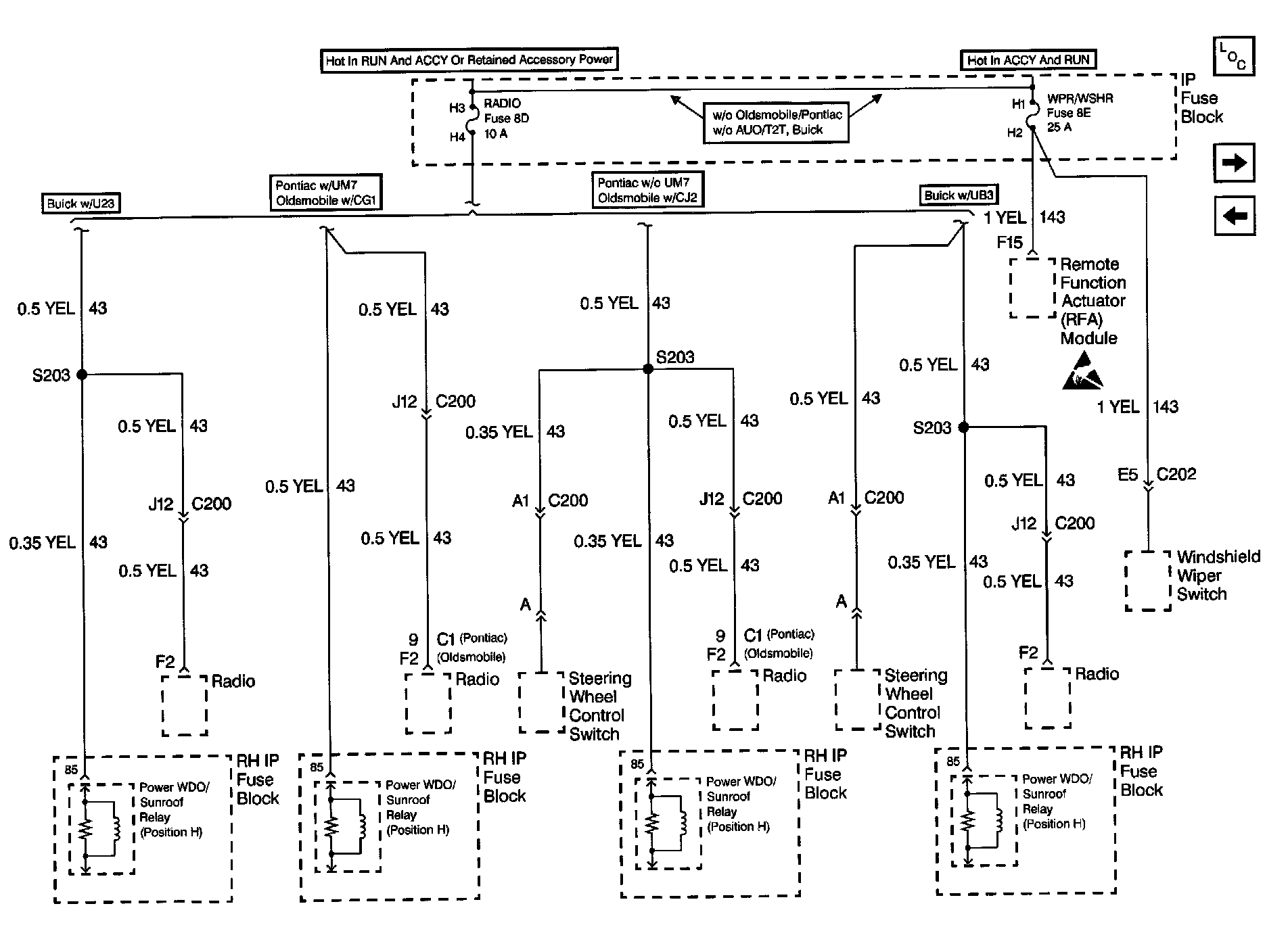

Power Distribution Schematics: RADIO And WPR/WSHR Fuses:
