Instrument Panel (IP) - Defroster Grille Replacement

REMOVAL PROCEDURE

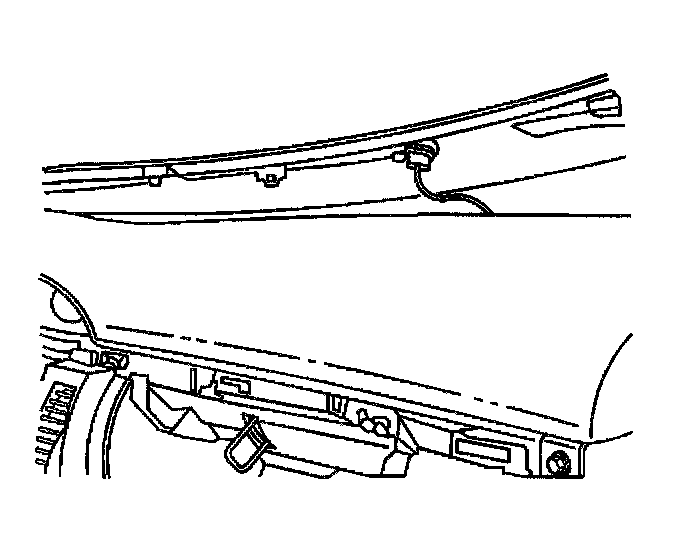

1. Pry upward in order to remove the windshield defroster grille from the IP.
2. Disconnect the sensors, if equipped. Refer to Sunload and Twilight Sentinel Sensor Replacement.
3. Remove the defroster grille.

INSTALLATION PROCEDURE
1. Partially install the defroster grille.
2. Install the sensors into the defroster grille.
3. Insert the forward edge.
4. Press the rear edge into position.
