Instrument Cluster Connector C2 (W/ U50/U2F)
Instrument Cluster Connector C2 (W/ U50/U2F)

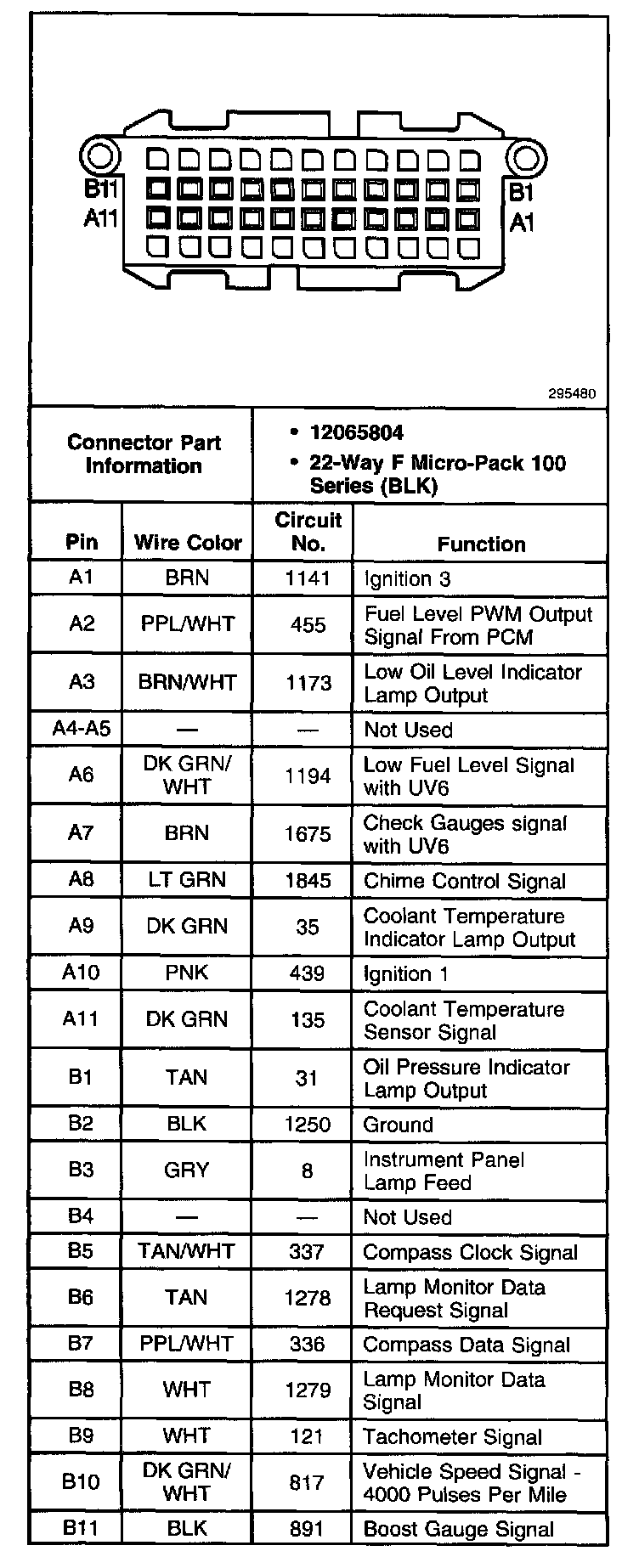

Instrument Cluster Connector C2 (Pontiac W/ U50/U2F):
