Backup Lights

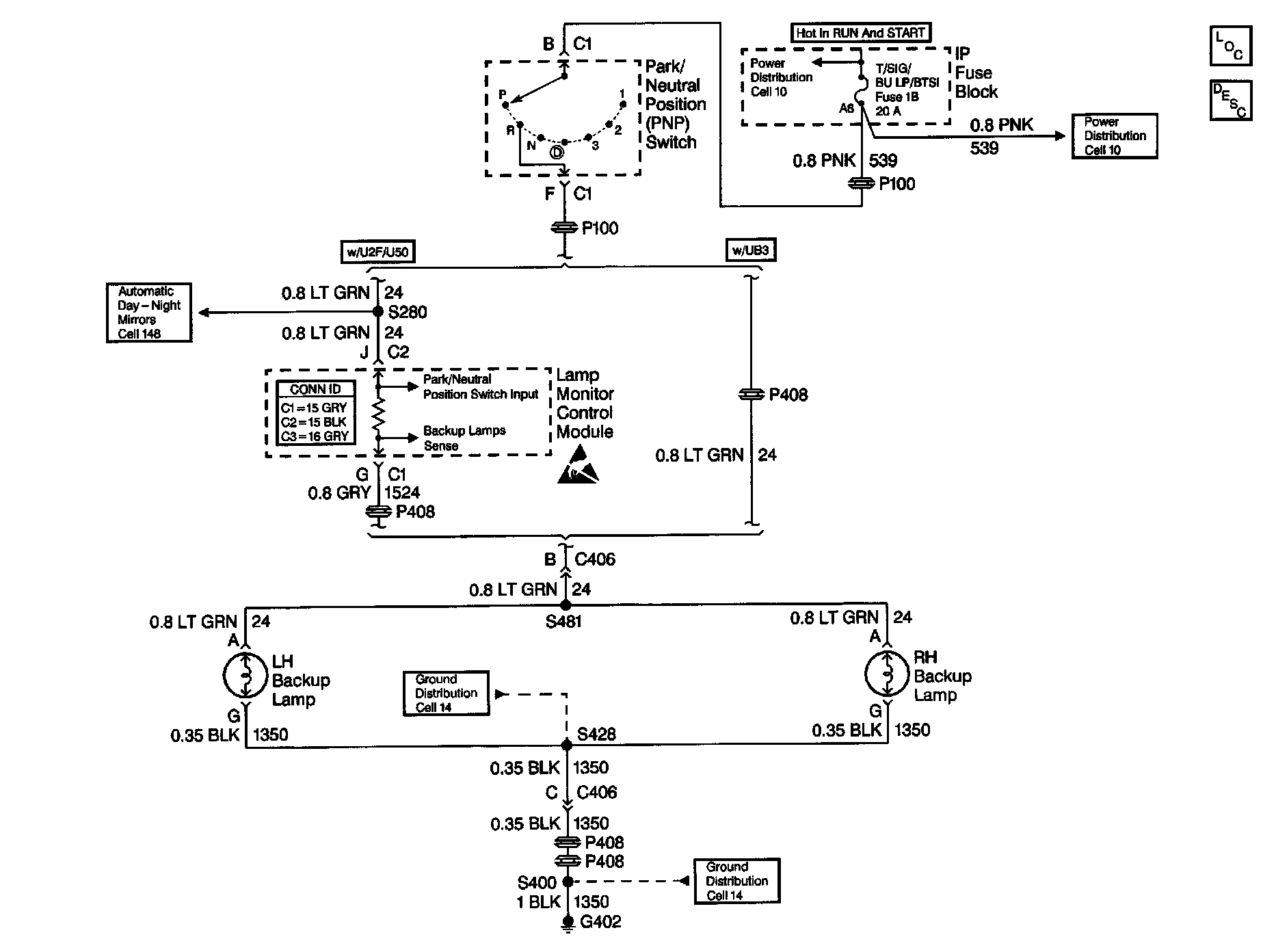

Backup Lights Schematics (Pontiac): PNP Switch, Adaptive Lamp Monitor Control Module, Backup Lamps:
