Horn Replacement (A Note)

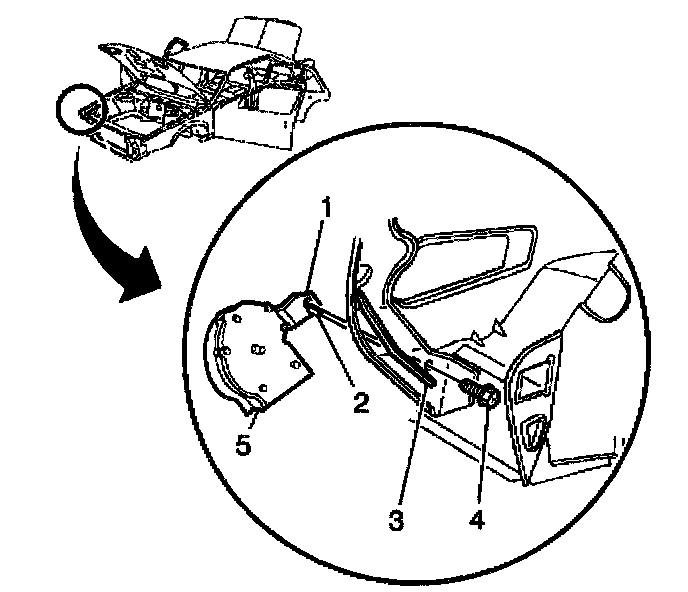

REMOVAL PROCEDURE
1. Remove the coolant recovery reservoir.
2. Remove the horn stud from the right front fender.
3. Remove the horn.
4. Disconnect the connector from the horn.

INSTALLATION PROCEDURE
1. Install the horn connector to the horn.
2. Install the horn to the front tender.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the horn stud to the front fender.

Tighten
Tighten the horn stud to 15 N.m (11 lb ft).

4. Install the coolant recovery container.
