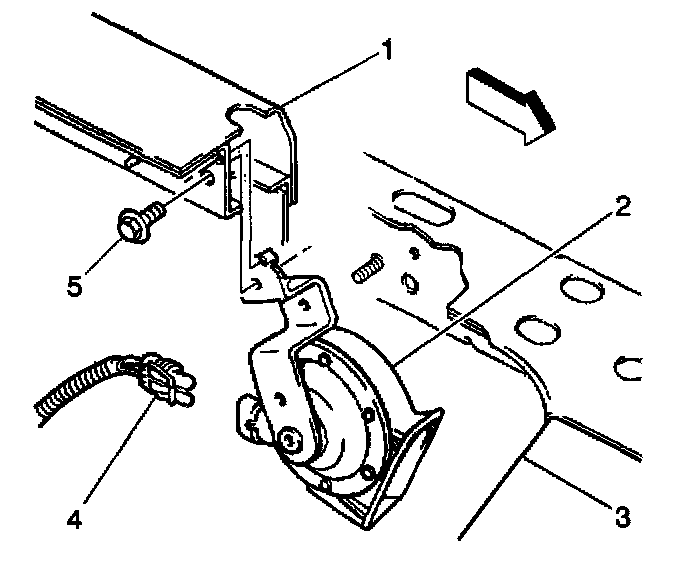

Horn Replacement (F Note)

REMOVAL PROCEDURE
1. Remove the air cleaner assembly.
2. Remove the PCM.
3. Remove the horn bolt from the left front fender
4. Remove the horn.
5. Disconnect the connector from the horn.

INSTALLATION PROCEDURE
1. Connect the horn connector to the horn.
2. Install the horn to the front fender.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the horn bolt to the front fender.

Tighten
Tighten the horn bolt to 15 N.m (11 lb ft).
