Powertrain Controls

PCM Power, Grounds, MIL and DLC

MIL Control

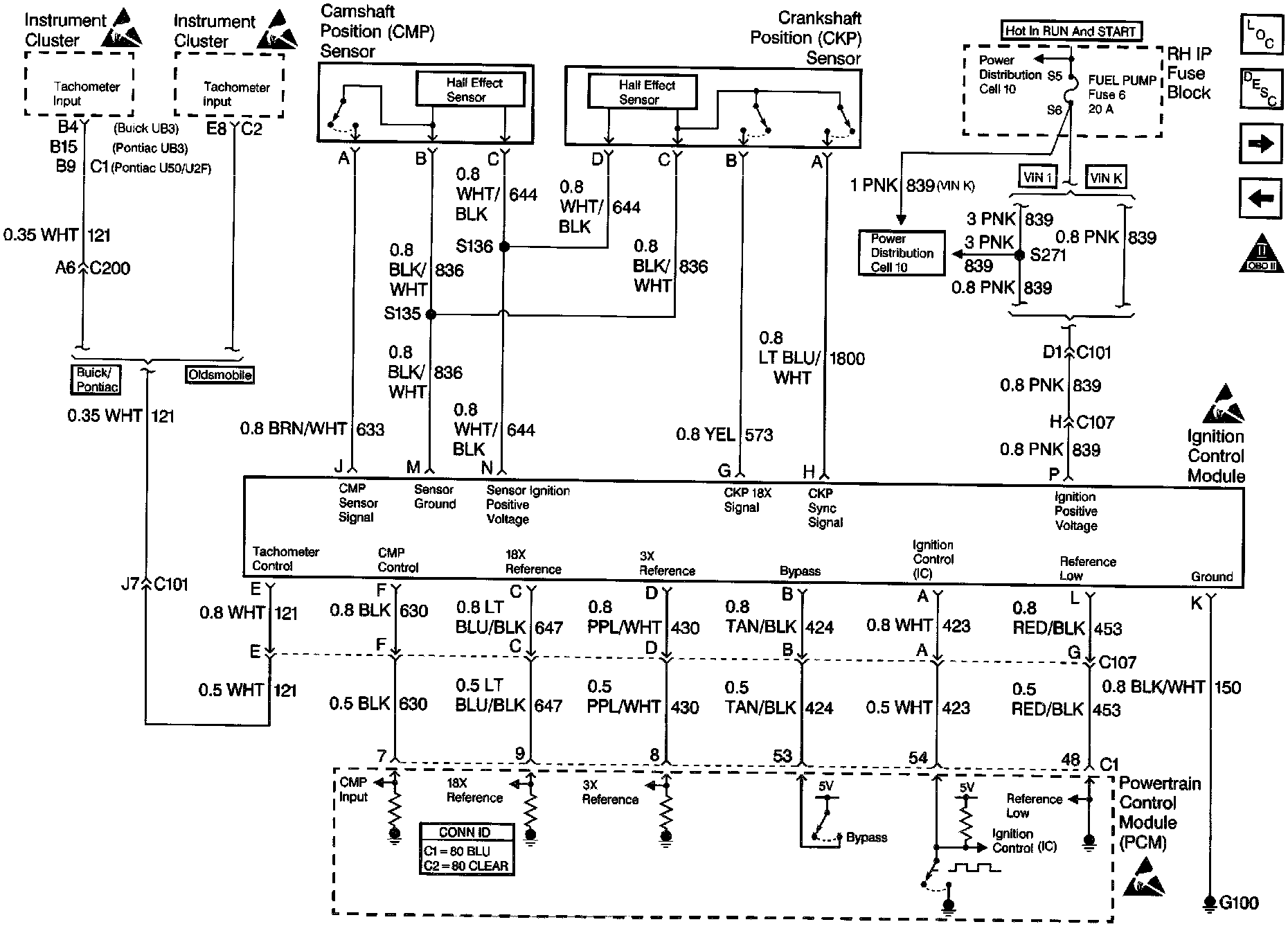

Ignition Control Module

Vin K:

Fuel Control (Vin K)

Vin 1:

Fuel Control (Vin 1)

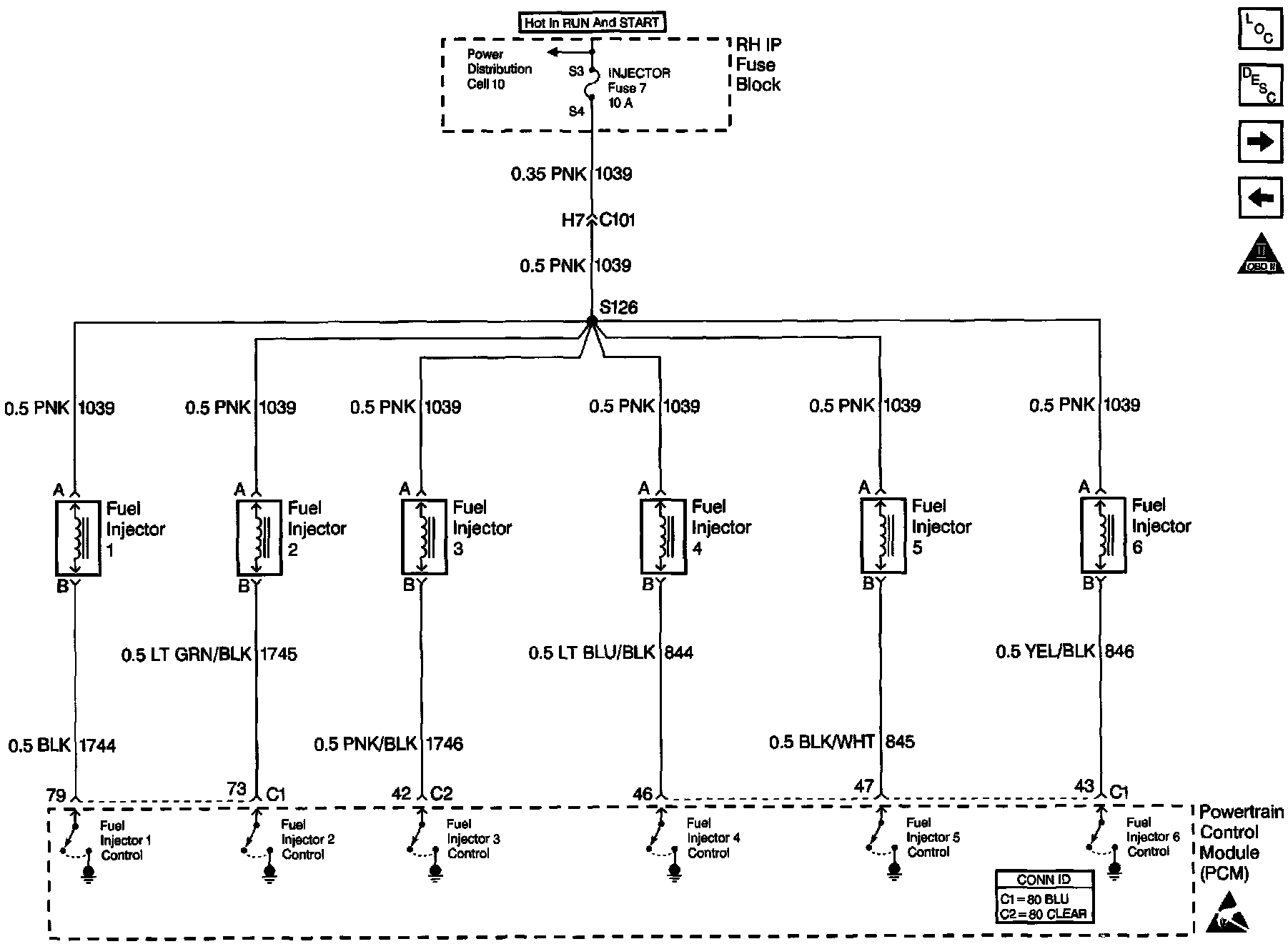

Fuel Injectors

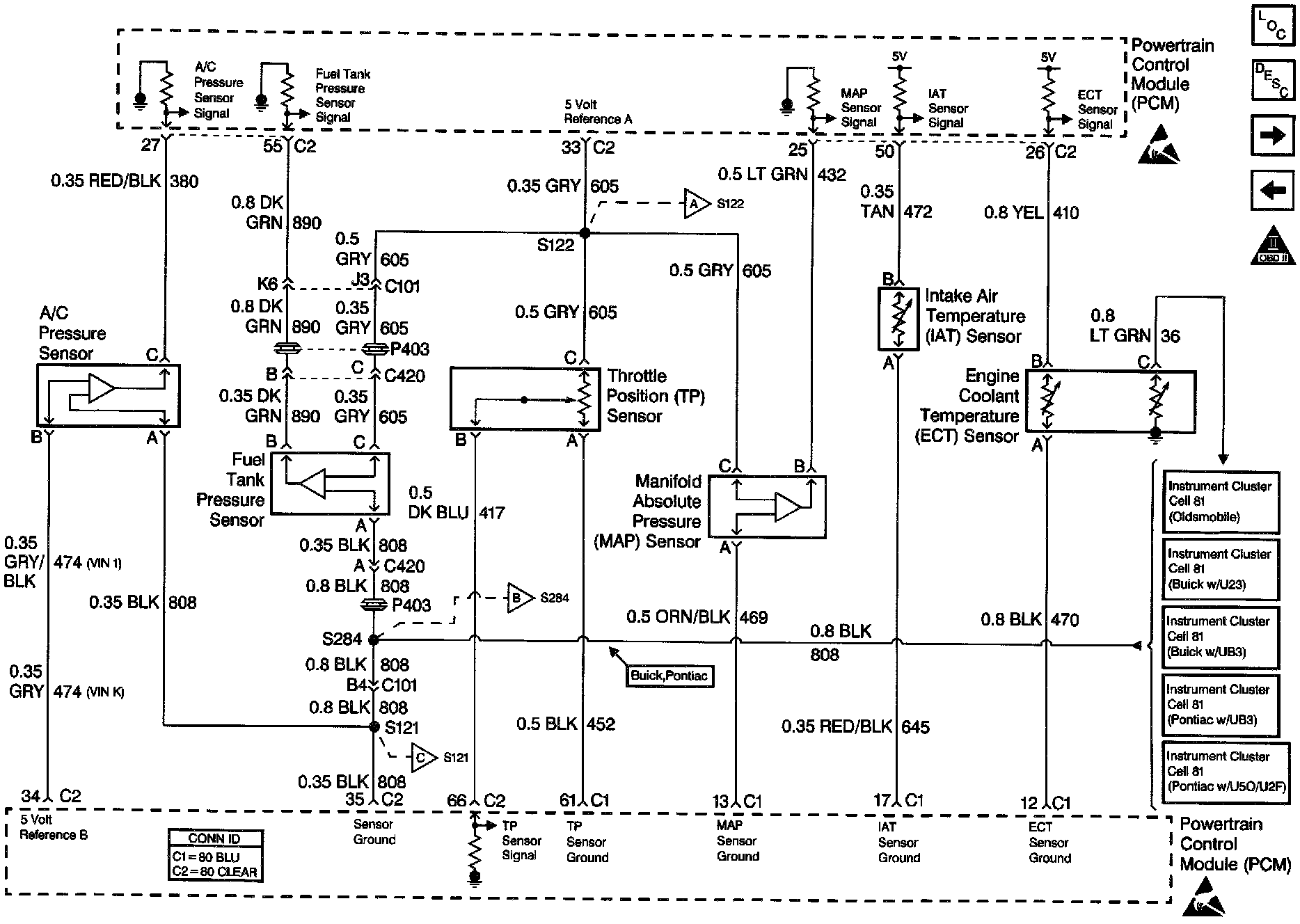

Sensors

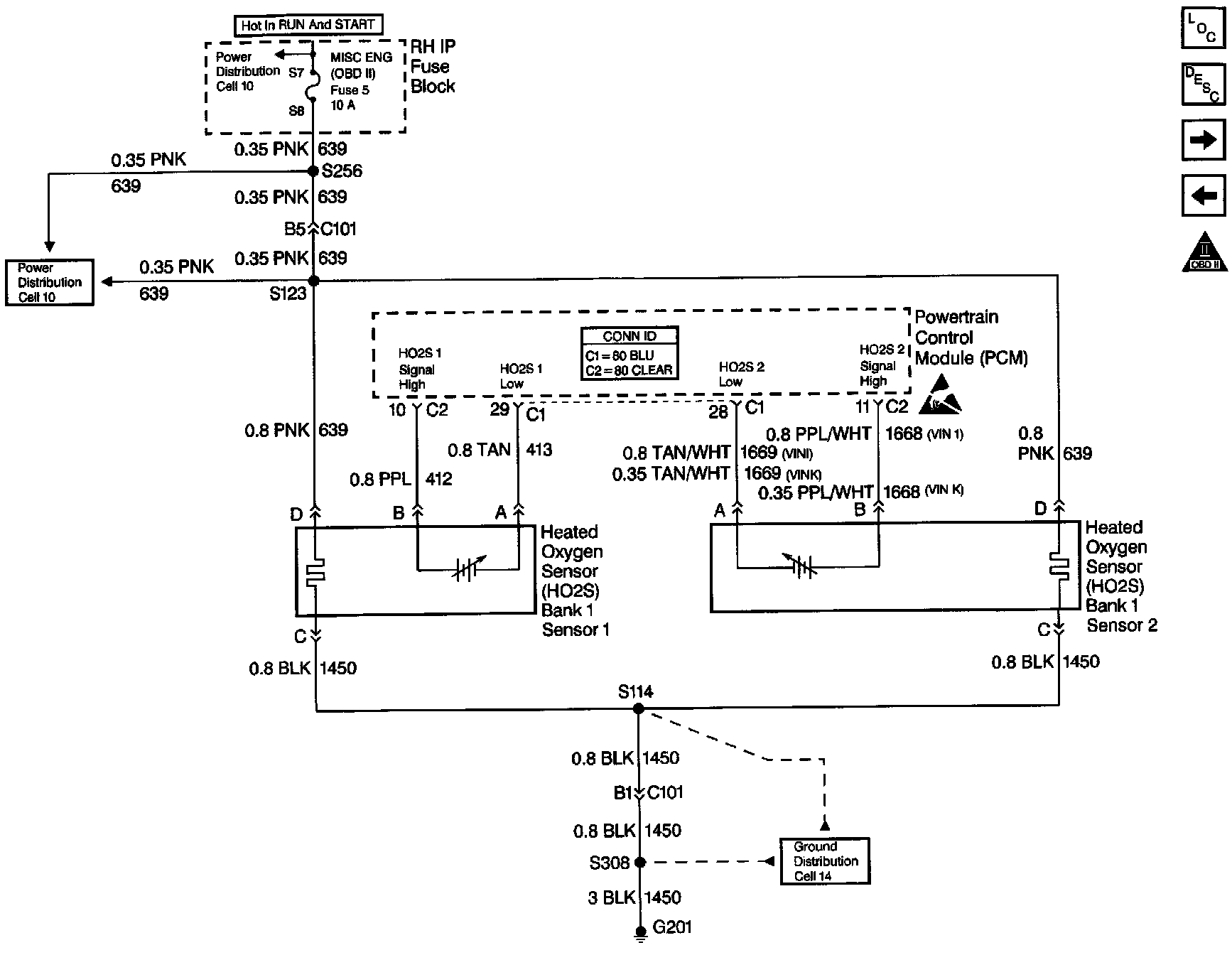

HO2 Sensors

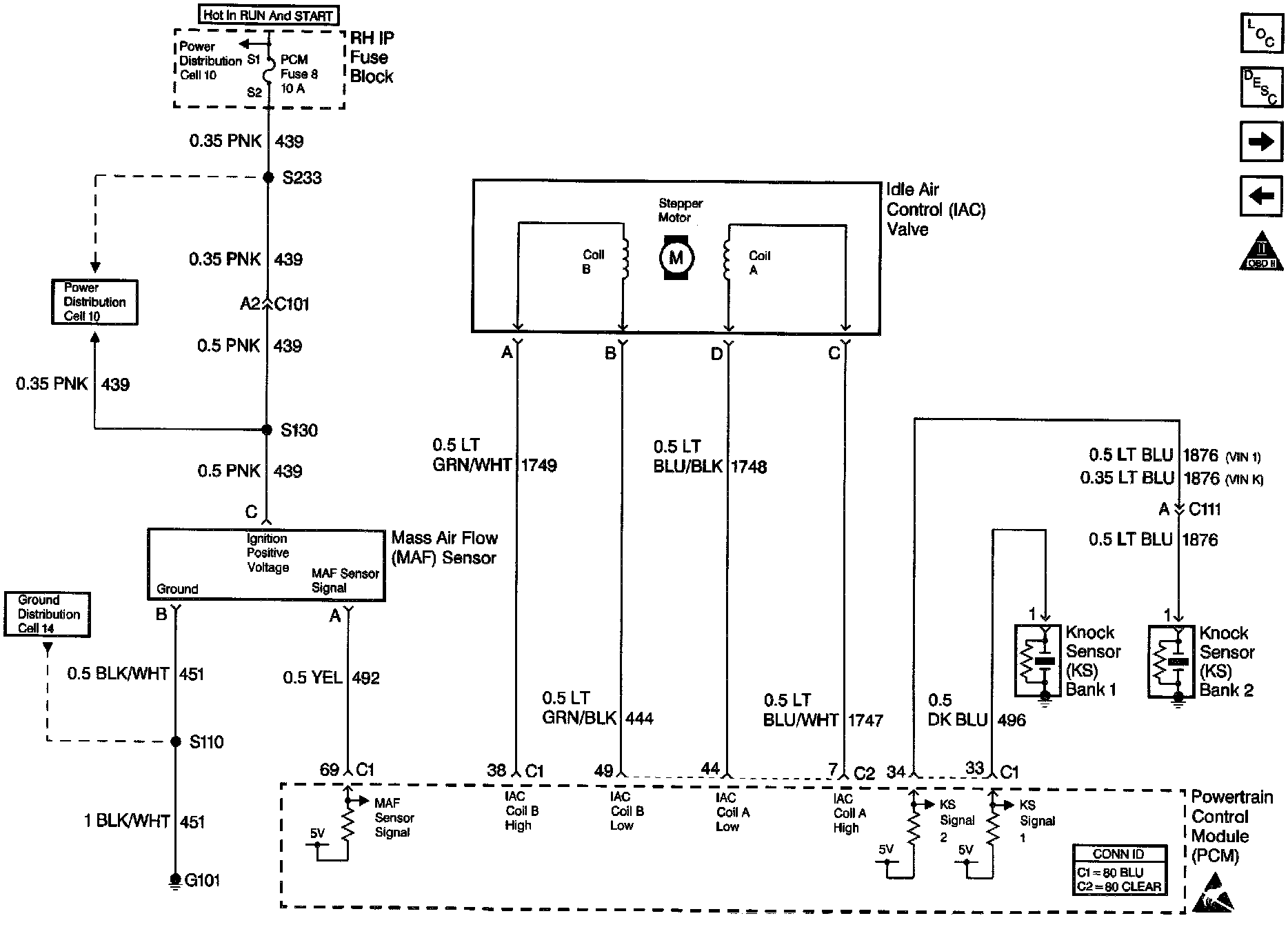

MAF, IAC and Knock Sensors

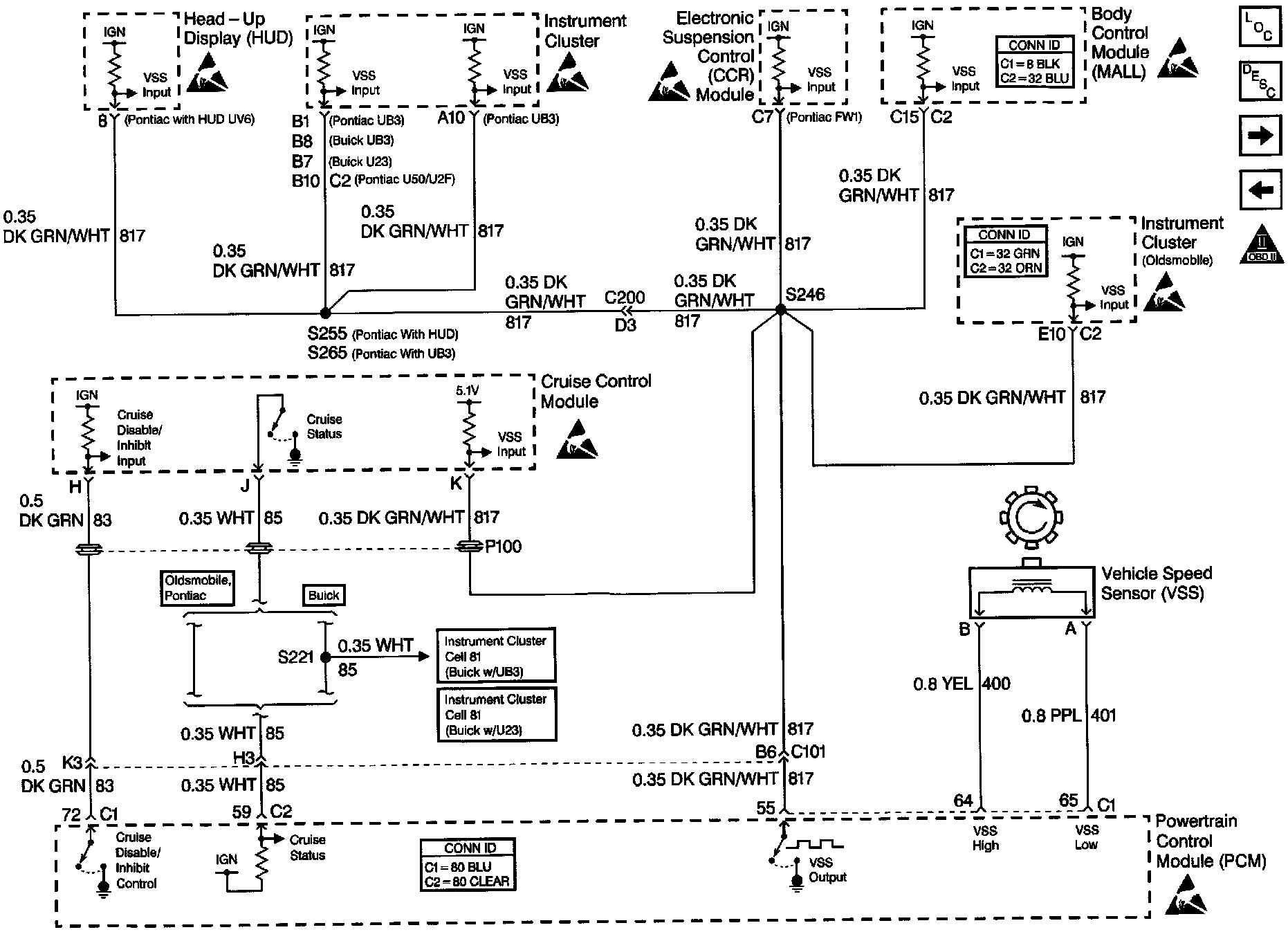

VSS and Cruise Control Module

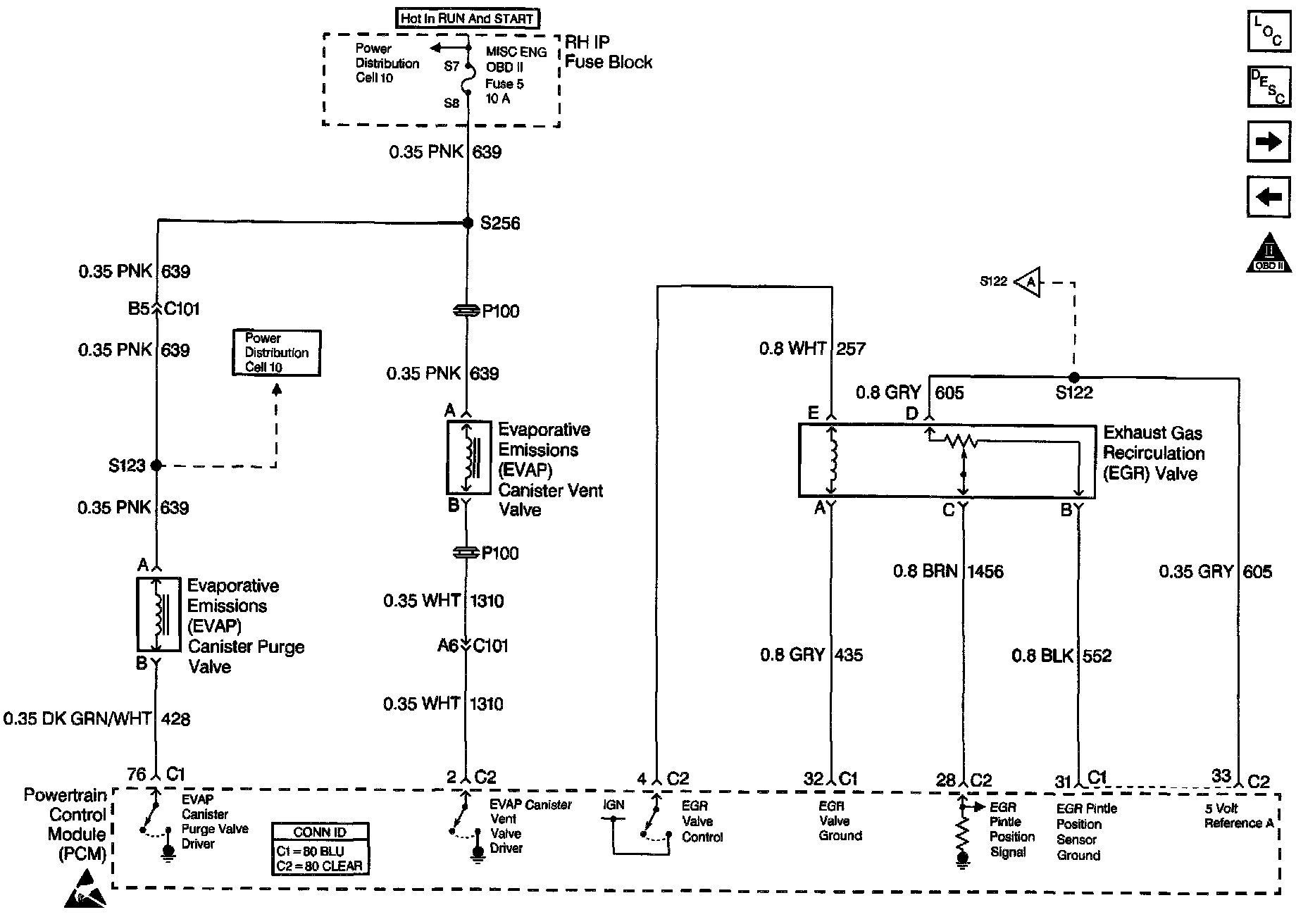

EGR Valve and EVAP System

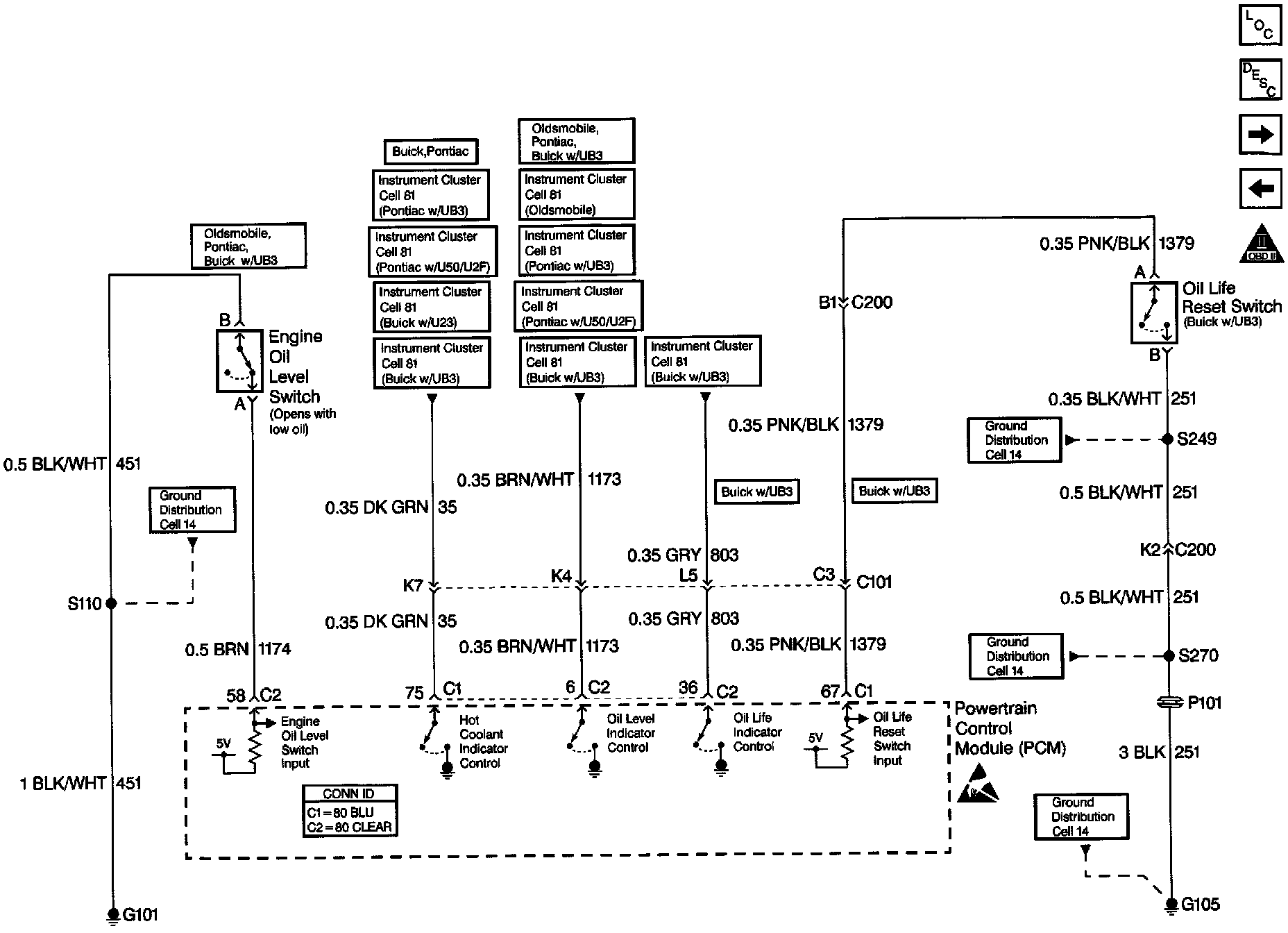

Oil Life, Oil Level Switches

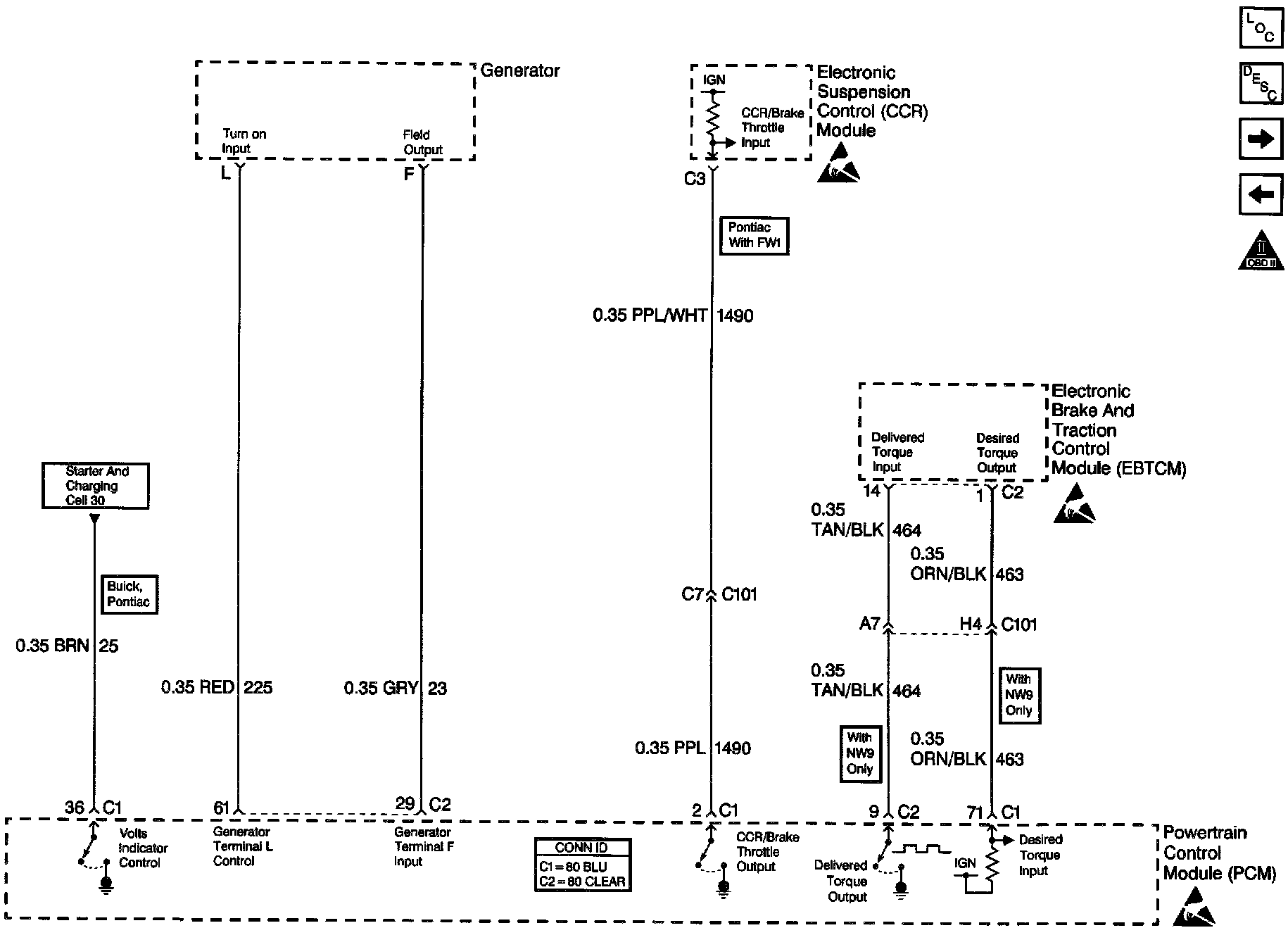

Generator, CCR, EBTCM

Transaxle Solenoids

Transaxle Sensors and TR Switch

Buick/Pontiac:

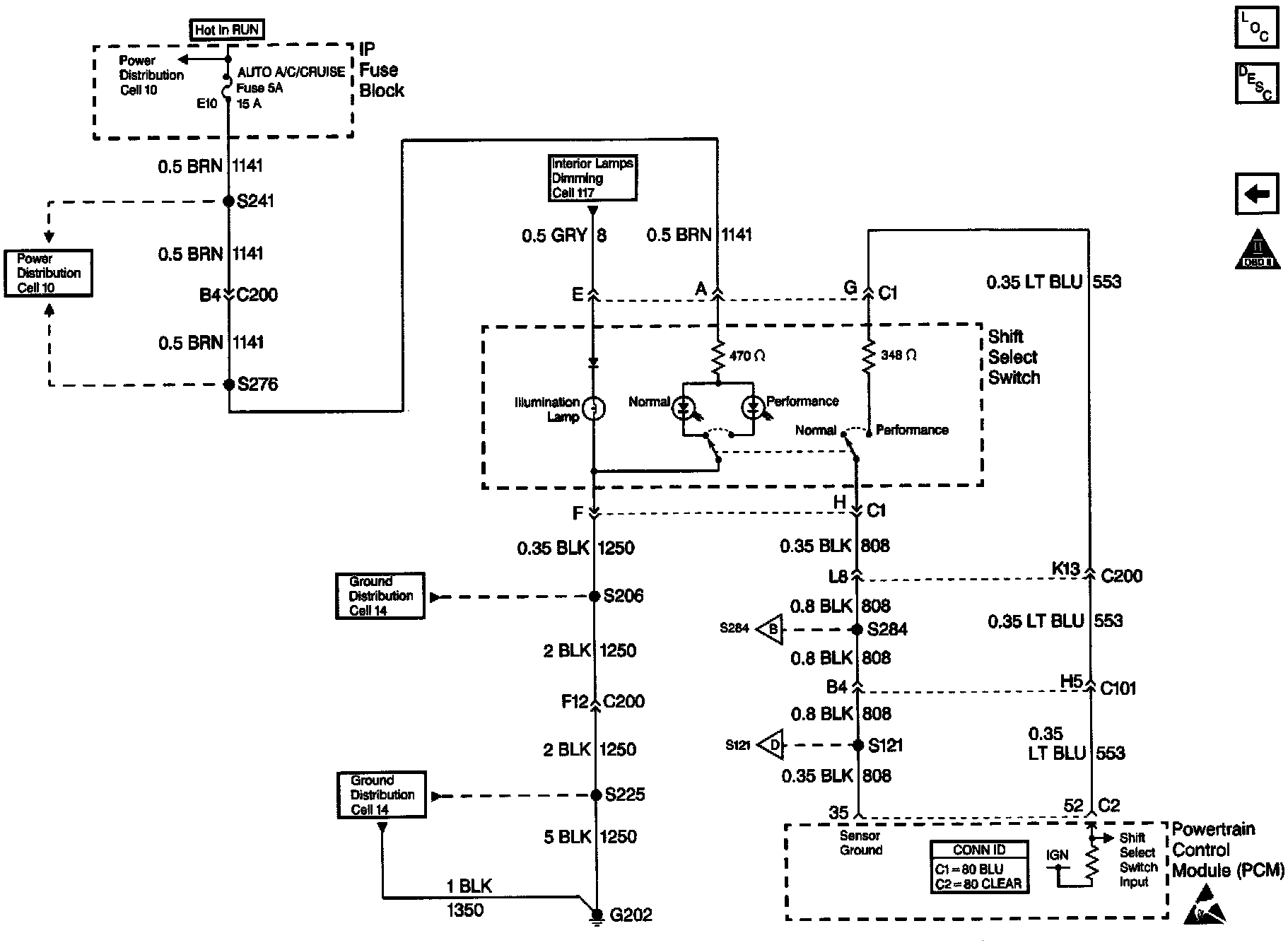

Shift Select Switch

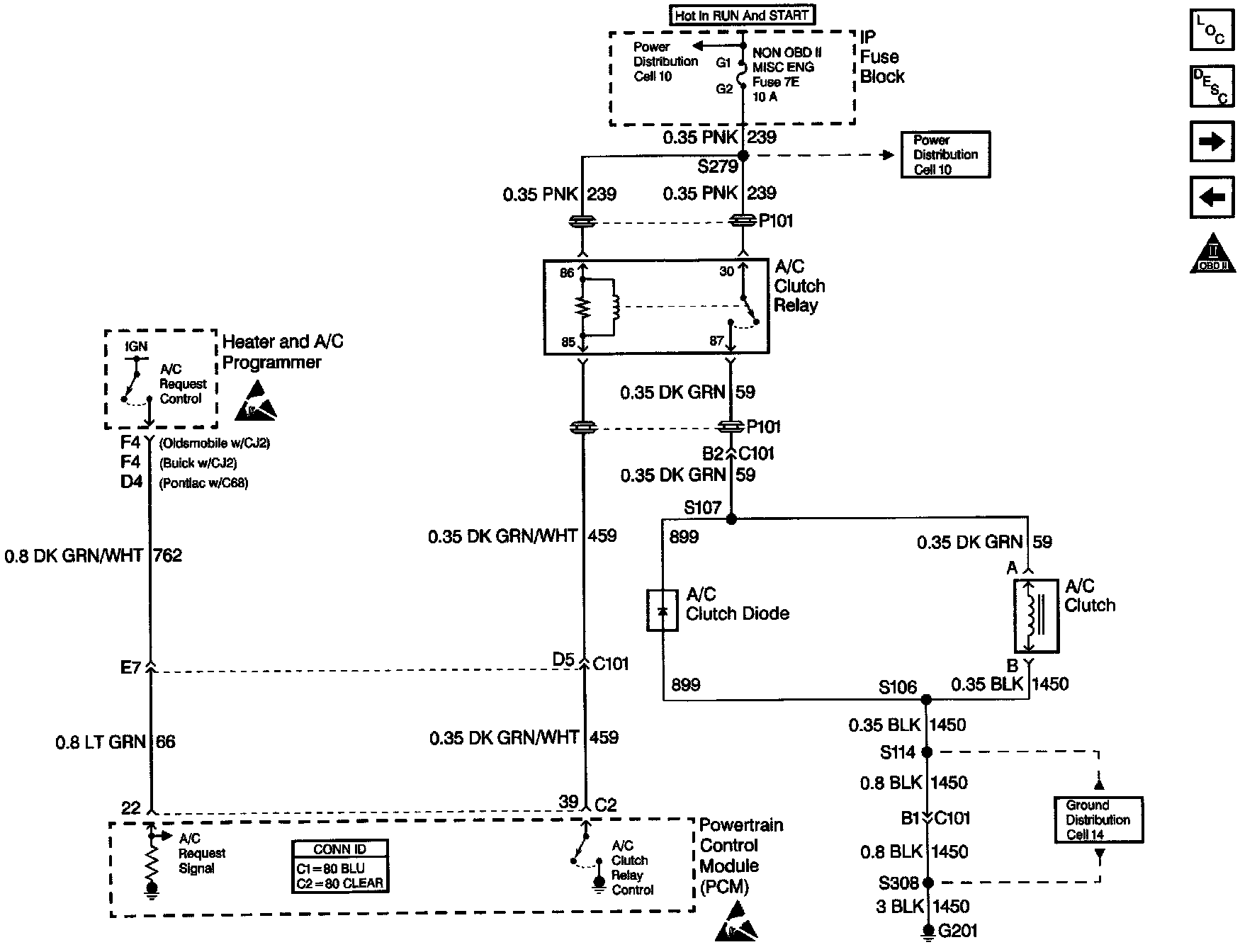

A/C Clutch Control (Without Electronic Climate Controls or Dual Zone)

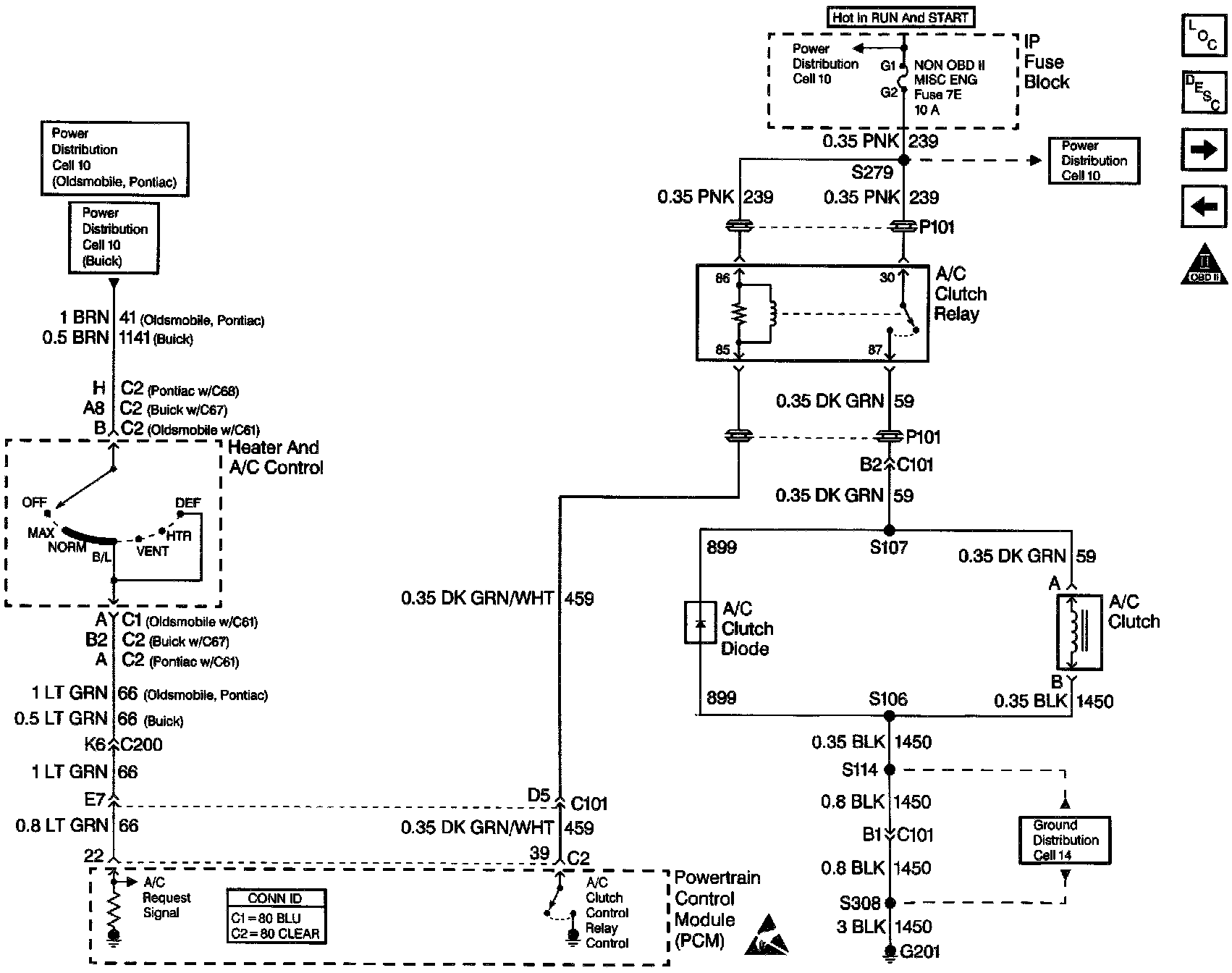

A/C Clutch Control (With Electronic Climate Controls or Dual Zone)

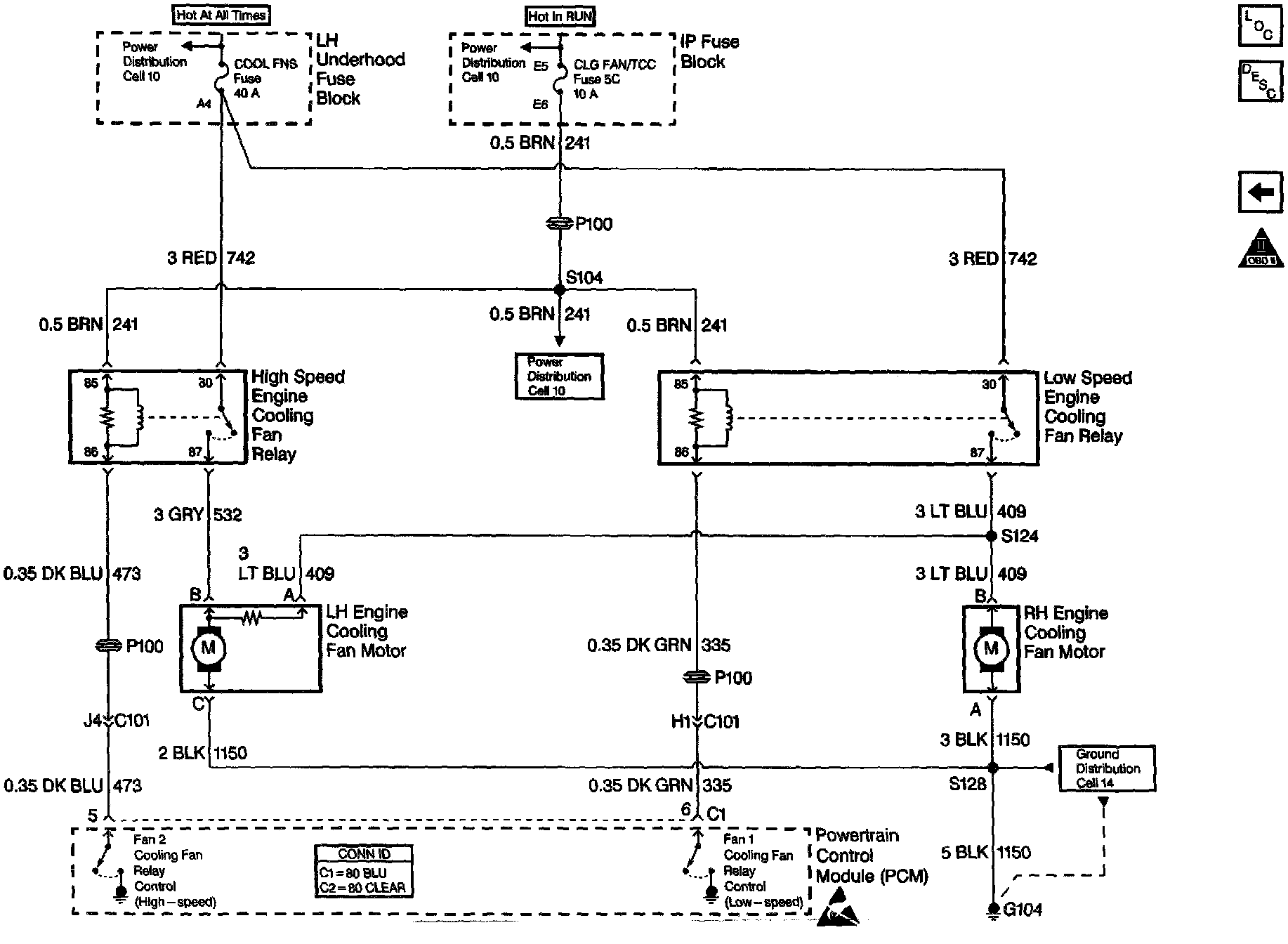

Cooling Fans
