VOLT Indicator Controls
VOLT Indicator Controls

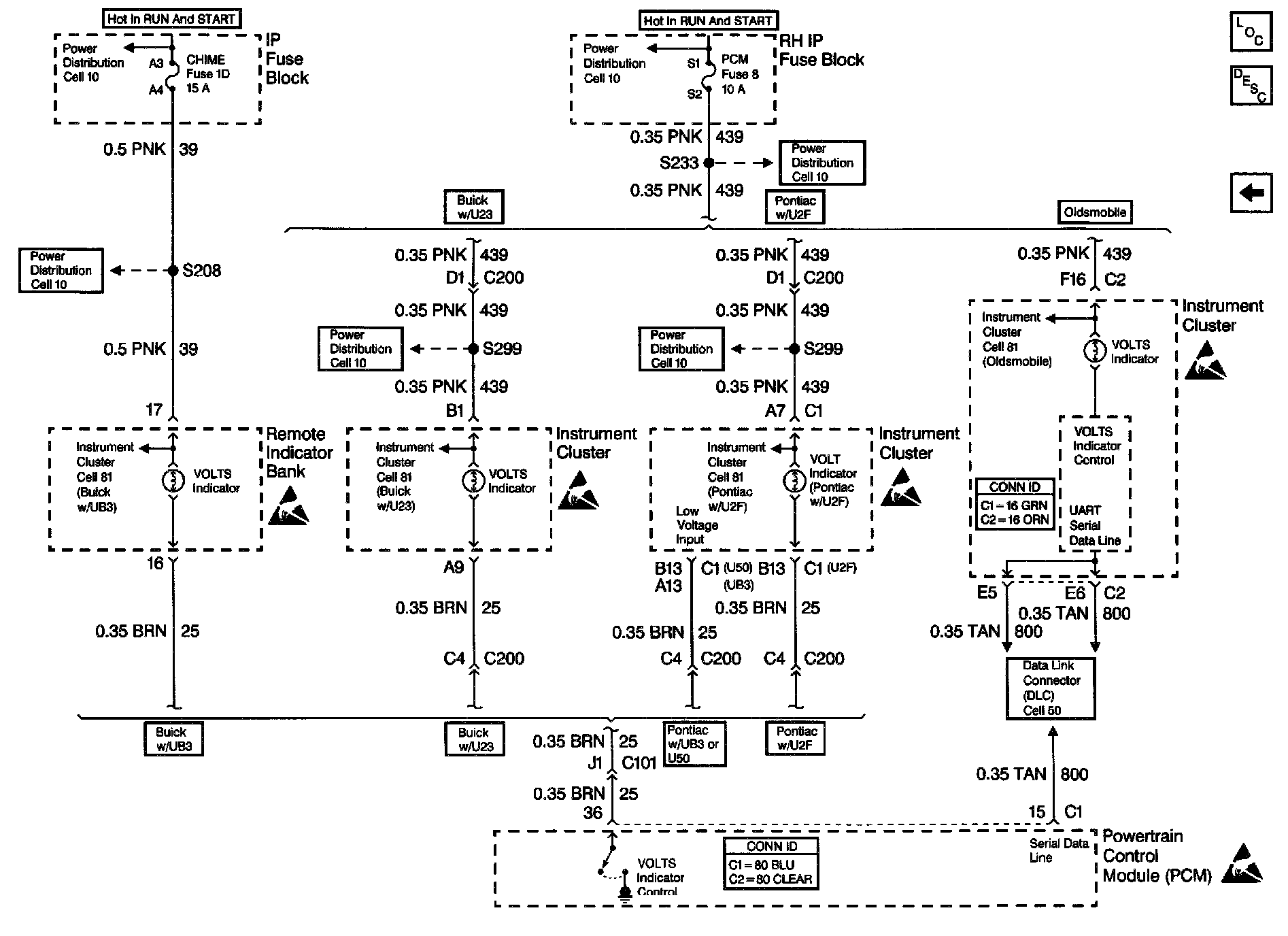

Starting And Charging Schematics: VOLT Indicator Controls:
