Wiper Blade Element Check

Blade Element Set Check:

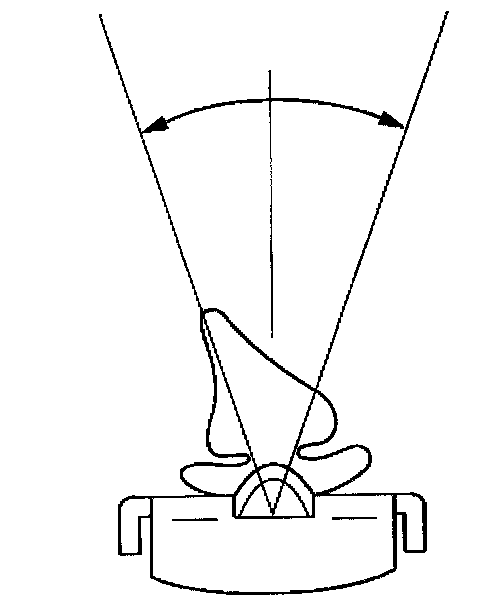

Remove the wiper blades from the wiper arms. Look down the length of the blade element. The rubber element which contacts the glass must be on the centerline of the blade +/-15 degrees. Replace the element if necessary.
