Home >> Pontiac >> 1999 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Console Seat Switch C3

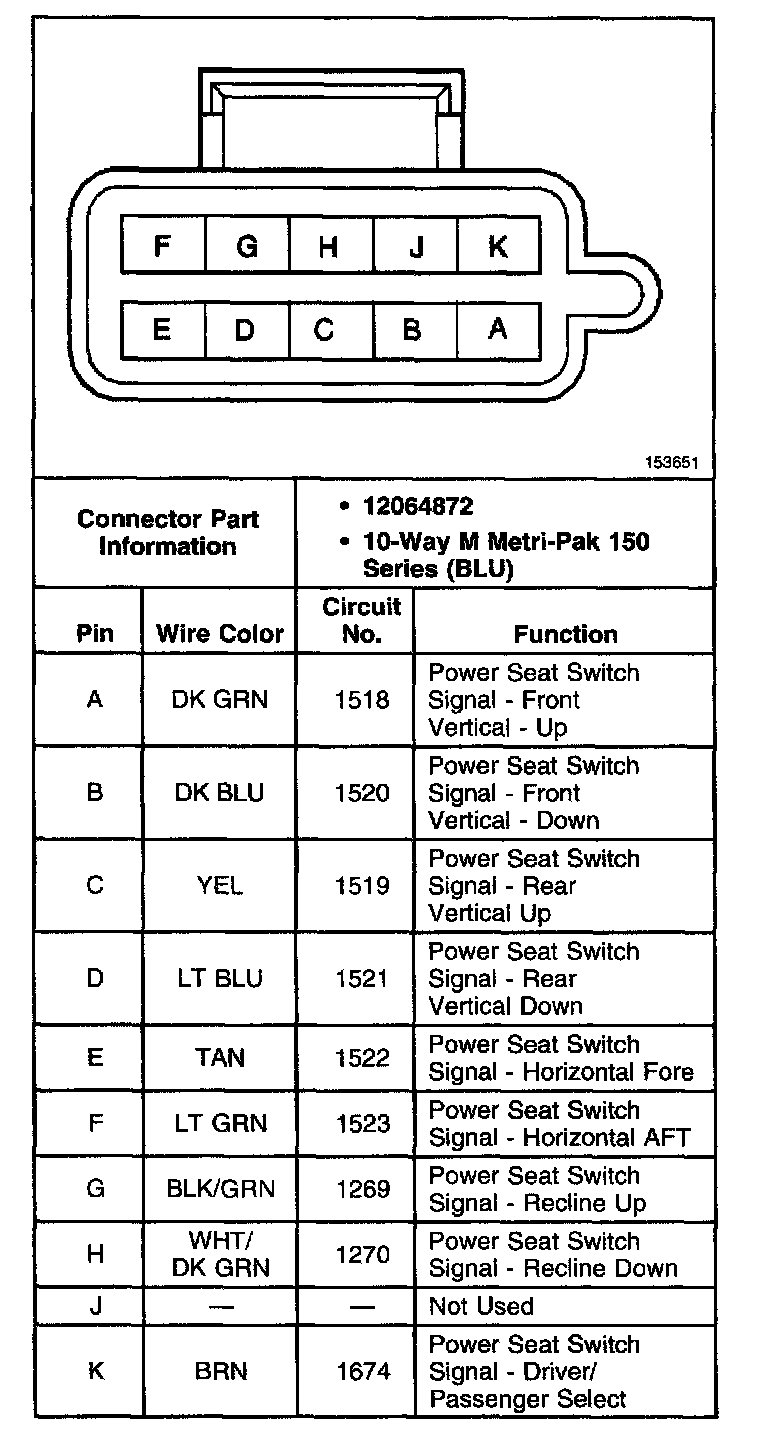

Console Seat Switch C3

Console Seat Switch C3:
