Pontiac
>>
1999
>>
Bonneville V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

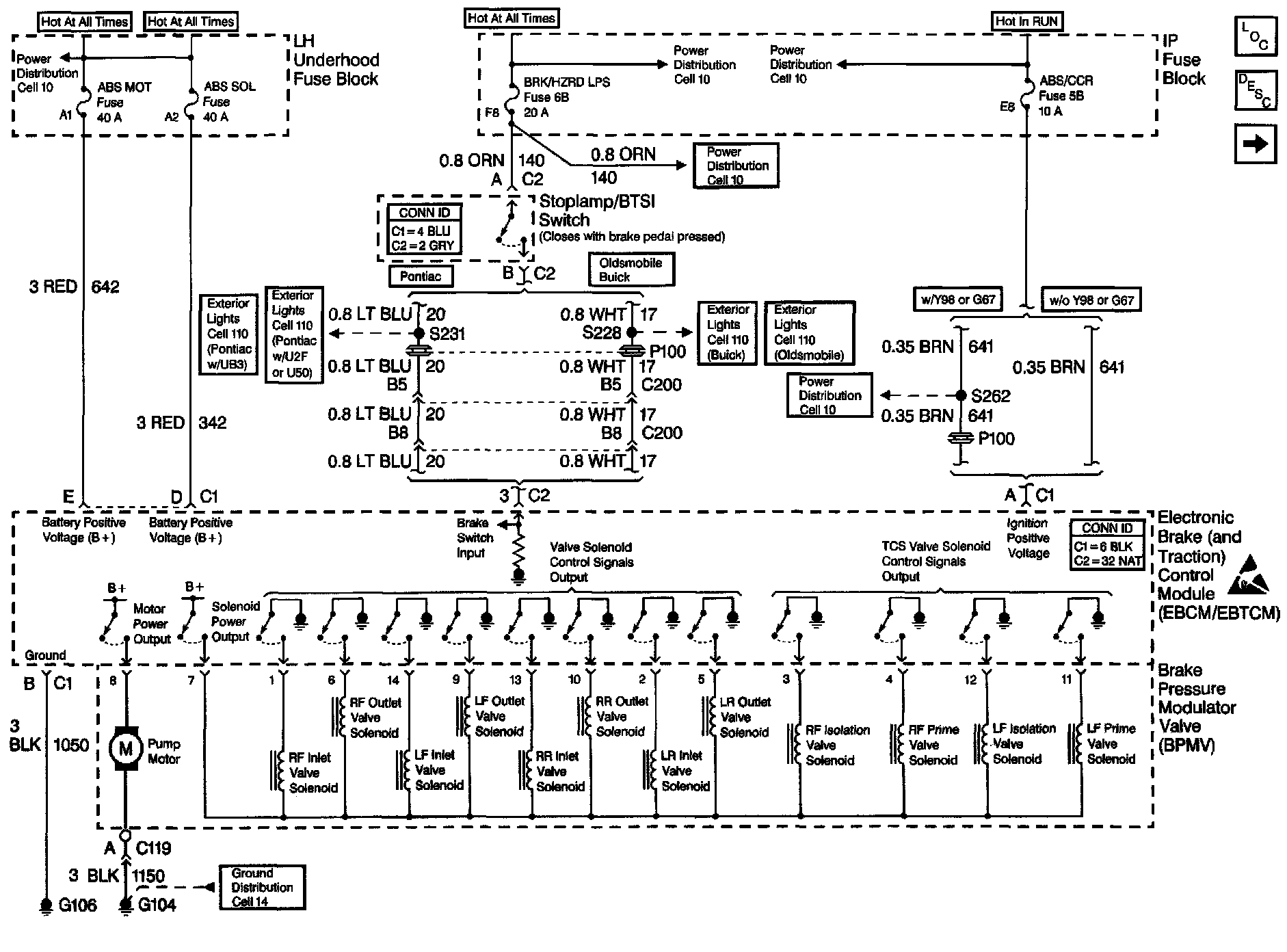

PWR, GND, and Stoplamp/BTSI Switch
PWR, GND, and Stoplamp/BTSI Switch
