C0070

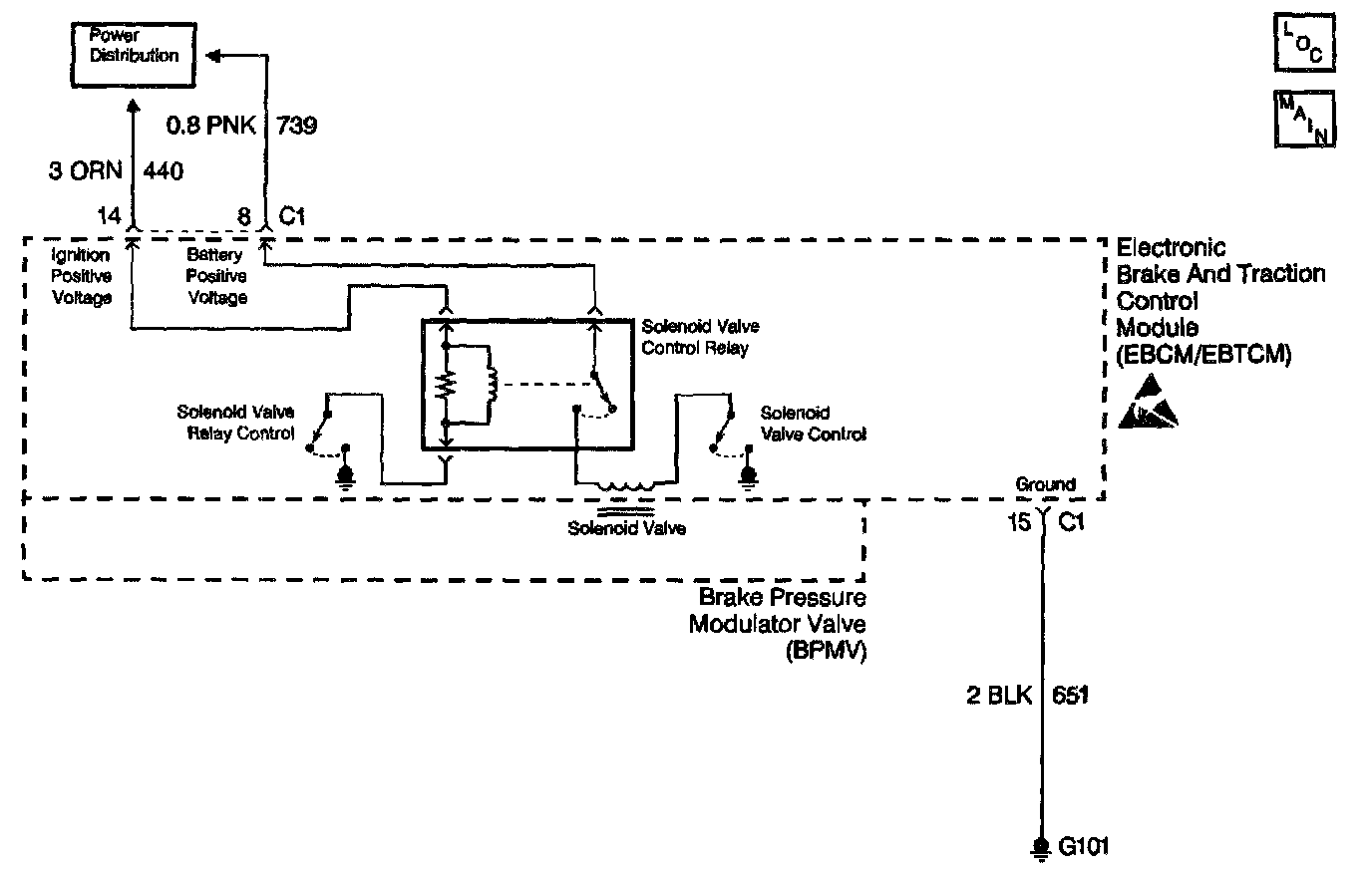

CIRCUIT DESCRIPTION
The Inlet valve solenoid circuits are supplied with battery power when the ignition is in the run position. The Electronic Brake (and Traction) Control Module (EBCM/EBTCM) controls the valve functions by grounding the circuit when necessary.

CONDITIONS FOR SETTING THE DTC
The Electronic Brake (and Traction) Control Module (EBCM/EBTCM) senses a discrepancy such as an open, short to ground, or short to voltage in the circuit.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction Diagnostic Trouble Code (DTC) is stored.
^ Antilock Brake System/Traction Control System (ABS/TCS) disabled.
^ ABS/TCS indicators are turned on.
^ The Red BRAKE Warning indicator turns on.

CONDITIONS FOR CLEARING THE DTC
^ Condition for Diagnostic Trouble Code (DTC) is no longer present and Scan tool clear DTC function is used.
^ 100 ignition cycles pass with no DTC detected.

TEST DESCRIPTION

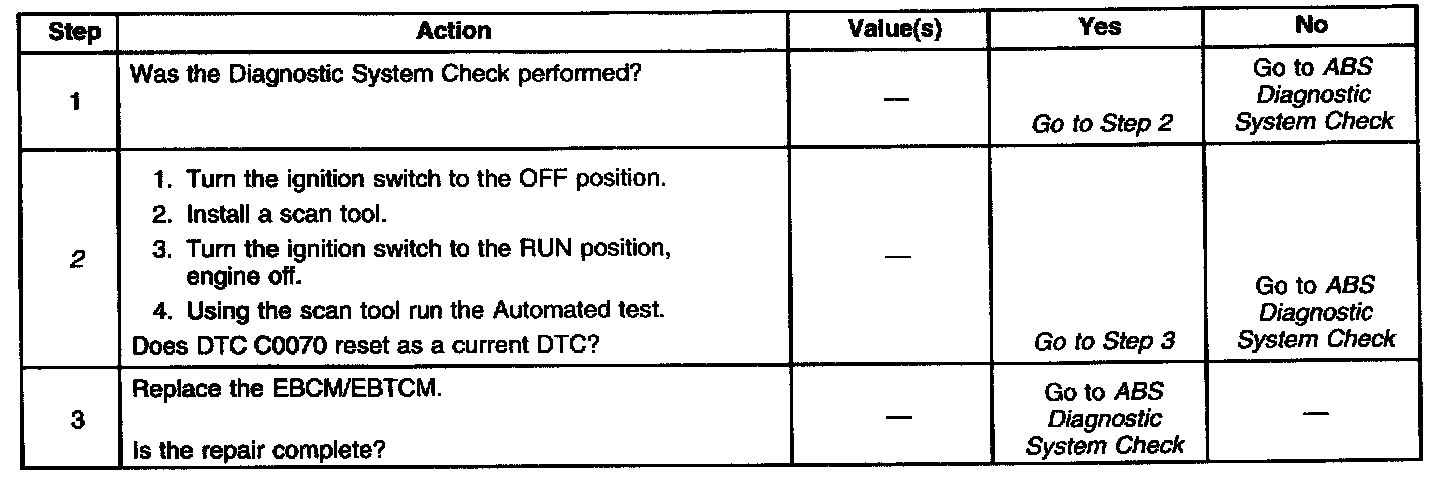

The numbers below refer to step numbers on the Diagnostic Table.
2. This step determines if the Diagnostic Trouble Code (DTC) is current.
