C0161

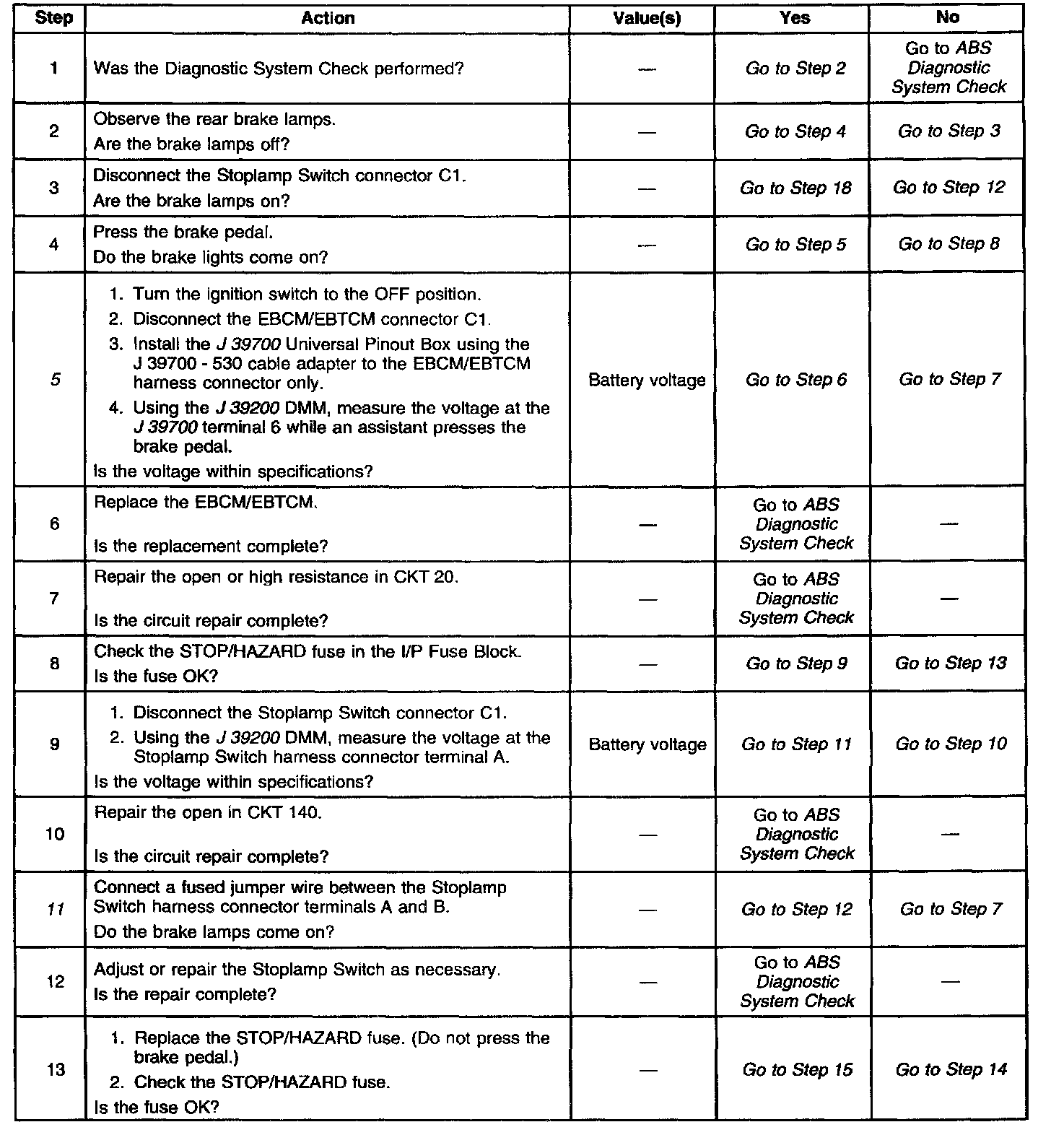

Part 1 Of 2:

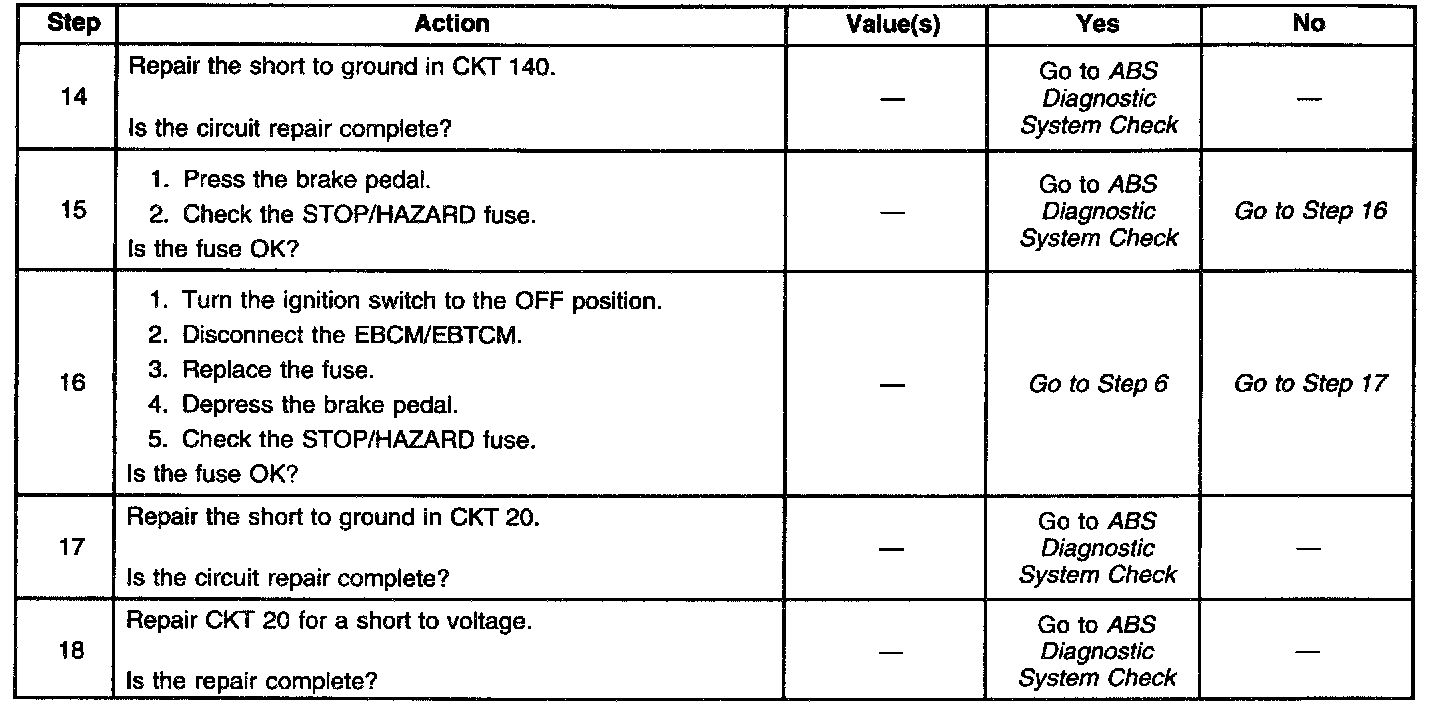

Part 2 Of 2:

CIRCUIT DESCRIPTION
The Stoplamp switch is a normally open switch, when the brake pedal is depressed the Electronic Brake (and Traction) Control Module (EBCM/EBTCM) will sense battery voltage. This allows the EBCM/EBTCM to determine the state of the brake lamps.

CONDITIONS FOR SETTING THE DTC
^ Electronic Brake (and Traction) Control Module (EBCM/EBTCM) detects battery voltage at all times.
^ EBCM/EBTCM never detects battery voltage from CKT 20.
^ Both brake lamps are faulty.

ACTION TAKEN WHEN THE DTC SETS
^ Diagnostic Trouble Code (DTC) C0161 is set.
^ Antilock Brake System (ABS) and Traction Control System (TCS) remains active.

CONDITIONS FOR CLEARING THE DTC
^ The condition responsible for setting the Diagnostic Trouble Code (DTC) no longer exists and the Scan tool Clear DTCs function is used.
^ 100 ignition cycles pass with no DTCs detected.

DIAGNOSTIC AIDS
^ It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.
^ Thoroughly inspect any circuitry that may be causing the complaint for the following conditions:
- Backed out terminals
- Improper mating
- Broken locks
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Physical damage to the wiring harness

^ The following conditions may cause an intermittent malfunction:
- A poor connection
- Rubbed-through wire insulation
- A broken wire inside the insulation

^ If an intermittent malfunction exists refer to Troubleshooting Procedures Cell 4 in Diagnostic Aids for further diagnosis.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
5. This step checks for voltage at the Electronic Brake (and Traction) Control Module (EBCM/EBTCM).
11. This step checks the Stoplamp switch.
