C0239

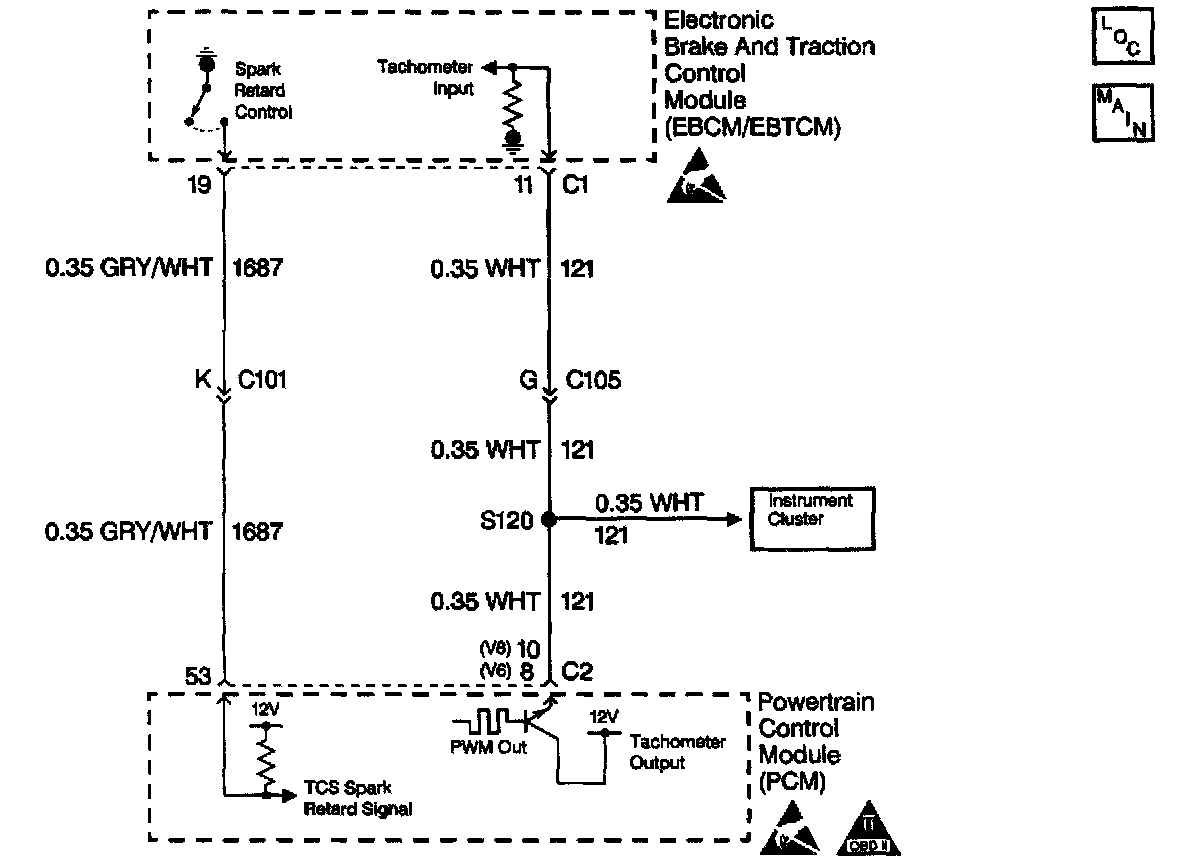

CIRCUIT DESCRIPTION
Spark Retard is simultaneously controlled by the Electronic Brake Traction Control Module (EBTCM) and the Powertrain Control Module (PCM). The PCM supplies a 12 volt pull up voltage. This voltage is monitored by the PCM, the EBTCM requests spark retard by pulling the voltage low.

CONDITIONS FOR SETTING THE DTC
Diagnostic Trouble Code (DTC) C0239 can be set anytime when the Electronic Brake Traction Control Module (EBTCM) senses a short to ground, a short to battery voltage, or an open in CKT 1687.

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction Diagnostic Trouble Code (DTC) is stored.
^ The Antilock Brake System/Traction Control System (ABS/TCS) is disabled.
^ The Red BRAKE Warning indicator turns on.

CONDITIONS FOR CLEARING THE DTC
^ Condition for Diagnostic Trouble Code (DTC) is no longer present and Scan tool clear DTC function is used.
^ 100 ignition cycles have passed with no DTCs detected.

DIAGNOSTIC AIDS
^ It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.
^ If an intermittent malfunction exists refer to General Electrical Diagnosis Cell 4 in Diagnostic Aids.

TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
2. This step checks for the pull up voltage from the Powertrain Control Module (PCM).
3. This step checks for a short to voltage.
6. This step checks for a short to ground.
