DTC 035

DTC 25/35 Security Indicator Status:

CIRCUIT DESCRIPTION
The Body Control Module (BCM) provides an output on circuit 1376 to the security LED lamp on the instrument cluster while the driver's seatbelt is unfastened.

CONDITIONS FOR SETTING THE DTC
DTC 25 is set when the BCM detects the security LED at connector C3 terminal C16 when the ignition is turned to the RUN position.

DTC 35 is set when the BCM detects the security LED at any time since the codes were last cleared.

ACTION TAKEN WHEN THE DTC SETS
DTC 35 is required for content theft deterrent operation. The security LED must be detected for the alarm to tunction.

TEST DESCRIPTION

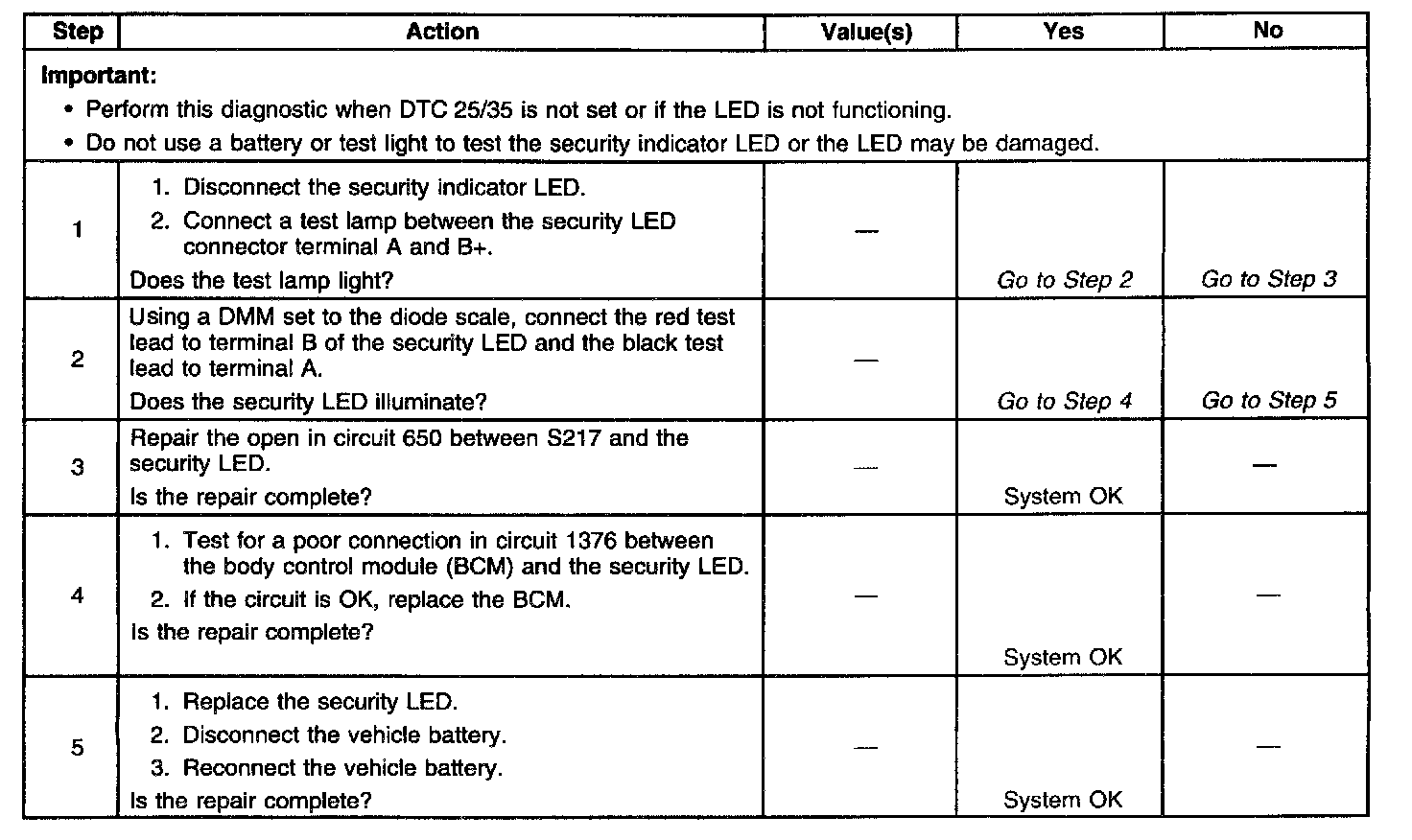

The numbers below refer to the step numbers on the diagnostic table.
1. This step tests the security LED ground circuit 650.
2. This step tests the security LED.
4. This step tests circuit 1376 for an open or poor connection.
