Radio Replacement

REMOVAL PROCEDURE



1. Unsnap the instrument panel accessory trim plate.

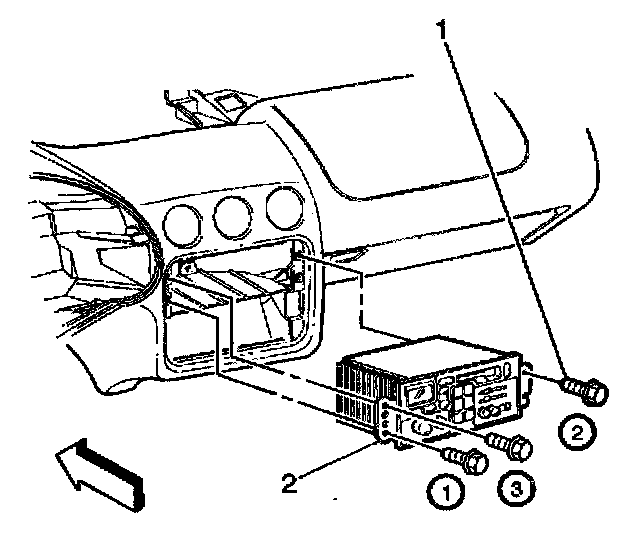

2. Remove the radio bracket bolts (1).
3. Slide the radio (2) out from the instrument panel.

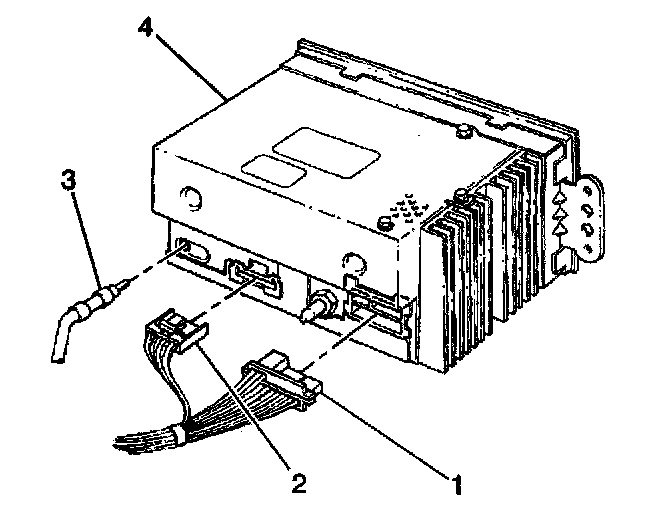

4. Remove the following components from the radio (4):
^ The I/P wiring harness connector (1)
^ The remote CD connector (2)
^ The antenna cable (3)
5. Remove the radio (4) from the vehicle.

INSTALLATION PROCEDURE



1. Install the radio (4) to the vehicle.
2. Install the following components to the radio (4):
^ The antenna cable (3)
^ The remote CD connector (2) The I/P wiring harness connector (1)




3. Slide the radio (2) into the instrument panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

4. Install the radio bracket bolts (1) in the following sequence:
4.1. Lower left
4.2. Upper right
4.3. Upper left

Tighten
Tighten the radio bracket bolts (1) to 1.8 N.m (16 lb in).




5. Install the instrument panel accessory trim plate.
