Home >> Pontiac >> 1999 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> PCM

PCM

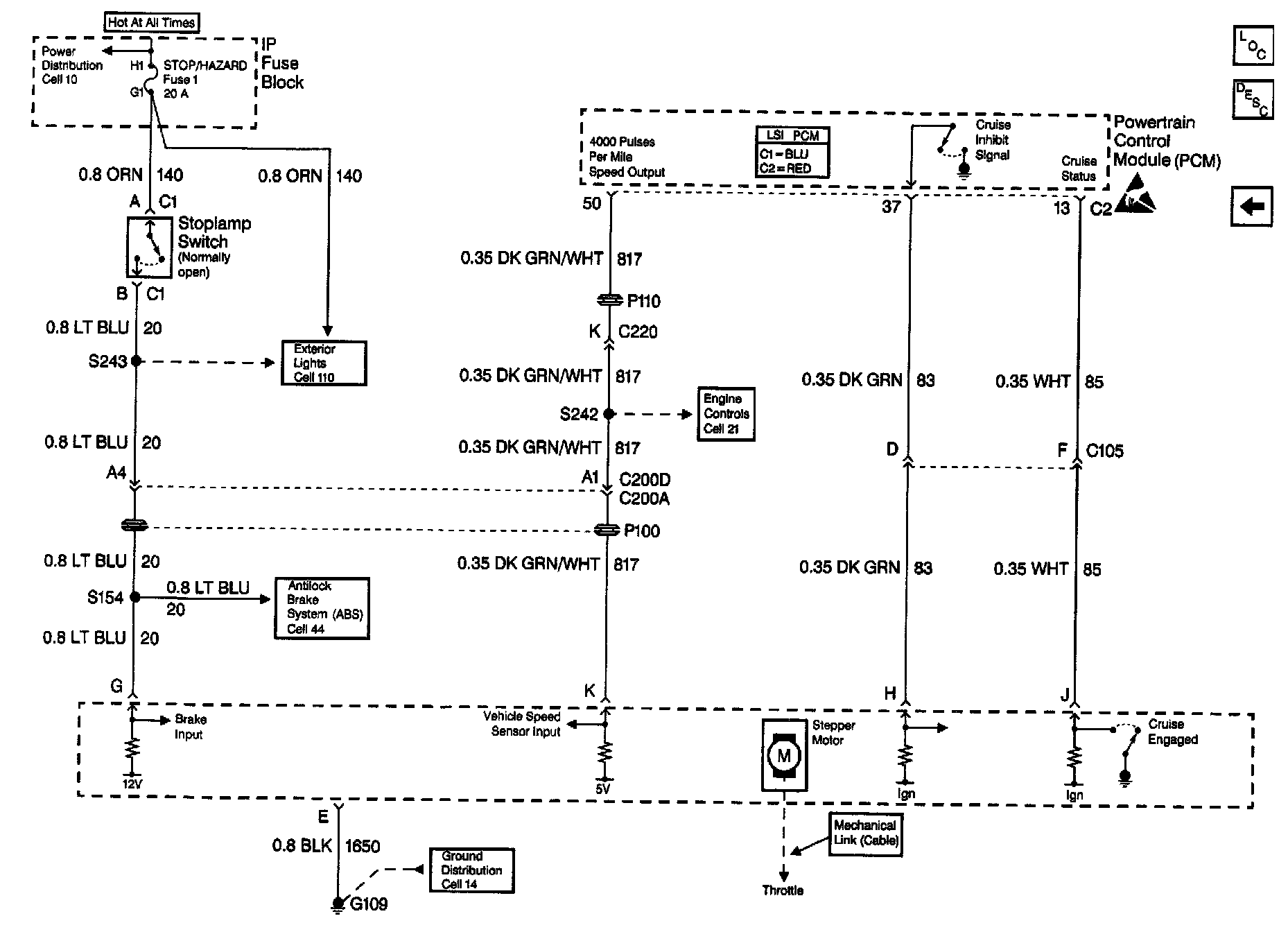

Cruise Control Schematics: PCM:
