Cruise Control: Service and Repair

REMOVAL PROCEDURE




CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

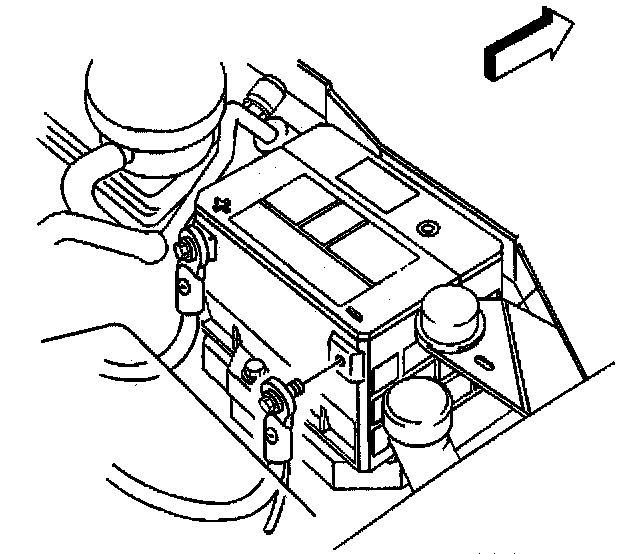

1. Disconnect the negative battery cable.

IMPORTANT: Position the windshield wiper switch in the OFF position.




2. Remove the steering column access cover.

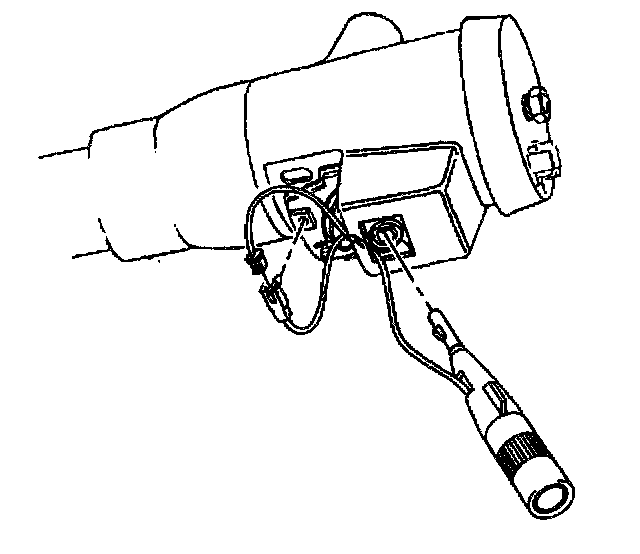

3. Disconnect the multifunction lever electrical connector.

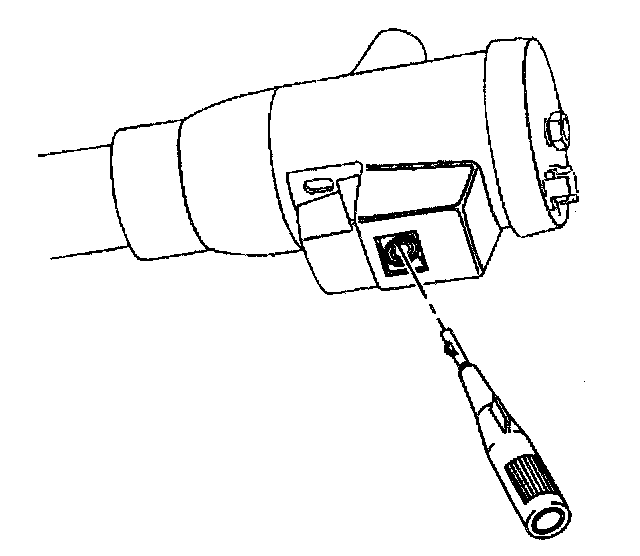

4. Remove the multitunction lever.

INSTALLATION PROCEDURE



1. Install the multitunction lever.




2. Connect the multifunction lever electrical connector.




3. Install the steering column access cover.




4. Connect the negative battery cable.
