Home >> Pontiac >> 1999 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> I/P Harness

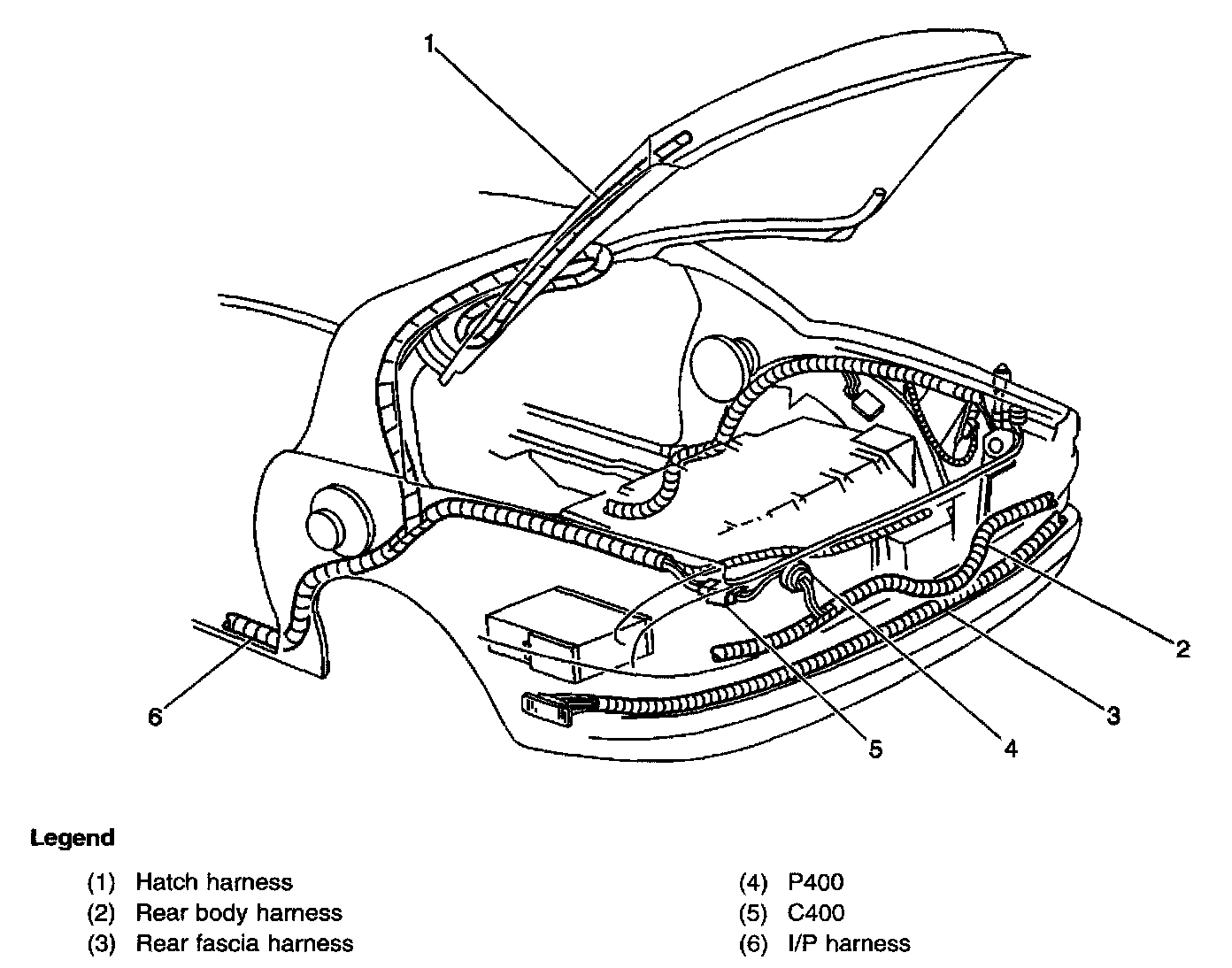

I/P Harness

Rear Compartment (Coupe):
