Instrument Panel Wiring Harness
Instrument Panel Wiring Harness

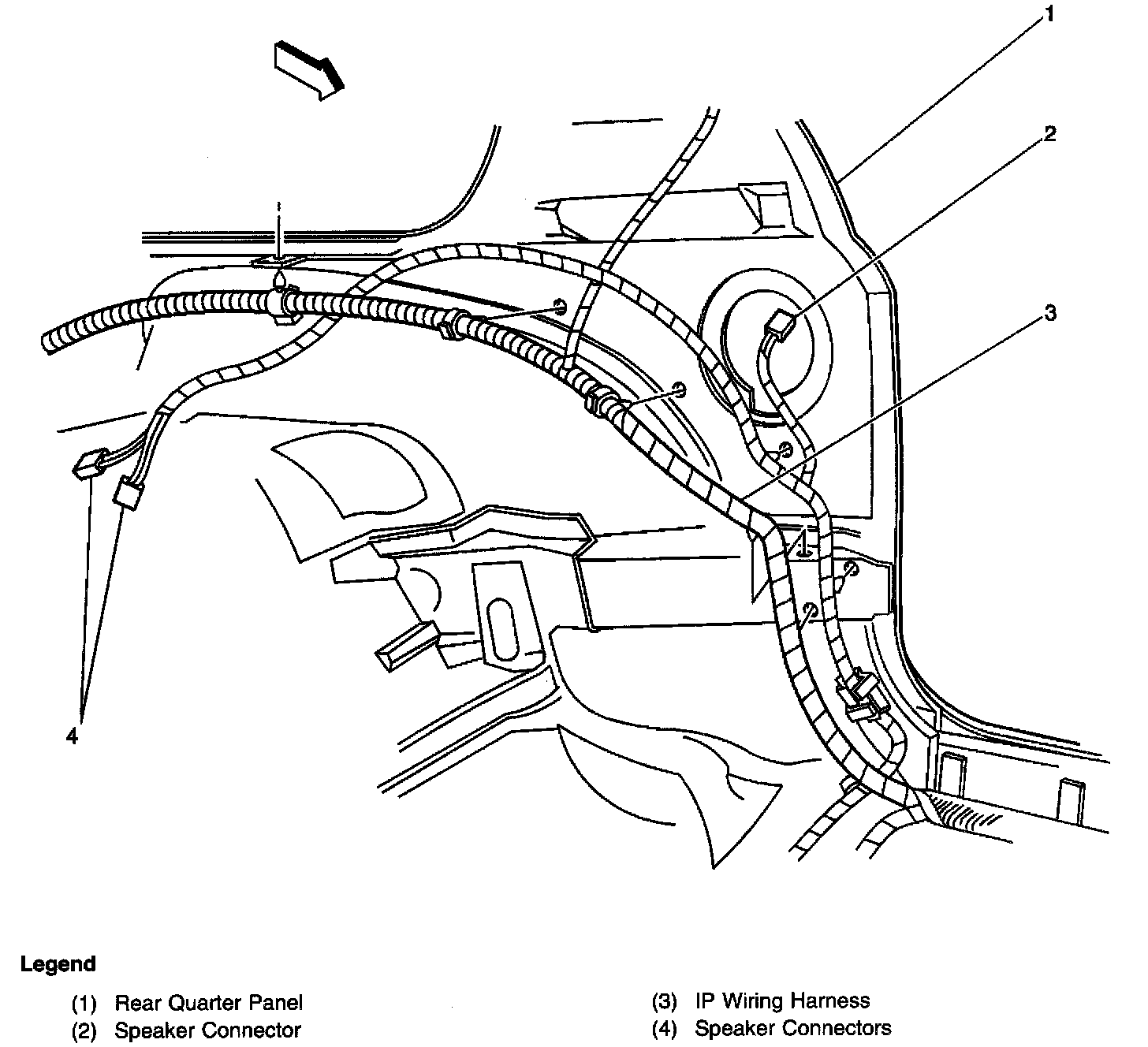

Locations View:
Image # 1

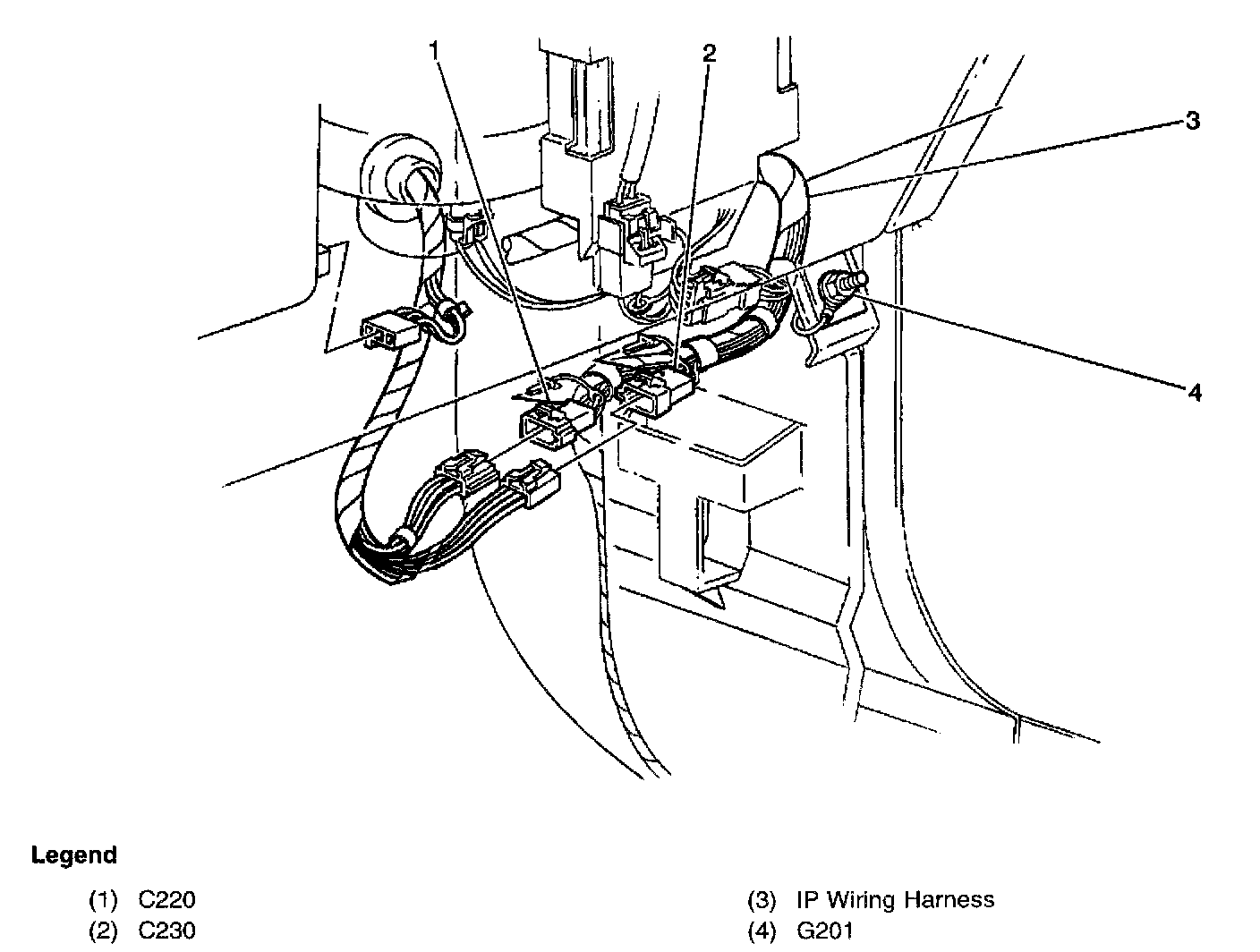

Locations View:
Image # 2

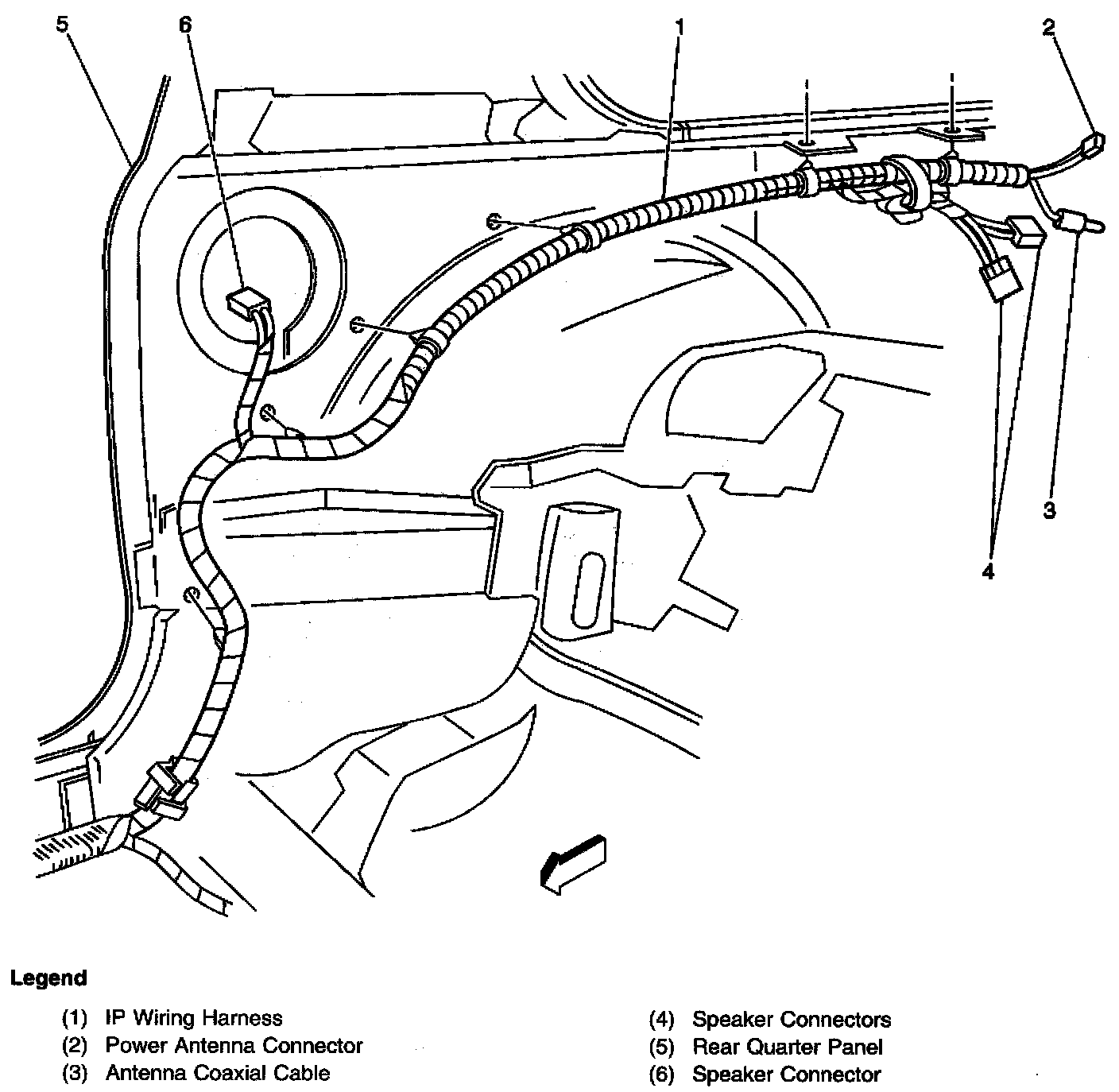

Locations View:
Image # 3
Right Side Of The I/P:
Image # 4
Locations View:
Image # 5
